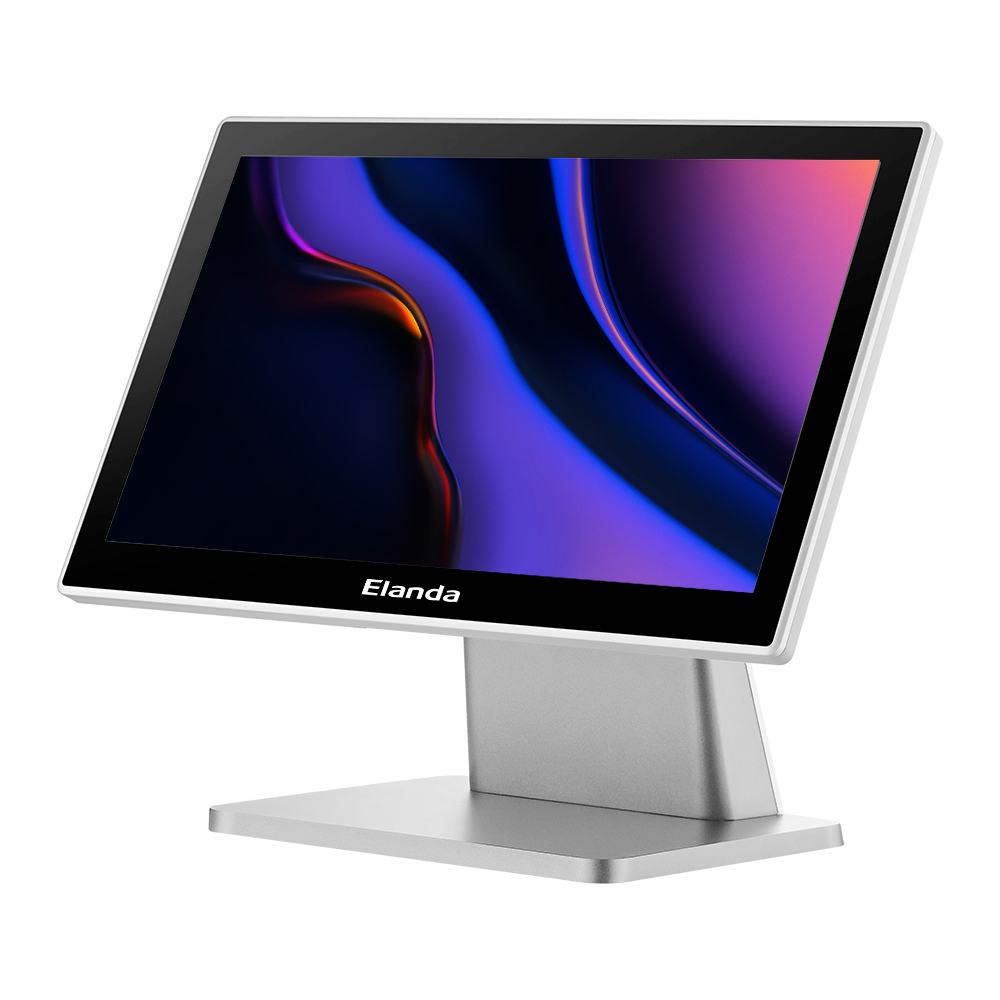

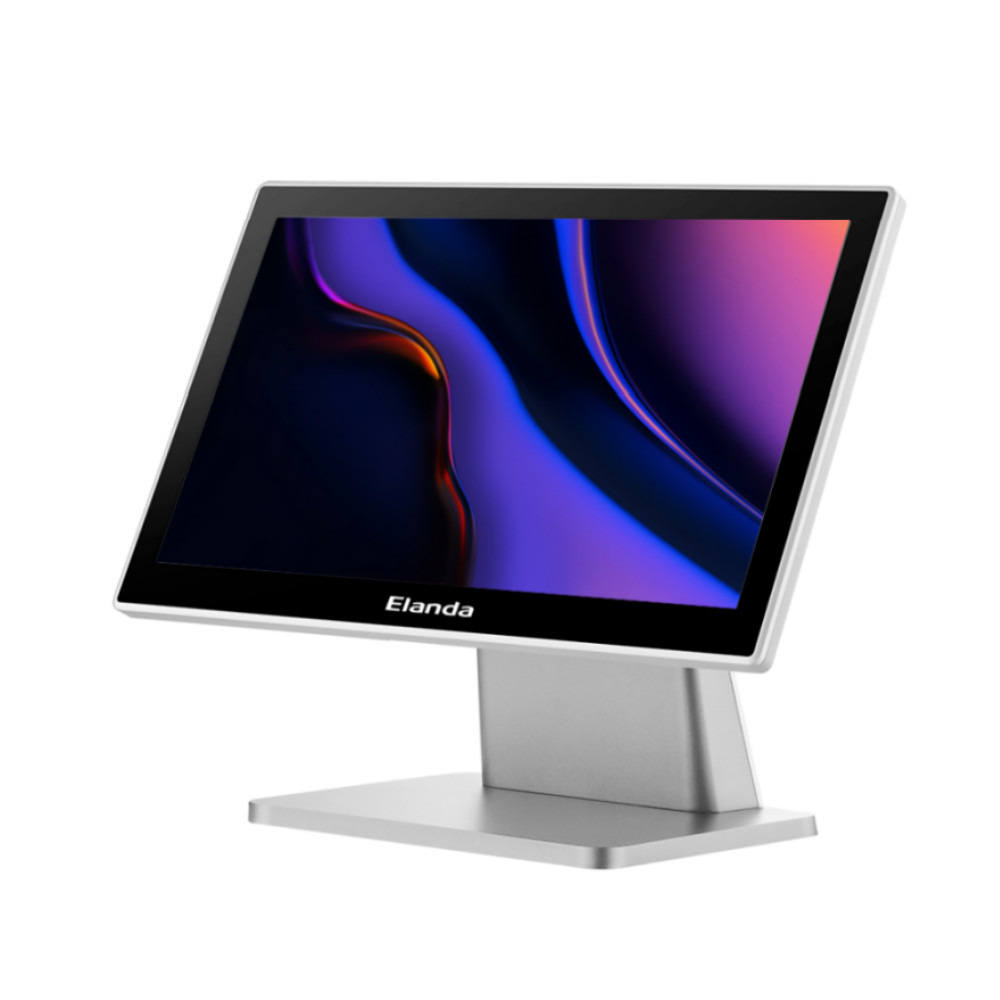

ATHENA Series A100
11.6” POS Terminal
- Compact Sleek Design
- Fan-free design
- QR Code Scanner and 3.5″ Display optional
Compact Size but Powerful Performance.
11.6 inch Space-saving Android POS Solution with QR Code Scanner Built-in
- Android 11
- Compact and space-saving
- 11.6" widescreen LCD with PCT

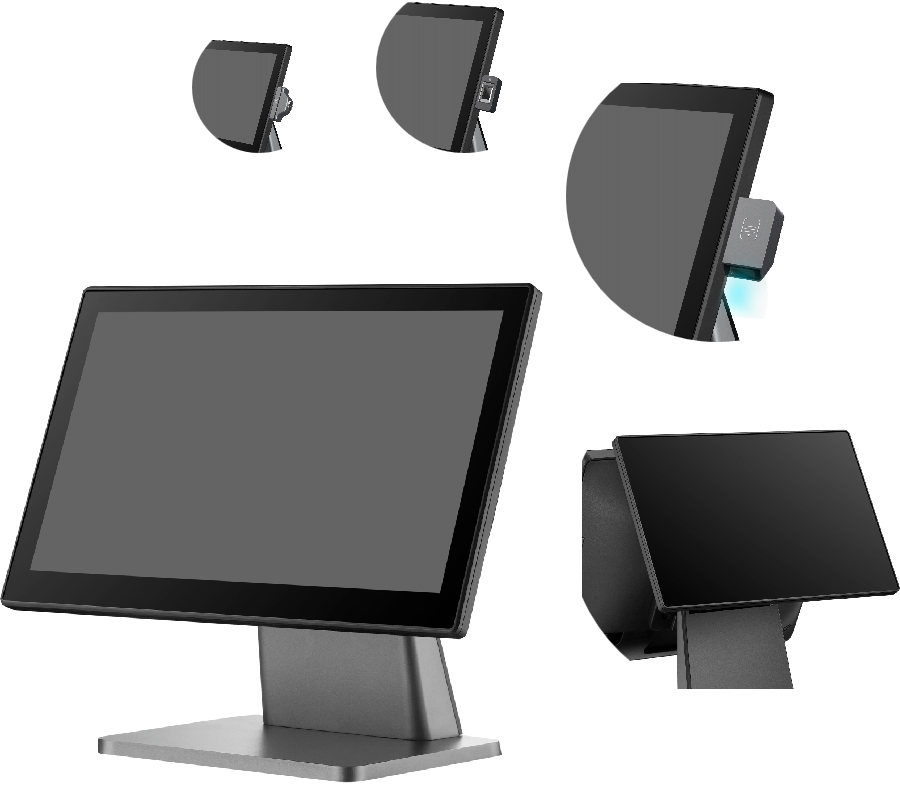

- Optional 3.5" 2nd display and 2D QR code scanner
- WlFl, Bluetooth and speaker default
| Model Number | A100 | ||
| CPU Support | Rockchip3566, Cortex-A55, up to 1.8 GHz | Rockchip3568, Cortex-A55, up to 2.0GHz | |
| System Memory | DDR4, 4G | ||
| Storage | eMMC 32G | ||
| LCD | Size | 11.6" TFT LCD Panel | |
| Brightness | 220cd/m2 (Typ.) | ||
| Resolution | 1366 x 768 | ||
| Touch Screen | True-flat Projected Capacitive Touch | ||
| Tilt Angle | 0 ~ 60 degree | ||
| External I/O Port | USB | 4 x USB 2.0 | |
| Serial Port | N/A | ||
| Cash Drawer Port | 1 x Cash Drawer Port (RJ12) | ||
| LAN | 1 x LAN (10/100Mb) | ||
| Audio | N/A | ||
| DC-IN | 1 x 4Pins DC In | ||
| Reboot | 1 x Uboot | ||
| Power Switch | 1 x Power Switch | ||
| Speaker | 1 x 2W Speaker (Optional) | ||
| WiFi & BT | WiFi 802.11b/g/n/BT4.0(Onbaord) | ||
| Power | External Power Adapter,12V-3A/36W | ||
| EMC Safety | CE, FCC, UKCA, ROHS | ||
| Environment | Operating Temperature | 0°C ~ 35°C | |
| Storage Temperature | -15°C ~ 60°C | ||
| Operating Humidity | 20% - 85% RH Non Condensing | ||
| Storage Humidity | 20% - 85% RH Non Condensing | ||
| OS Support | Android 11.0 | ||

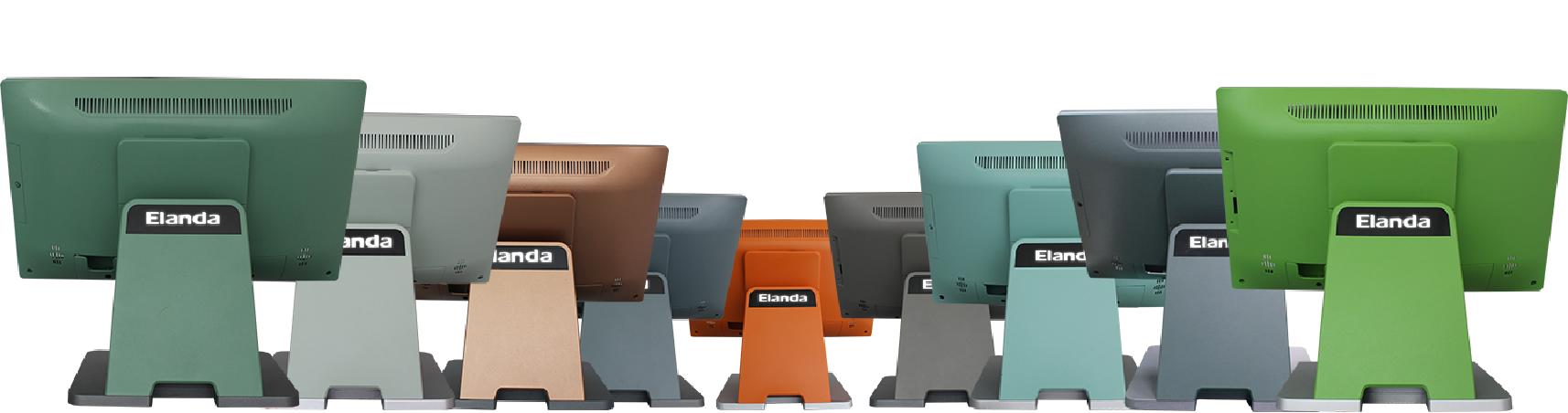

| Color | Silver & Grey (White & Black Optional) | ||
| Dimension (W x D x H) | 285mm x 180mm x 290mm | ||
| Weight (N.W.) | 3.2Kg | ||
| Optional | Scanner | 2D QR Code Scanner | |
| 2nd Display | N/A | 3.5" (320 x 480) | |
