Restaurant

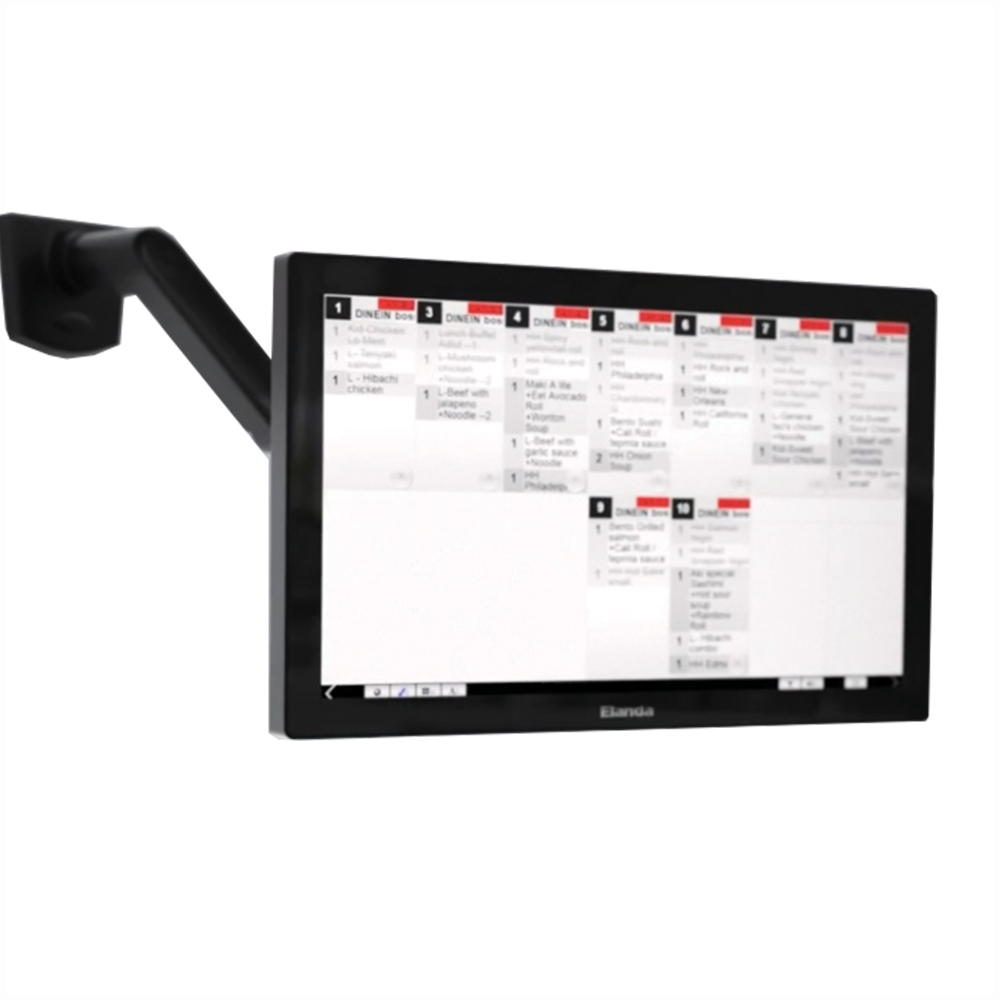

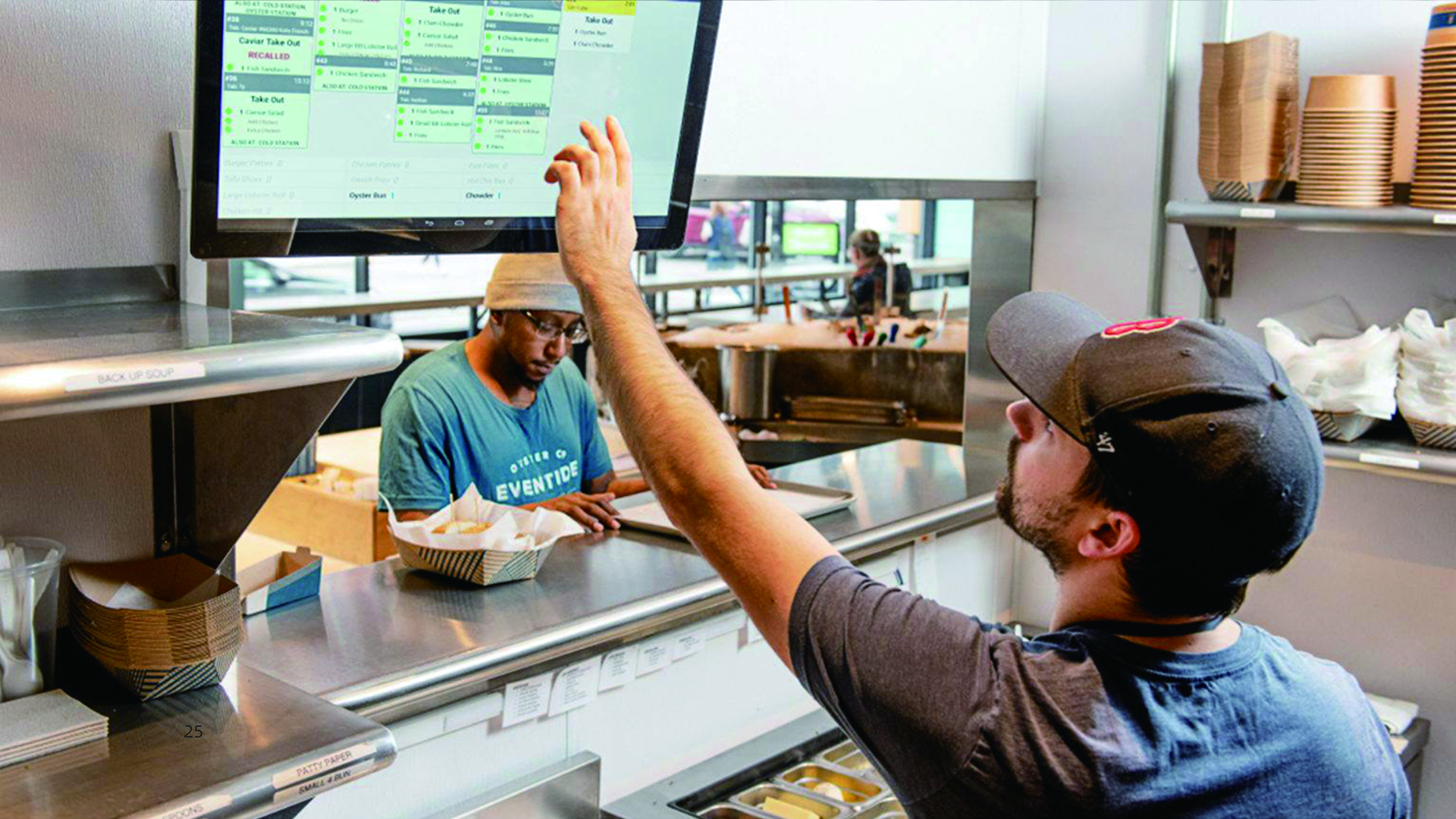

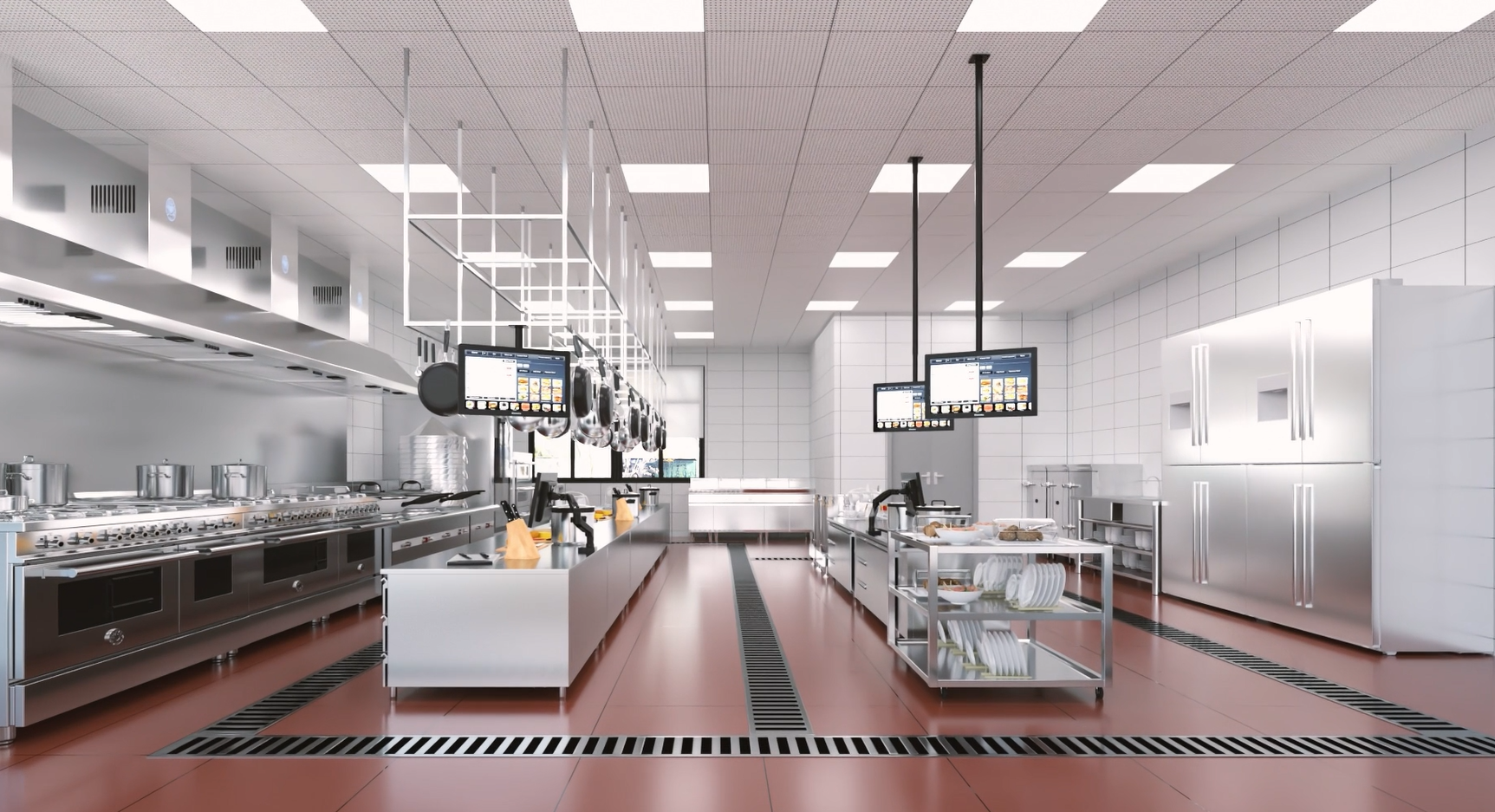

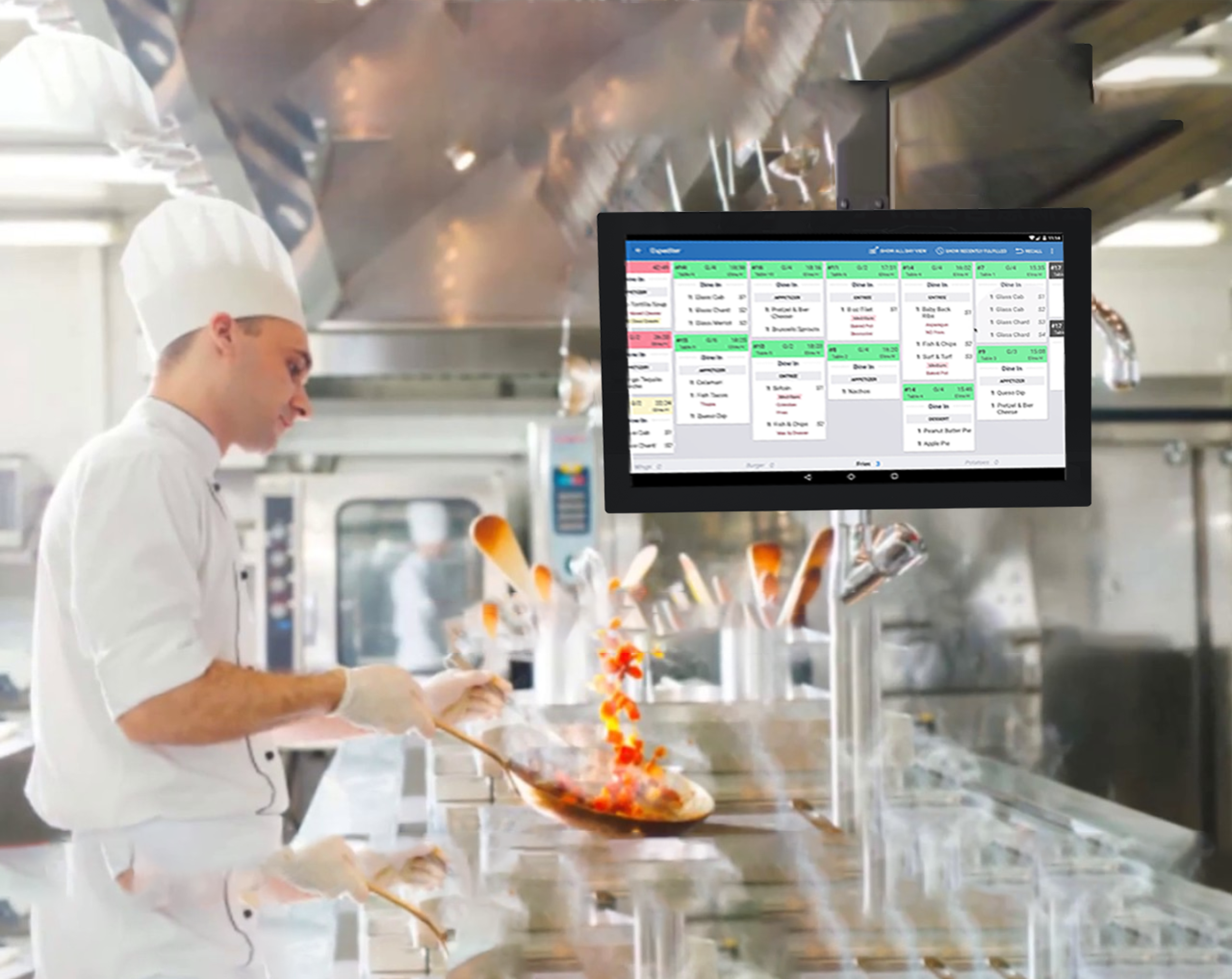

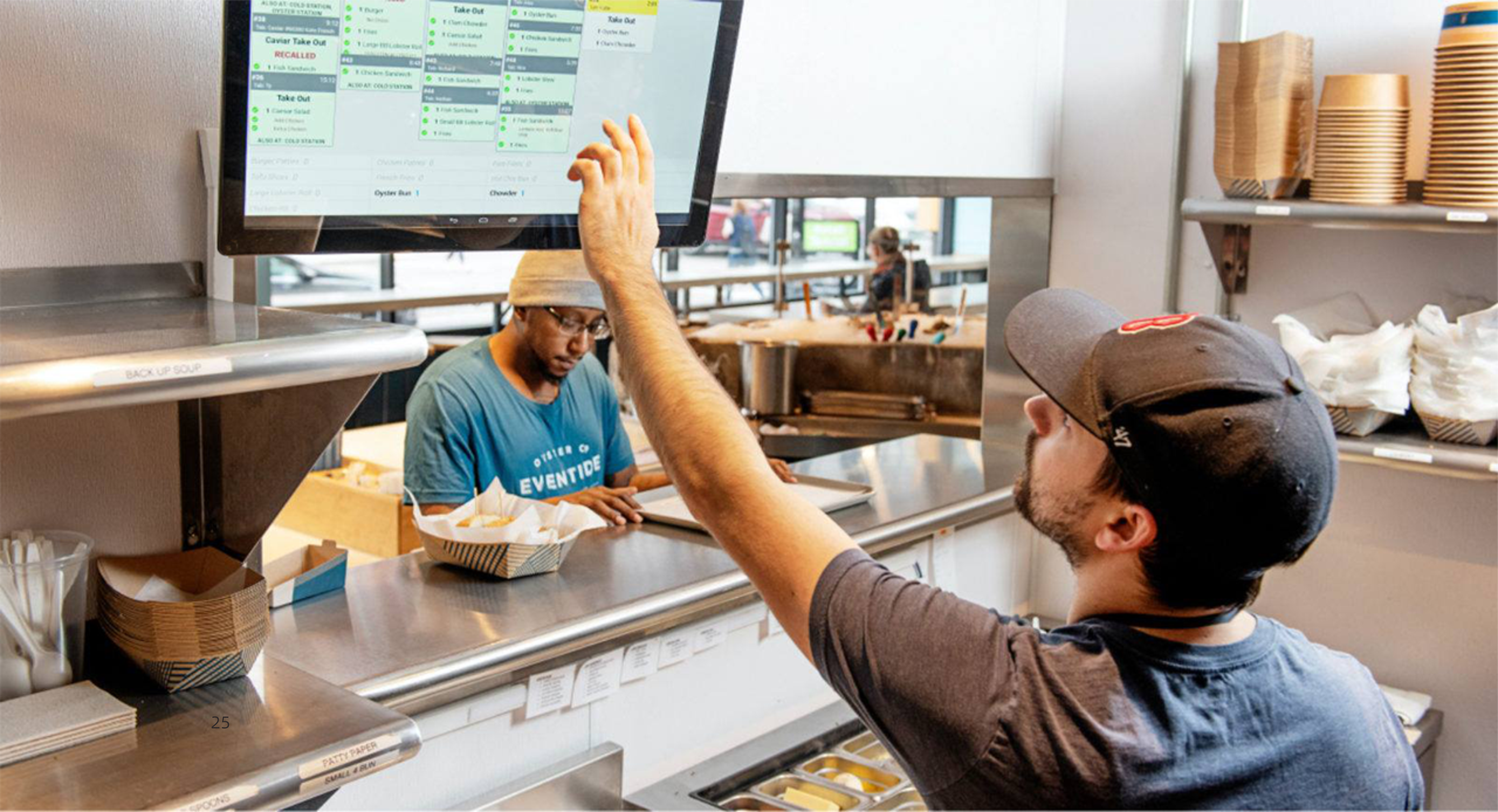

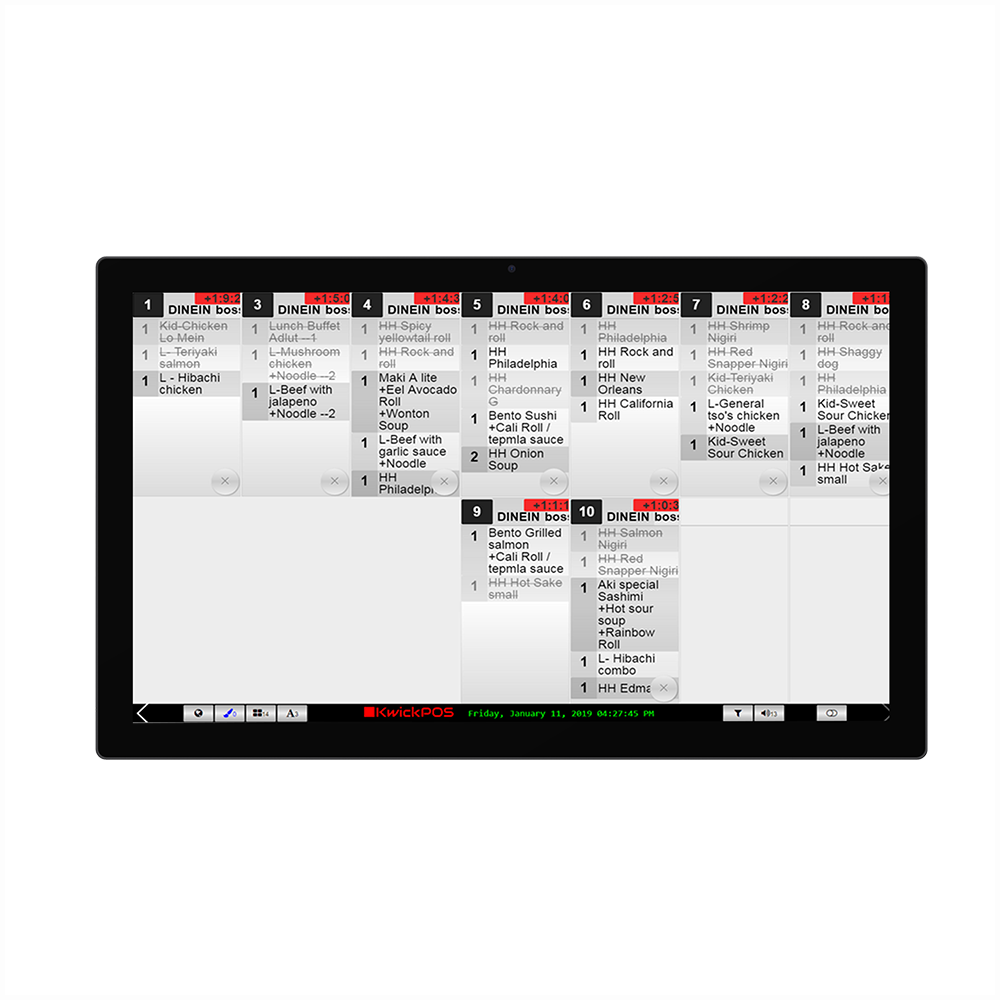

The Kitchen Display System (KDS) improves order accuracy and speed by displaying real-time orders directly to kitchen staff, reducing communication errors and ensuring faster service, particularly during busy meal times.

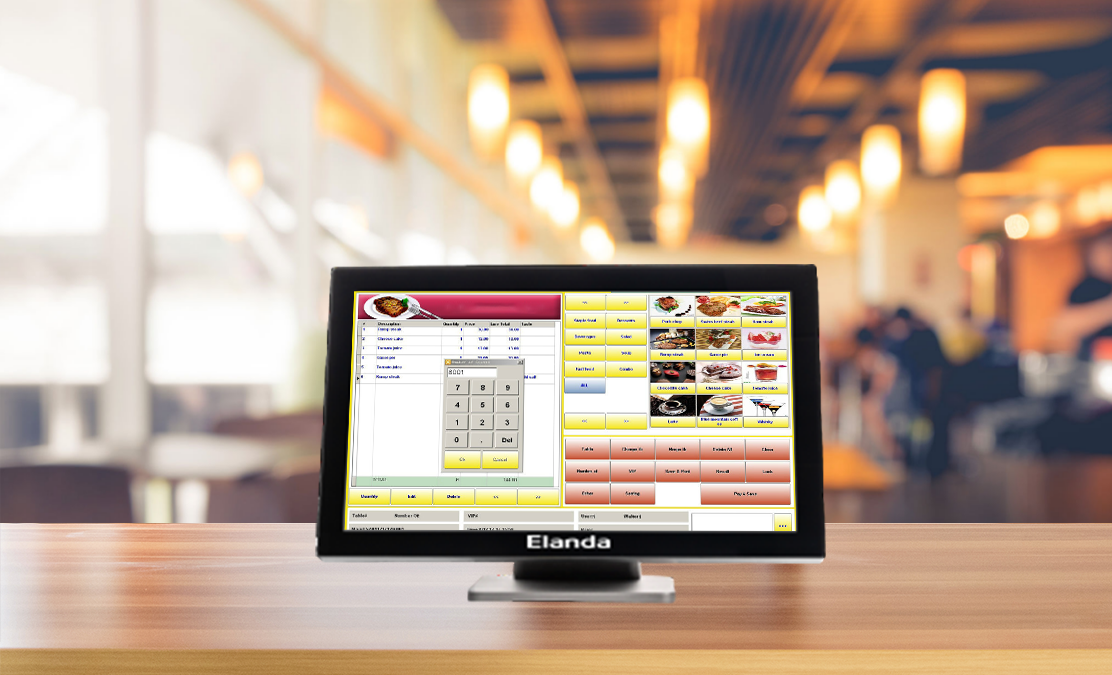

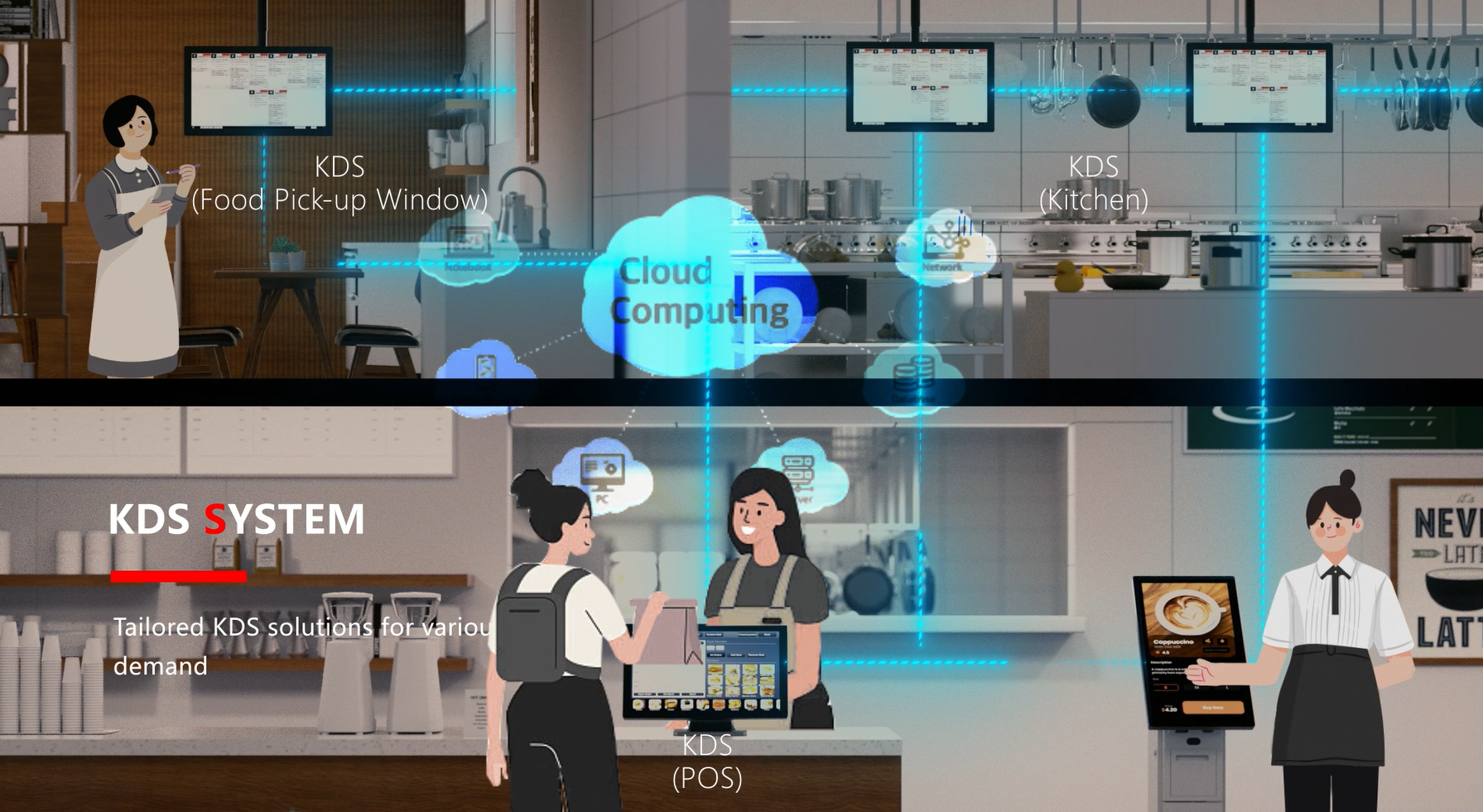

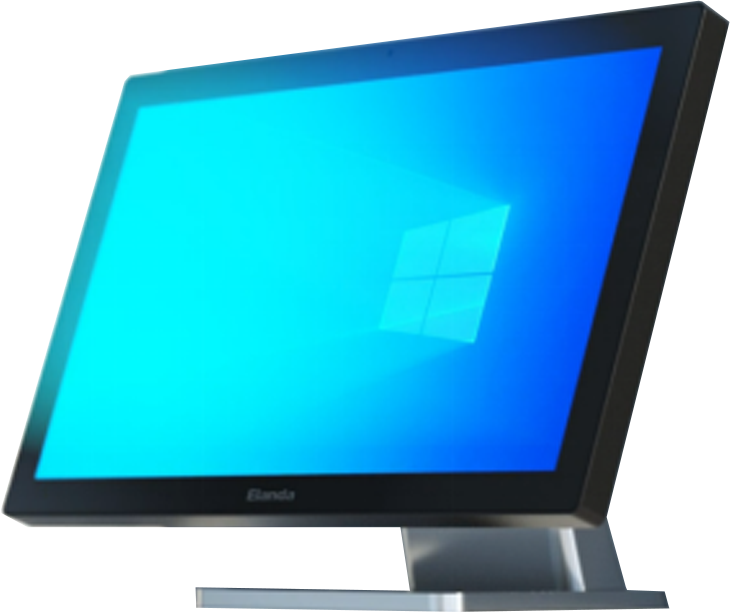

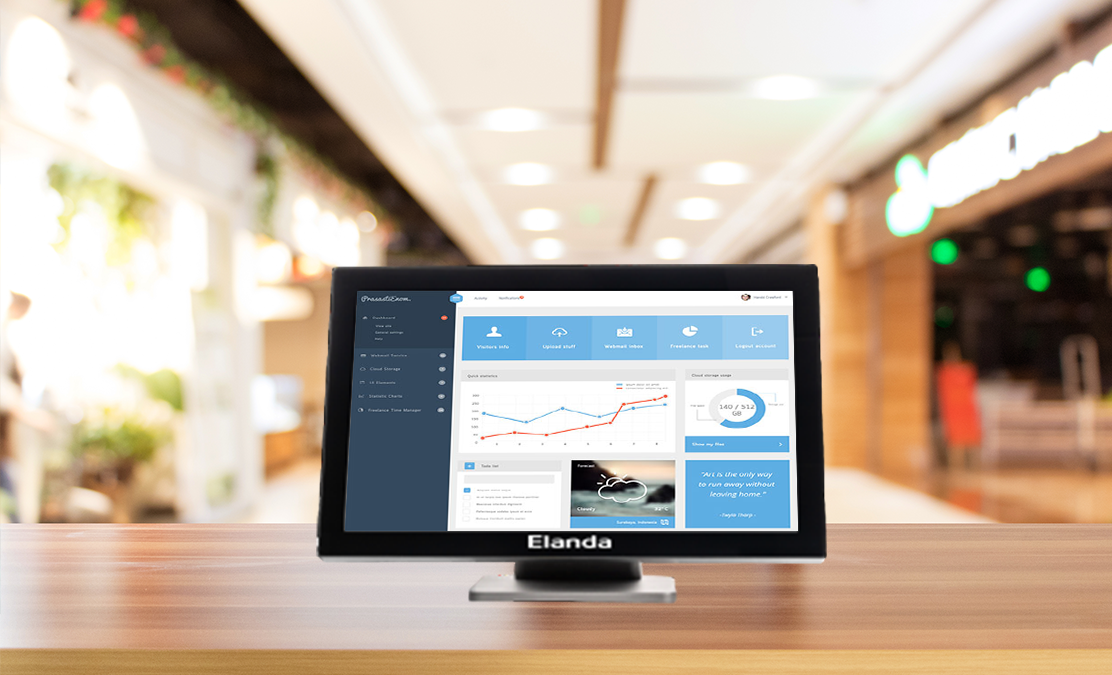

Restaurant Ordering & Checkout
Can be used as POS, it instantly transmits orders from the front desk to the kitchen, reducing errors and improving order accuracy. It also updates the status of each dish in real time, speeding up the checkout process and ensuring a smooth workflow.

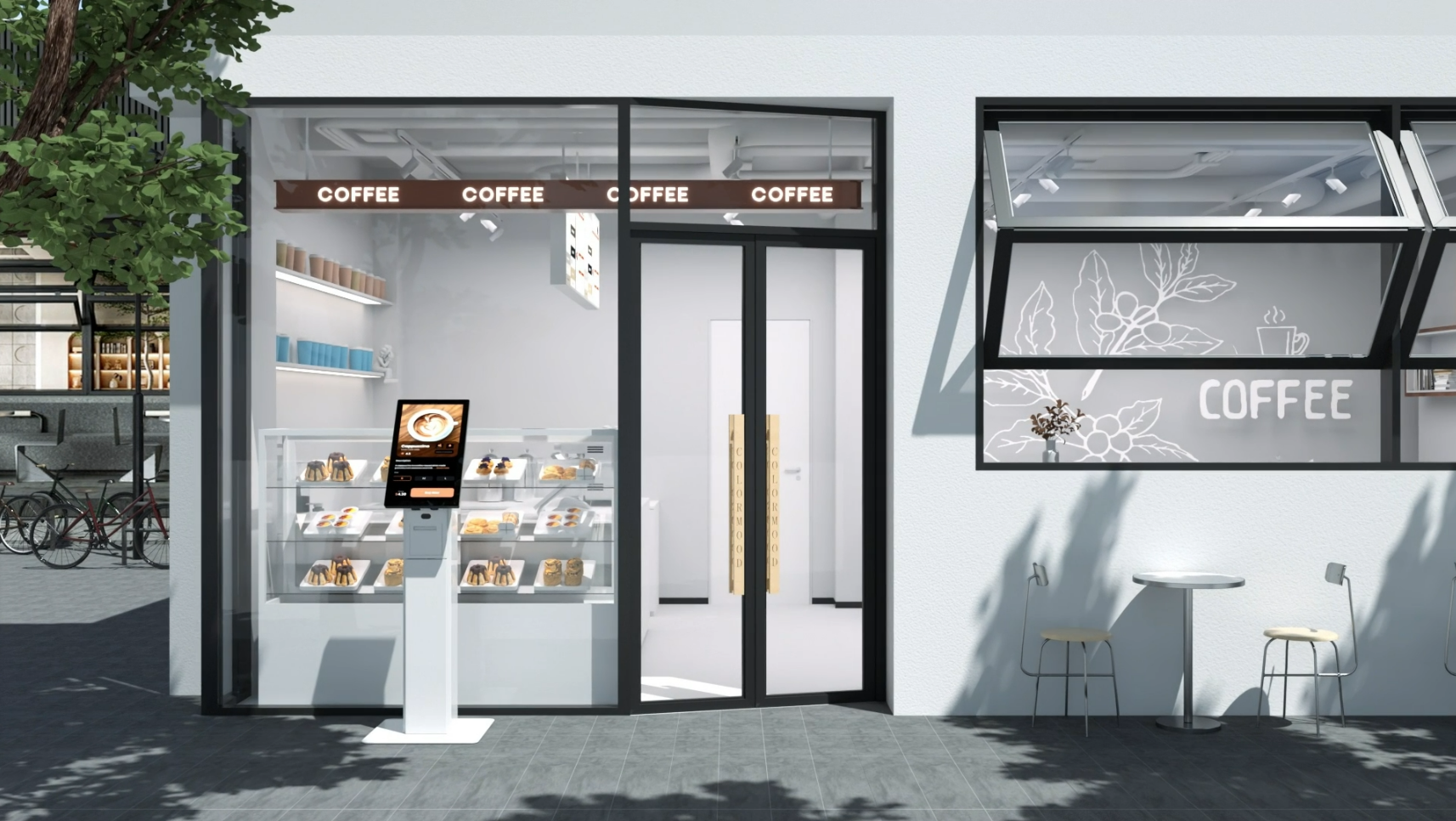

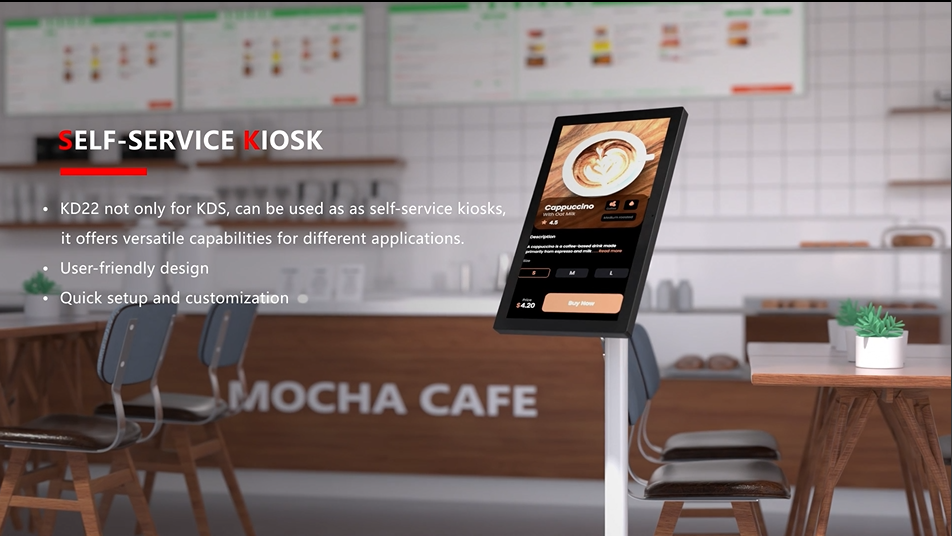

Self-Ordering in Cafes & Coffee Shops
Customers can place their own orders directly through the kiosk, which then feeds the order into the KDS, speeding up order processing and minimizing human error, while enhancing customer experience.

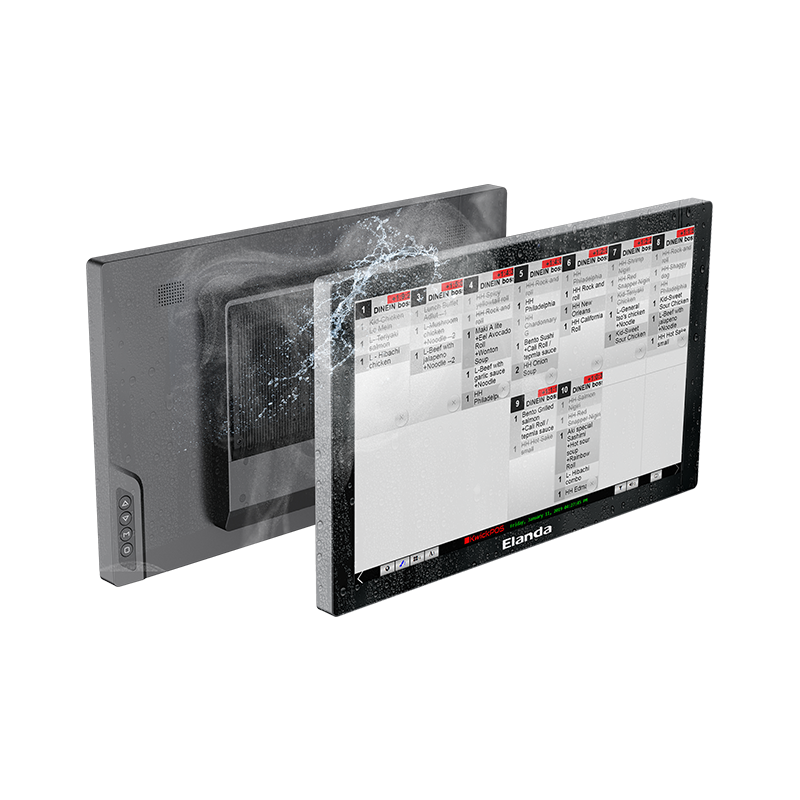

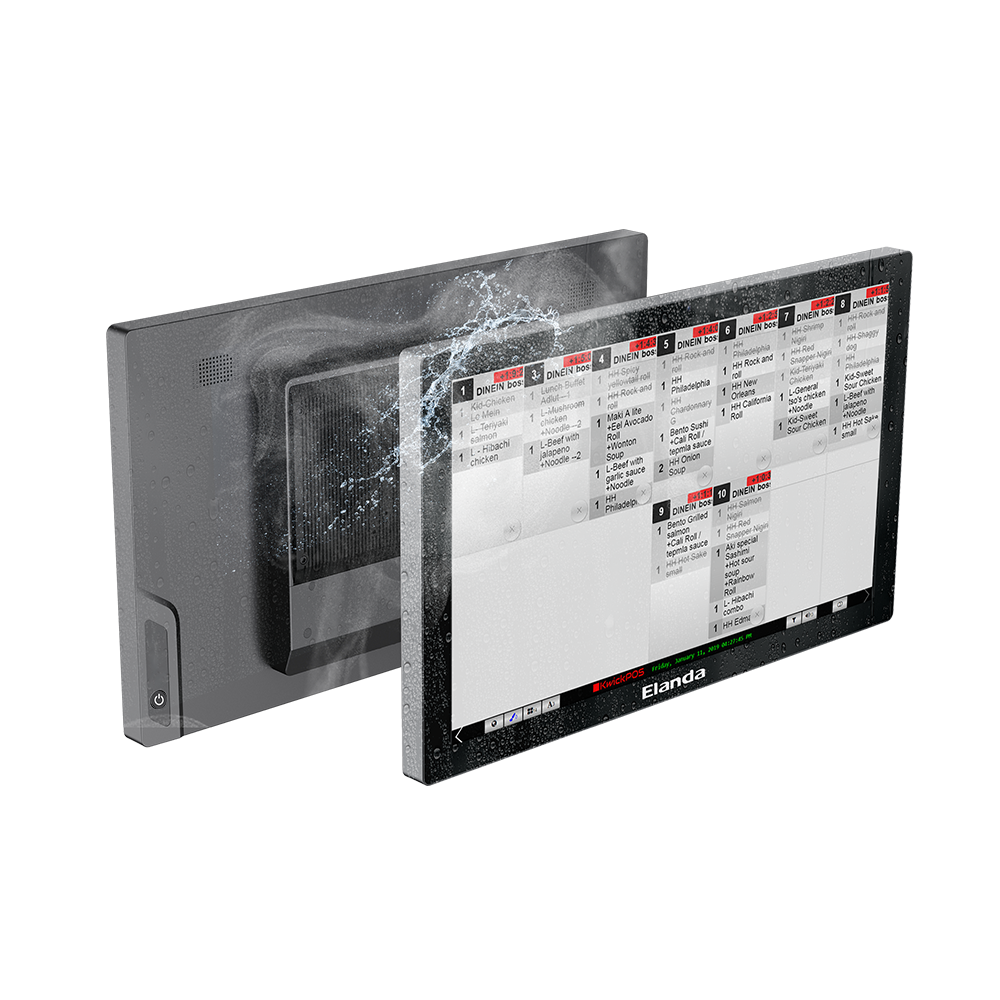

360° Comprehensive Dust-prevent and Waterproof
Full set IP65-rated
From spills and stains to high heat and humidity, the KD22 accomplishes heavy tasks efficiently and performs stably in tough kitchen environments.

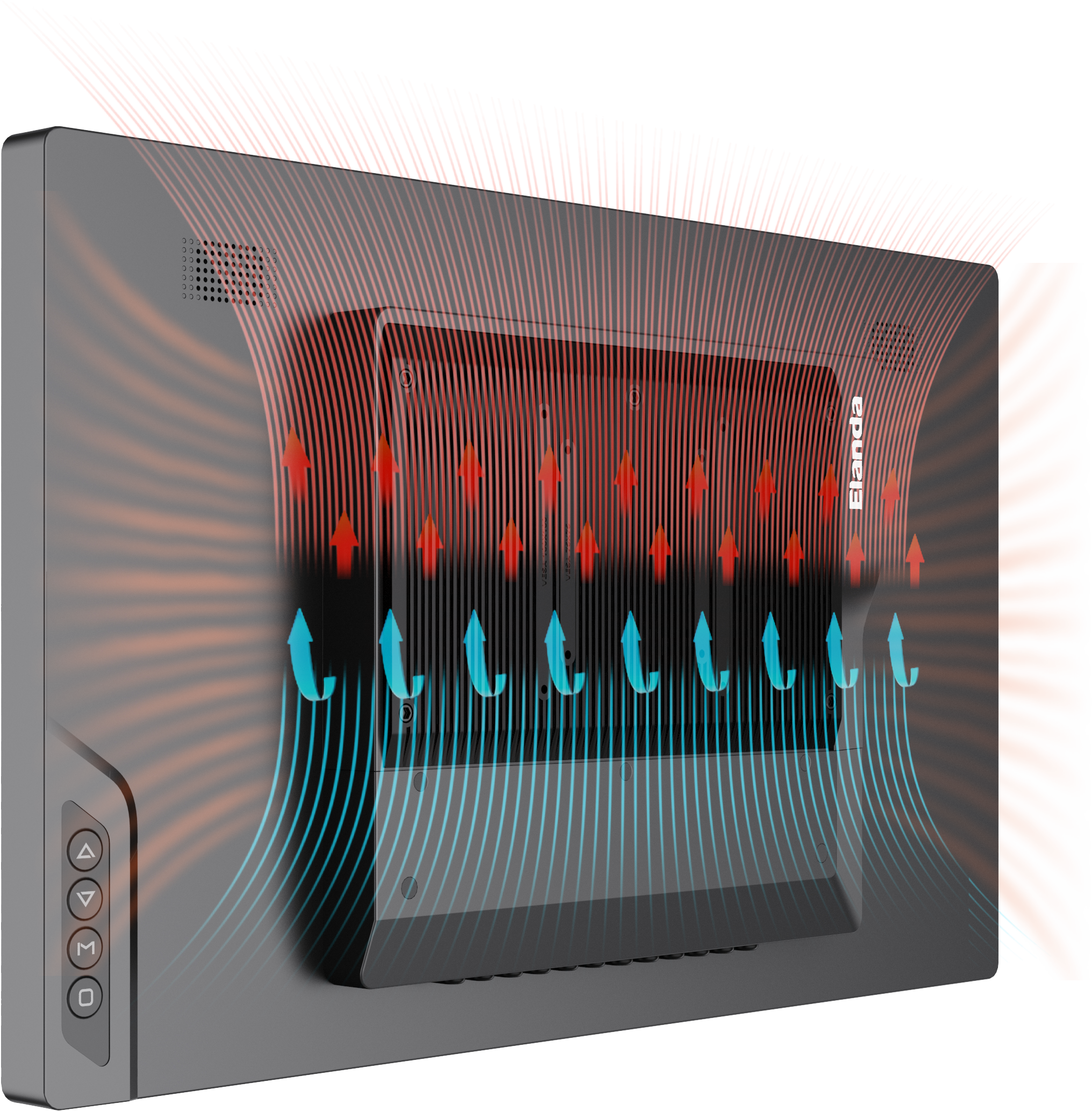

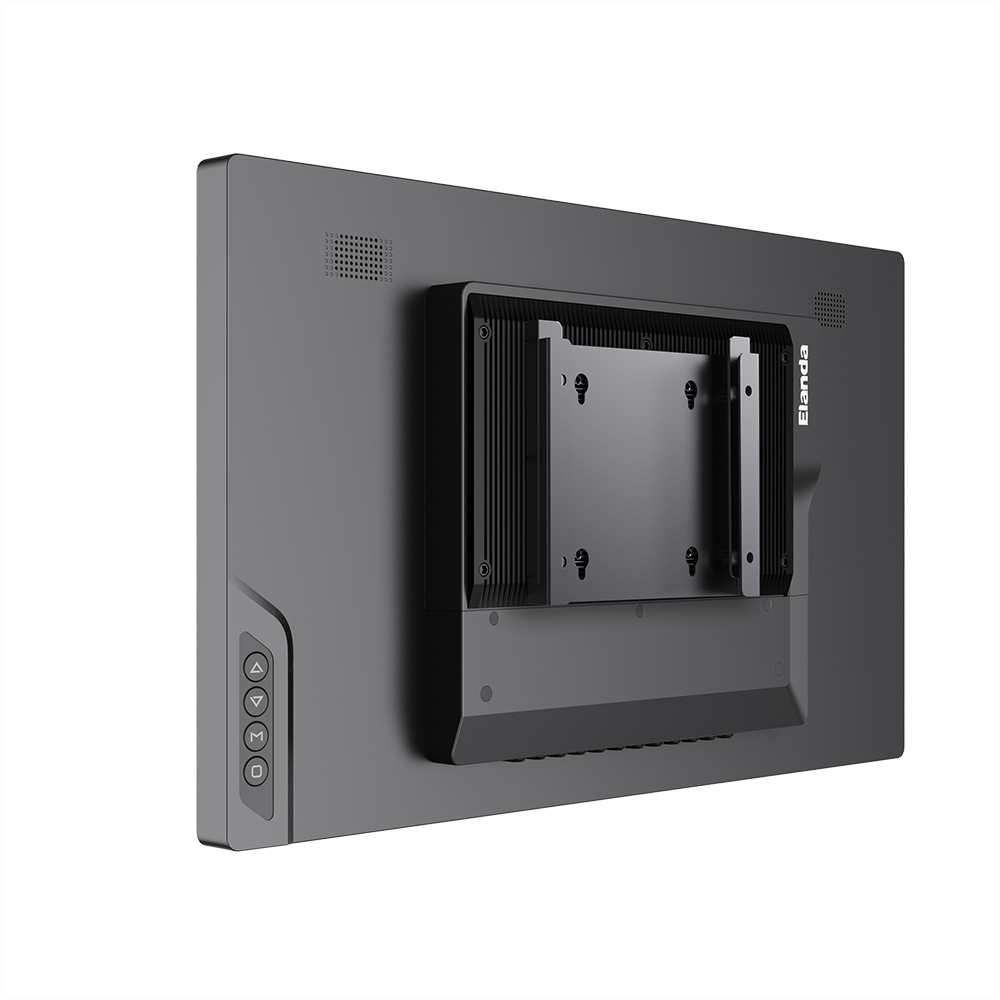

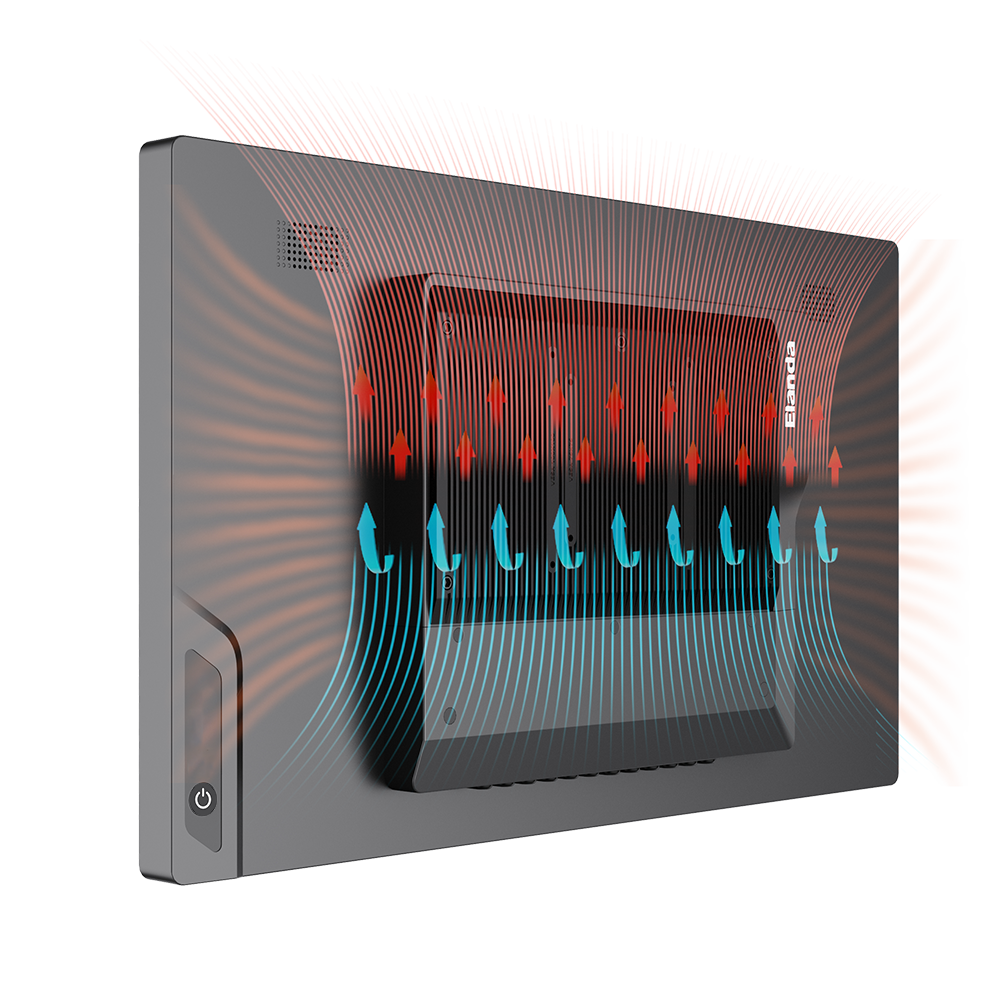

Efficient Cooling Technology
Die-cast aluminum housing combined with graphene coating ensures exceptional heat dissipation, enhancing cooling performance and extending the device’s lifespan.

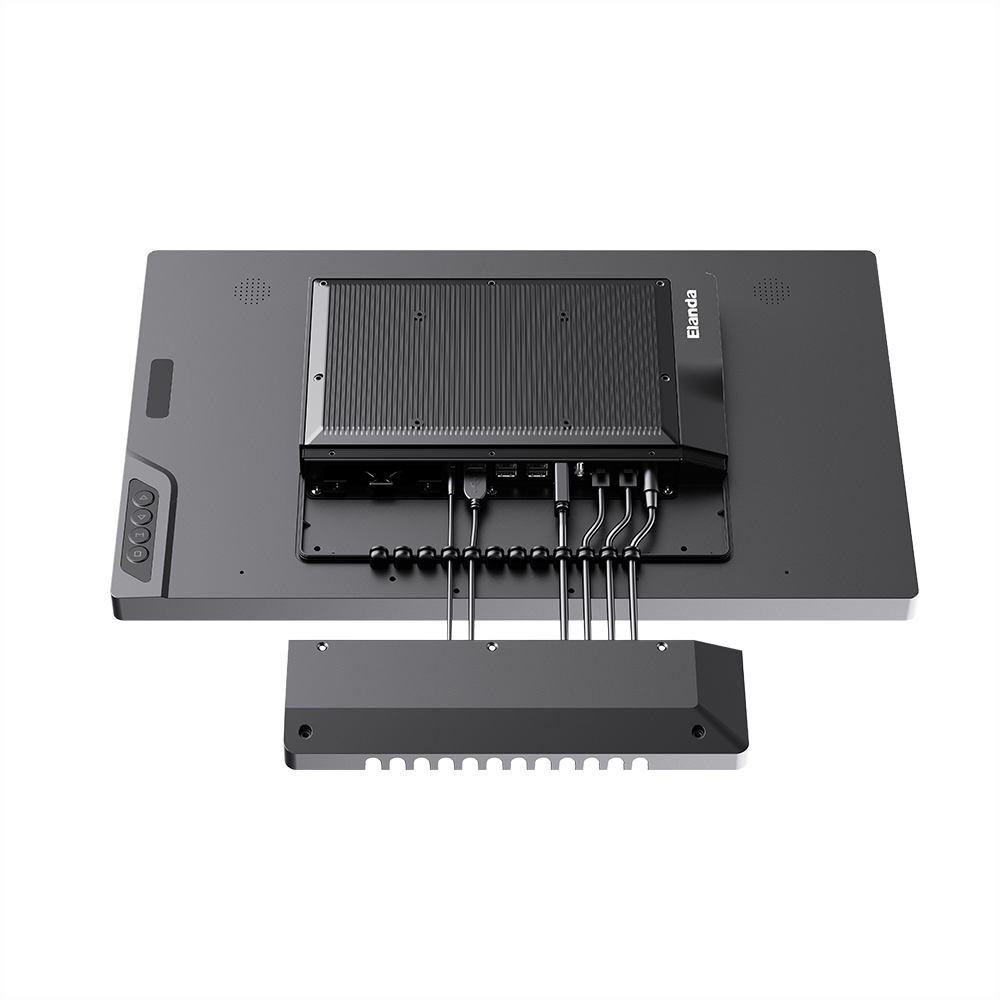

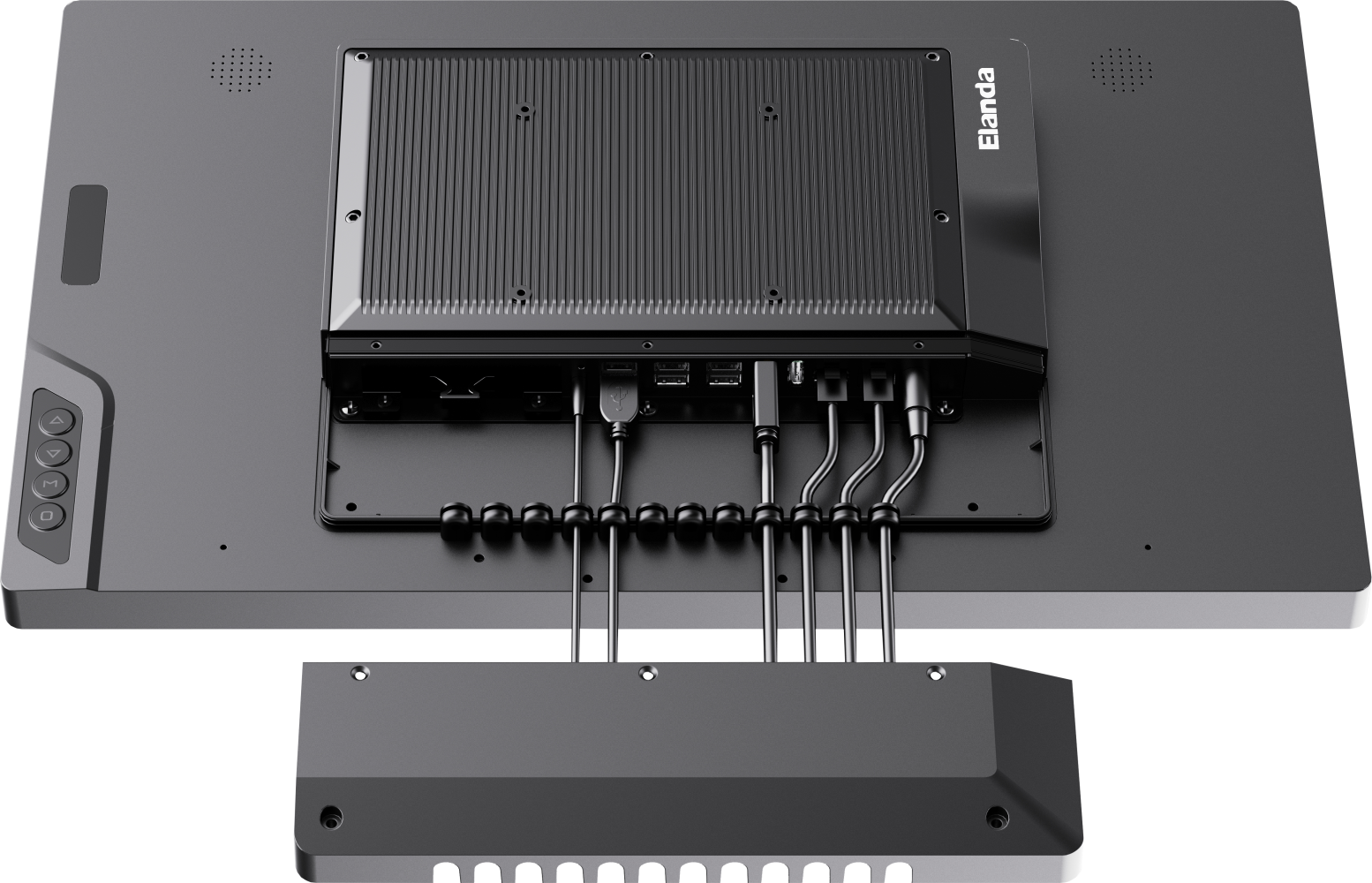

Sealed single-cable design
Water-proof rubber plug ensures durability and waterproof protection.

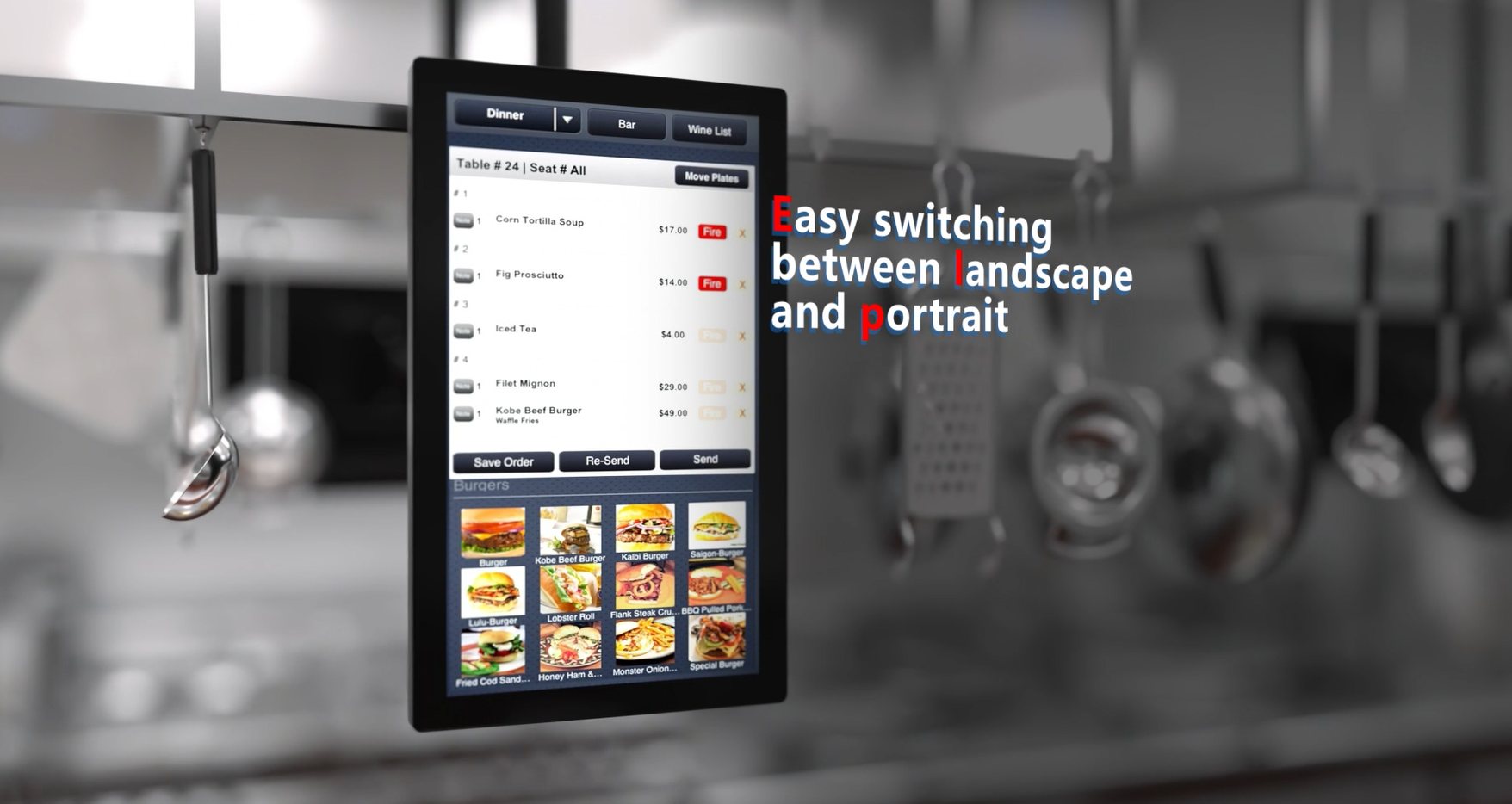

Symmetrical bezels
24mm narrow bezel, easy switching between landscape and portrait. Ideal for a variety of applications.
Fan-free Design
Equipped with various CPUs such as RK3568, J6412, or 11th/12th generation CPUs.
Versatile Applications
Not only for KDS, easy customization into self-service kiosks, digital play or large screen POS, quick setup for multiple industries
KD22 Specs
Product Model
KD22
Display
21.5" TFT LCD Panel (1920*1080)
OS
Windows11/10 LTSC/Ubuntu
Processor
Intel Elkhart Lake j6412 2.0GHz (up to
2.6GHz, 1.5MB Cache)
Memory
1 x DDR4, SO-DIMM, 4GB (Max. 32GB)
Storage
1 x 2.5 SATA SSD 128GB
(64GB/256GB/512GB optional )
IP Level
IP65 for Full Set
Network
2 x LAN (10/100/1000Mb)
WIFI/BT
WiFi2.4&5G/BT
Wall Mount
VESA 100*100
Power Adaptor
External Power Adapter, 12V-5A/60W
Ports
3 x USB 3.0 + 3 x USB 2.0
1 x 2.5 SATA SSD
2*HDMI (IN)
2 x LAN (10/100/1000Mb)
1 x DC In
1 x Audio (Line-out/MIC)
1 x Power Switch
1 x 2.5 SATA SSD
2*HDMI (IN)
2 x LAN (10/100/1000Mb)
1 x DC In
1 x Audio (Line-out/MIC)
1 x Power Switch
Speaker
2 x 2W Speaker
Environment
Operating temperature: -10°C~50°C
Storage temperature: -15°C～70°C
Storage temperature: -15°C～70°C
Brightness
350cd/m2 (Typ.)
Optional
T-base /MSR /RFID /Fingerprint /Scanner
Certification
CE, FCC, UKCA, RoHS
N.W./G.W.
6KG/8.8 KG

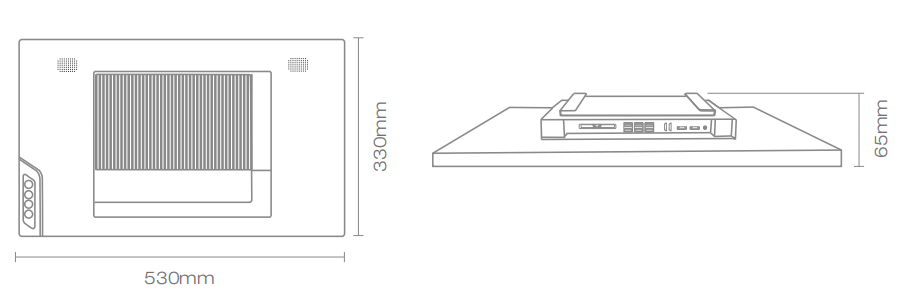

Dimensions (L*W*H)
530mm x 57mm x 320mm
Product Model
KD22
Display
21.5" TFT LCD Panel (1920*1080)
OS
Windows11/10 LTSC/Ubuntu
Processor
Intel Tiger Lake I3 1115G4 3.0GHz (up
to 4.1GHz,6MB Cache), FAN-free / Intel Tiger Lake I5 1135G7 2.4GHz(up
to 4.2GHz,8MB Cache), FAN-free
Memory
DDR4-3200, 1*SODIMM,
up to 32 GB
Storage
1 x m.2 2242
128GB SSD SATA
(64GB/256GB/512GB optional )
NVME 256GB Start
IP Level
IP65 for Full Set
Network
1 x LAN (10/100/1000Mb)
WIFI/BT
WiFi2.4&5G/BT
Wall Mount
VESA 100*100
Power Adaptor
External Power Adapter, 24V-4A/96W
Ports
2 x USB 3.0 + 4 x USB 2.0
2 x RJ50 (COM)
1 x RJ11, 24V Cash Drawer
1 x HDMI (IN)
1 x LAN (10/100/1000Mb)
1 x DC-in (3Pin)
1 x DC12V-Max. 2A
1 x Power Switch
2 x RJ50 (COM)
1 x RJ11, 24V Cash Drawer
1 x HDMI (IN)
1 x LAN (10/100/1000Mb)
1 x DC-in (3Pin)
1 x DC12V-Max. 2A
1 x Power Switch
Speaker
2 x 2W Speaker
Environment
Operating temperature: -10°C~50°C
Storage temperature: -15°C～70°C
Storage temperature: -15°C～70°C
Brightness
350cd/m2 (Typ.)
Optional
T-base /MSR /RFID /Fingerprint /Scanner
Certification
CE, FCC, UKCA, RoHS
N.W./G.W.
6KG/8.8KG
Dimensions (L*W*H)
530mm x 57mm x 320mm
Product Model
KD22
Display
21.5" TFT LCD Panel
OS
Windows11/10 LTSC/Ubuntu
Processor
Intel I3 1215U 1.2GHz(up to 4.4GHz,
10MB Cache), FAN-free /
Intel I5 1235U 1.3GHz(up to 4.4GHz,
12MB Cache), FAN-free
Memory
1x DDR5, SO-DIMM, 4G, Max.32GB
Storage
1 x m.2 2242
128GB SSD SATA
(64GB/256GB/512GB optional )
NVME 256GB Start
IP Level
IP65 for Full Set
Network
1 x LAN (10/100/1000Mb)
WIFI/BT
WiFi2.4&5G/BT
Wall Mount
VESA 100*100
Power Adaptor
External Power Adapter, 24V-4A/96W
Ports
2 x USB 3.0 + 4 x USB 2.0；
2 x RJ50 (COM);
1 x RJ11, 24V Cash Drawer;
1 x HDMI (IN);
1 x LAN (10/100/1000Mb);
1 x DC In 3pin
Speaker
2 x 2W Speaker
Environment
Operating temperature: -10°C~50°C
Storage temperature: -15°C～70°C
Storage temperature: -15°C～70°C
Brightness
350cd/m2 (Typ.)
Optional
T-base /MSR /RFID /Fingerprint /Scanner
Certification
CE, FCC, UKCA, RoHS
N.W./G.W.
6KG/8.8KG
Dimensions (L*W*H)
530mm x 57mm x 320mm
Product Model
KD22
Display
21.5" TFT LCD Panel
OS
Android 11.0
Processor
Rockchip3568, Cortex-A55, up to
2.0GHz
Memory
DDR4, 4G(Onboard)
Storage
eMMC 64G
IP Level
IP65 for Full Set
Network
1 x LAN (10/100/1000Mb)
WIFI/BT
mPCI-E WiFi/BT
Wall Mount
VESA 100*100
Power Adaptor
External Power Adapter, 12V-
5A/60W
Ports
1 x USB 3.0 + 3 x USB 2.0
1 x HDMI (OUT)
1 x LAN (10/100/1000Mb)
1 x DC In
1*Audio (Line-out)
1 x SIM Card slot + 1 x TF Card Slot
1 x UBOOT
1 x HDMI (OUT)
1 x LAN (10/100/1000Mb)
1 x DC In
1*Audio (Line-out)
1 x SIM Card slot + 1 x TF Card Slot
1 x UBOOT
Speaker
2 x 2W Speaker
Environment
Operating temperature: -10°C~50°C
Storage temperature: -15°C～70°C
Storage temperature: -15°C～70°C
Brightness
350cd/m2 (Typ.)
Optional
T-base /MSR /RFID /Fingerprint /Scanner
Certification
CE, FCC, UKCA, RoHS
N.W./G.W.
6KG/8.8KG
Dimensions (L*W*H)
530mm x 57mm x 320mm
