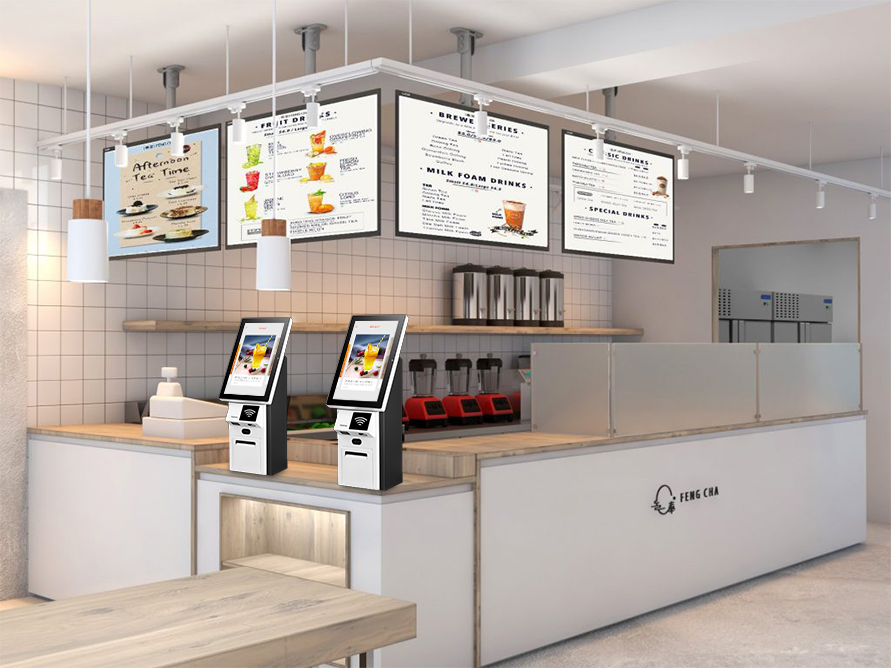

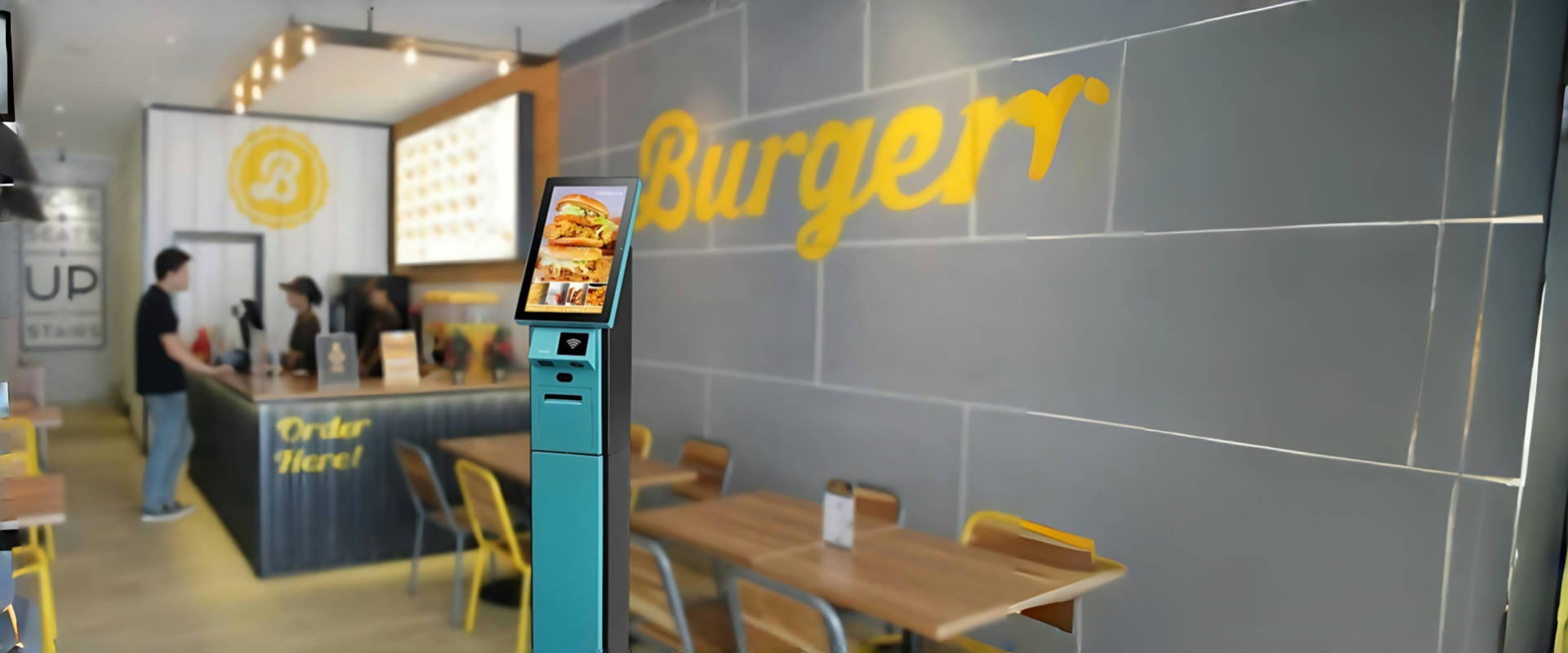

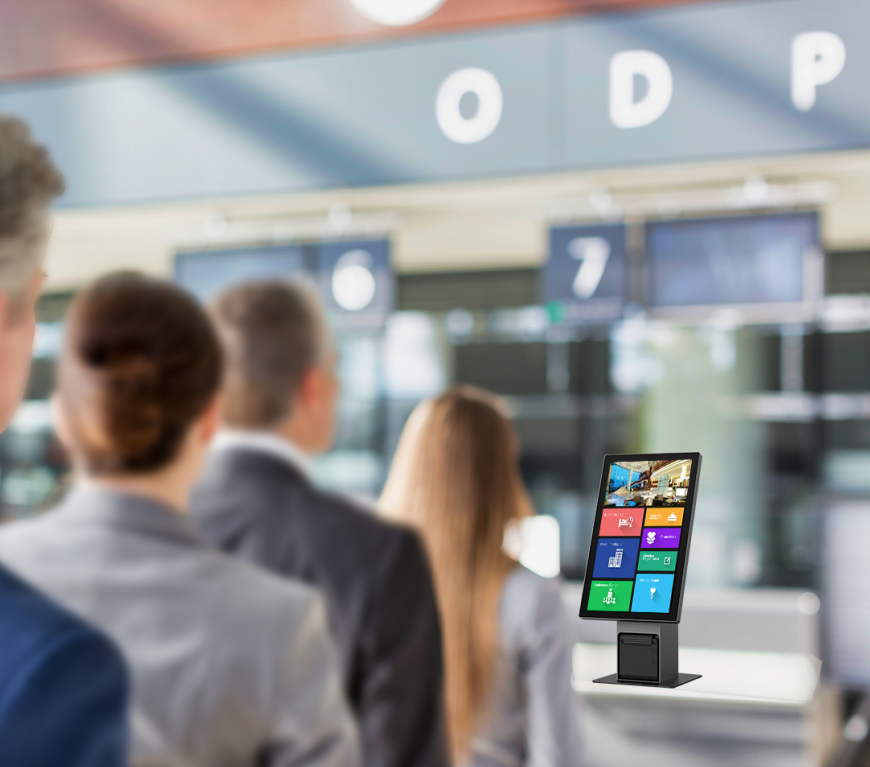

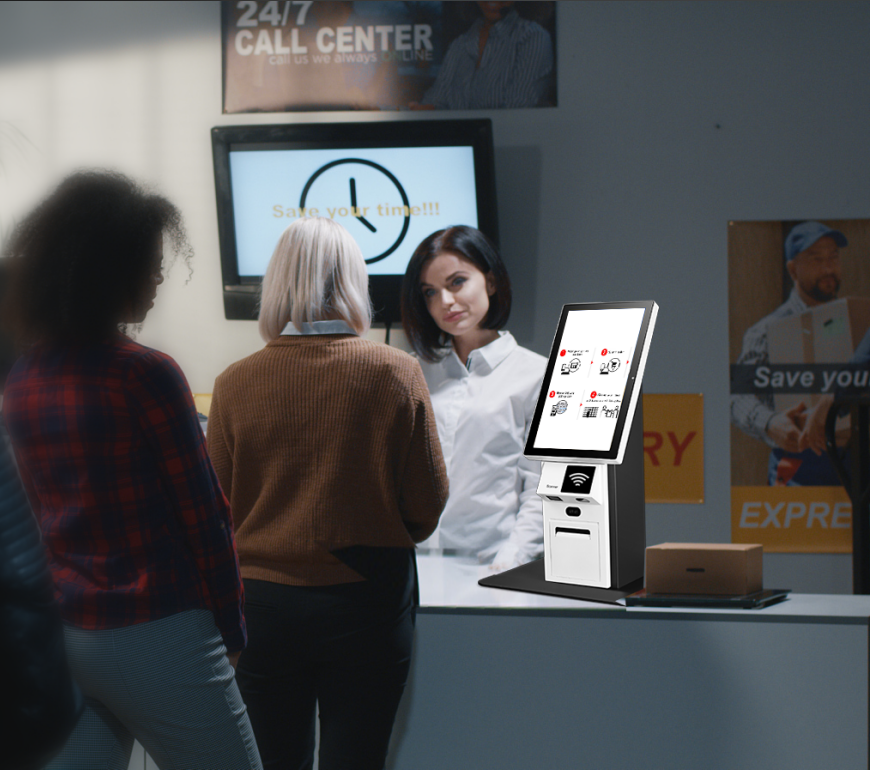

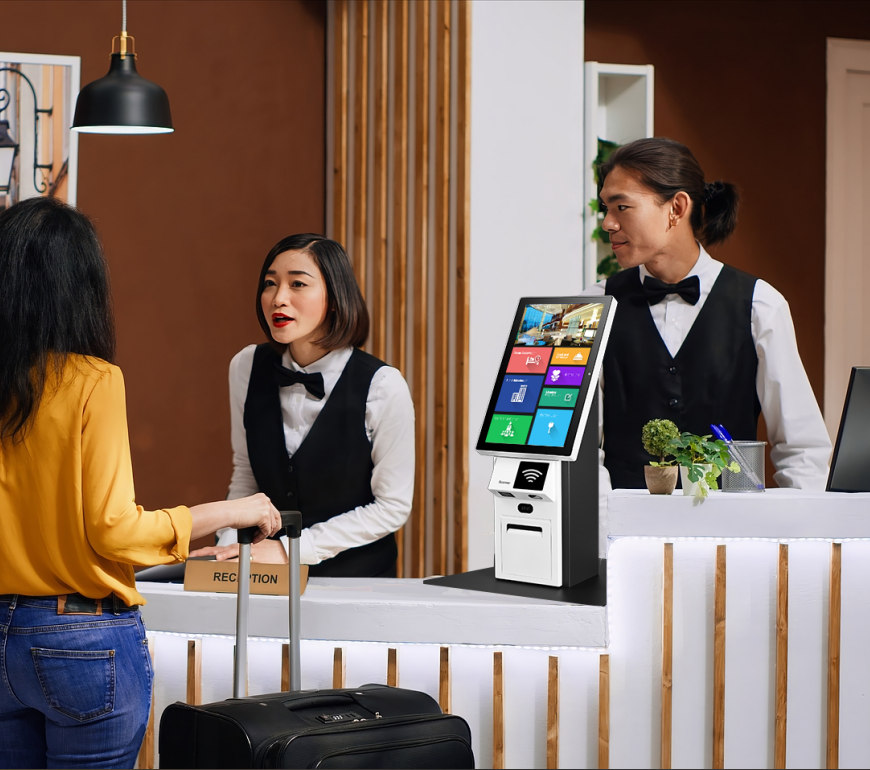

Various Installation Style

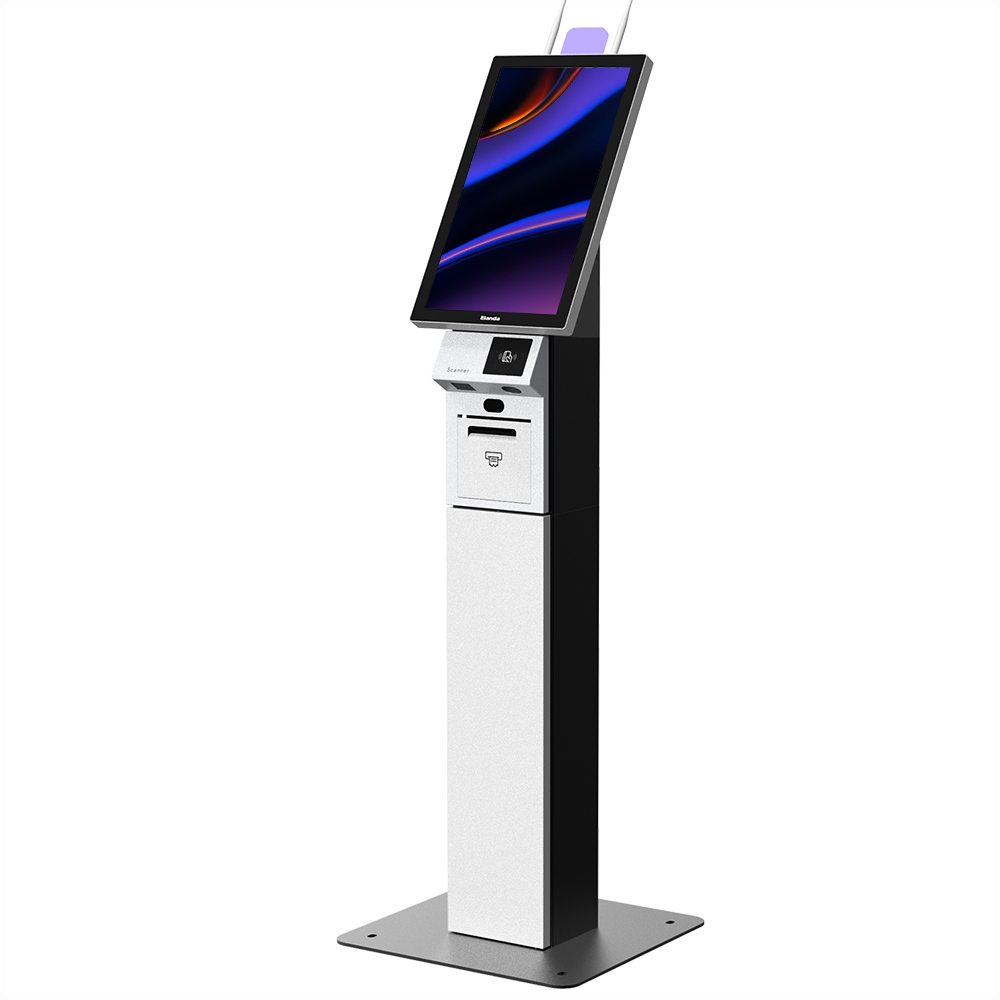

Desktop and Free-standing

Flexible installation options—desktop or free-standing, landscape or portrait—to seamlessly fit various business needs.









Premium CPU

Smooth and Efficient Operation

Equipped with high-performance Intel® J6412, i3, or i5 11th/12th generation and RK3568 CPUs, this POS system delivers exceptional processing power, ensuring smooth and efficient operation for demanding business environments.

Modular Design – Effortless Maintenance

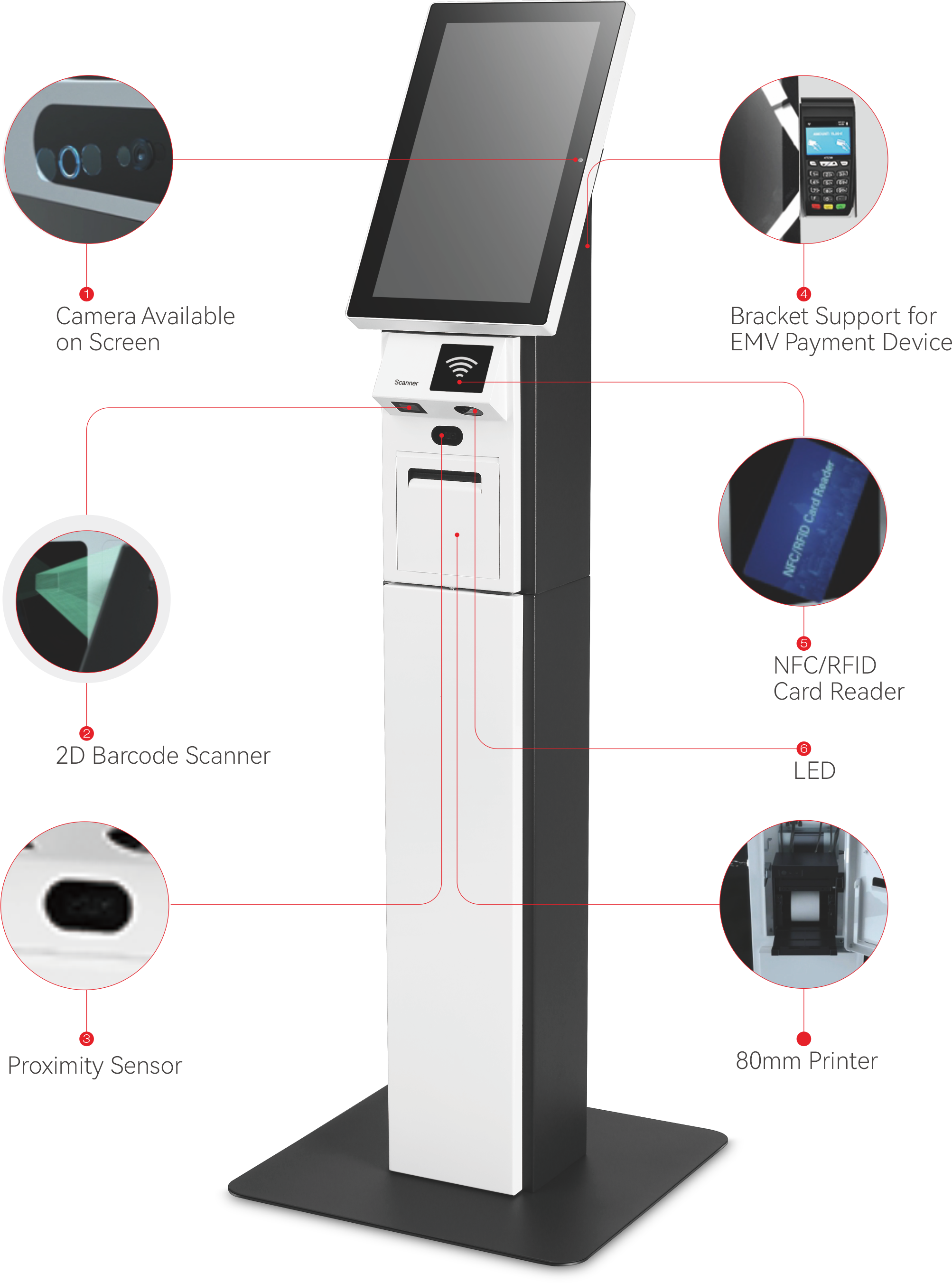

Supports NFC, MSR, QR Code Scanner, Printer, and more—easy to install and maintain, adapting to various usage scenarios.

QR Code Scanner

Quick Scan the code, no wait.

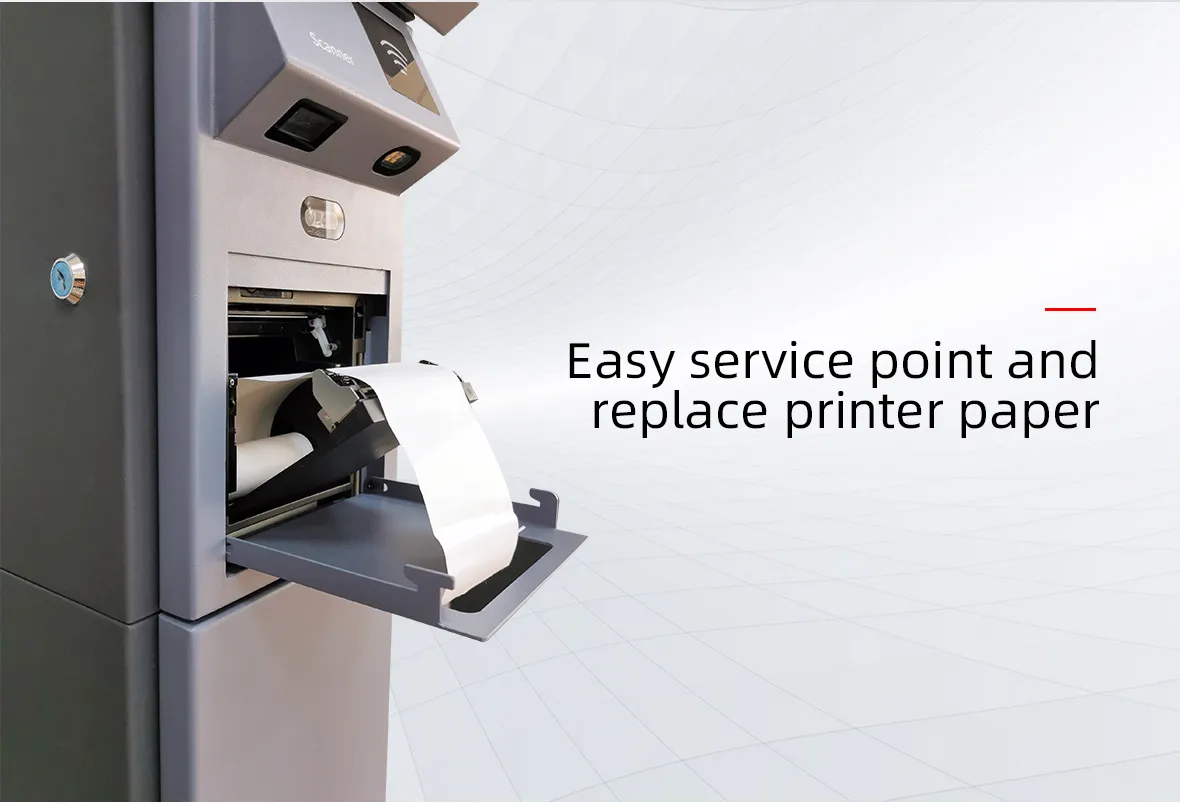

80mm Thermal Printer

Auto-cutter 80mm printer for seamless transactions

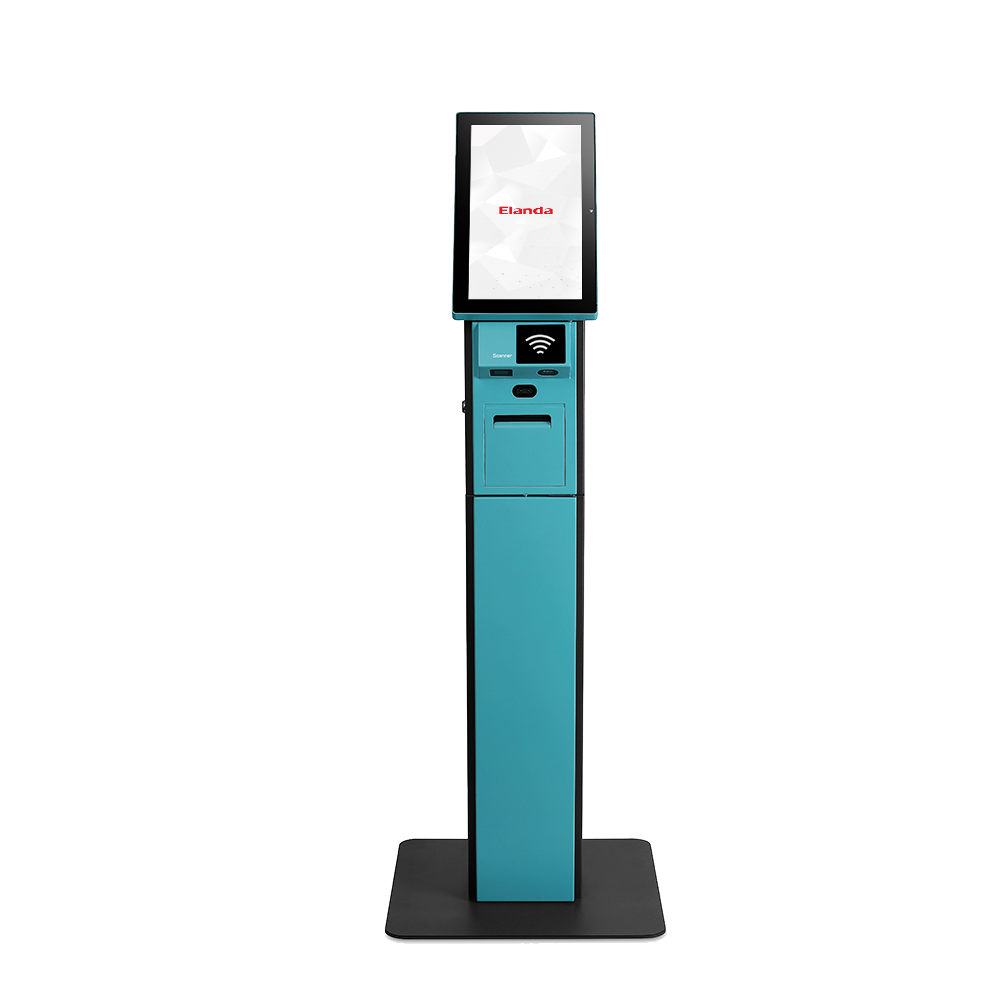

Customize your color

Allows personalized customization to match their brand identity or decoration styles.

K10/K20 Tech Specs

Product Model

K10/K20

Display

15.6" TFT LCD Panel (K10) / 21.5" TFT LCD Panel (K20)

Os

Windows10/11 LTSC/Ubuntu

Processor

Intel Elkhart Lake j6412 2.0GHz (Up to 2.6GHz,1.5MB Cache), Fan-Free

Memory

1 x DDR4, SO-DIMM, 4GB (Max. 32GB)

Storage

1 x m.2 NVME 128GB SSD(256G/512G Optional )

Speaker

2 x 2W Speaker (Optional)

Network

2 x LAN(10/100/1000Mb)

WIFI/BT

mPCI-E WiFi2.4-5G/BT4.2

Installation Styles

Desktop/Floor-Standing

Power Adaptor

External Power Adapter, 12V-5A/60W

Ports

3 x USB3.0 +7 x USB2.0
2 x RJ50 + 1 x DB9
1 x DC-IN
2 x HDMI
2 x LAN(10/100/1000Mb)
1 x Audio
1 x Power Switch

Weight

Floor-standing: 77.5kg

Environment

Operating temperature: 0°C~40°C Storage temperature: -15°C~70°C

Standard Components

3" Thermal Printer, Auto Cutter, 170 mm/sec (Max.)
5MP camera
60~80cm Proximity Sensor

Optional Accessories

Scanner
WIFI
MSR
Payment Device Bracket Support
NFC/RFID Reader
Status Light

Brightness

250cd/m²

EMC Safety

CE/FCC/UKCA/RoHS

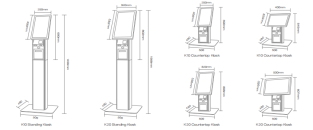

Dimensions (L*W*H)

Chassis: 320 x 480 x 530mm
Column: 330 x 330 x 766mm
Base: 500 x 480 x 6mm

Product Model

K10/K20

Display

15.6" TFT LCD Panel (K10) / 21.5" TFT LCD Panel (K20)

OS

Windows10/11 LTSC/Ubuntu

Processor

i3 1115G4 3.0GHz (Up to 4.1GHz,6MB Cache), Fan-free/

i5 1135G7 2.4GHz (Up to 4.2GHz,8MB Cache), Fan-free

Memory

1x DDR4, SO-DIMM, 4G, Max.32GB

Storage

1 x mSATA 128G (256G/512G Optional)

Speaker

2 x 2W Speaker (Optional)

Network

1 x LAN(10/100/1000Mb)

WIFI/BT

mPCI-E WiFi2.4-5G/BT4.2

Installation Styles

Desktop/Floor-Standing

Power Adaptor

1 x 12V-7A/84W (System) + 1 x 24V-2A/48W (Printer)

Ports

4 x USB3.0 + 6 x USB2.0
2 x RJ50 + 1 x DB9
1 x DC-IN
1 x HDMI
1 x LAN(10/100/1000Mb)
1 x Audio
1 x Power Switch

Weight

77.5Kg

Environment

Operating temperature: 0°C~40°C Storage temperature: -15°C~70°C

Standard Components

3" Thermal Printer, Auto Cutter, 170 mm/sec (Max.)
5MP camera
60~80cm Proximity Sensor

Optional Accessories

Scanner
WIFI
MSR
Payment Device Bracket Support
NFC/RFID Reader
Status Light

Brightness

250cd/m²

EMC Safety

CE/FCC/UKCA/RoHS

Dimensions (L*W*H)

Chassis: 320 x 480 x 530mm
Column: 330 x 330 x 766mm
Base: 500 x 480 x 6mm

Product Model

K10/K20

Display

15.6" TFT LCD Panel (K10) / 21.5" TFT LCD Panel (K20)

OS

Android 11.0

Processor

Rockchip3568 Cortex-A55 (up to 2.0GHz)

Memory

DDR4L, 4G(Onboard)

Storage

eMMC 64G

Resolution

1920*1080

Brightness

250cd/m²

WIFI/BT

mPCI-E WiFi2.4-5G/BT4.2

Installation Styles

Desktop/ Free-standing

Power Adaptor

1 x 12V-5A/60W (System) + 1 x 24V-2A/48W(Printer)

Ports

1 x USB3.0 + 7 x USB2.0
2 x RJ50
1 x DC-IN
1 x HDMI
1 x LAN(10/100/1000Mb)
1 x Audio
1 x Power Switch
1 x SIM
1x TF
1x Uboot

Speaker

2 x 2W Speaker

Environment

Operating temperature: 0°C~40°C
Storage temperature: -15°C~70°C

Standard Components

3" Thermal Printer, Auto Cutter, 170 mm/sec (Max.)
5MP camera
60~80cm Proximity Sensor + LED Light

Optional Accessories

Scanner
WIFI
MSR
Payment Device Bracket Support
NFC/RFID Reader
Status Light

EMC Safety

CE/FCC/UKCA/RoHS

Weight

77.5kg

Dimensions (L*W*H)

Chassis: 320 x 480 x 530mm
Column: 330 x 330 x 766mm
Base: 500 x 480 x 6mm
