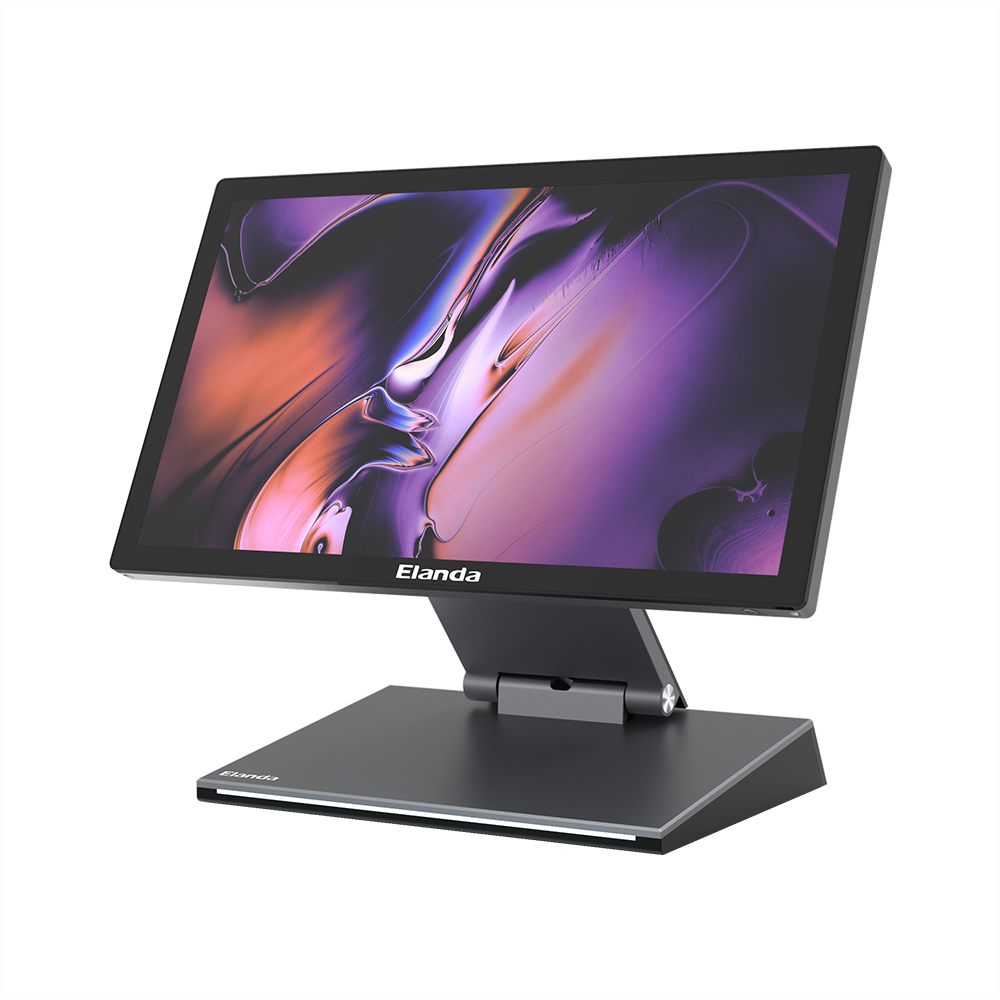

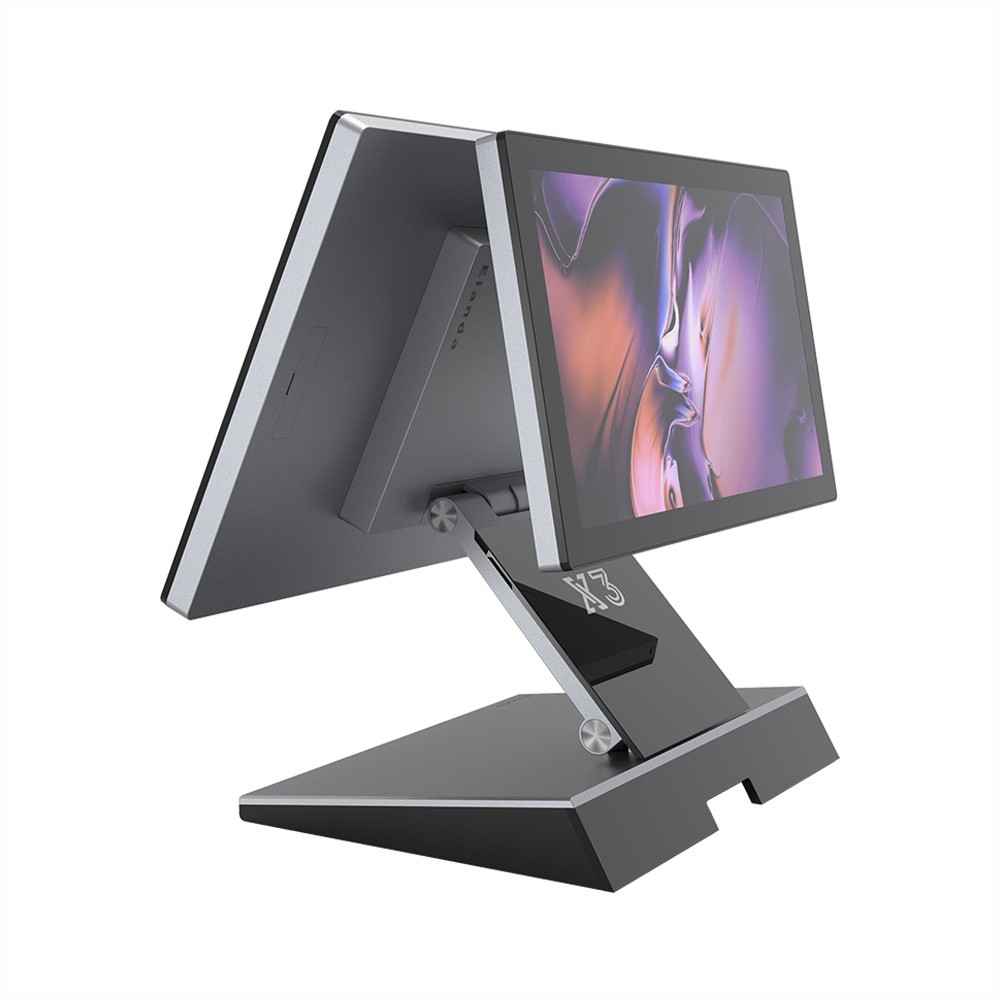

15.6" New-Gen

Enhance User Experience

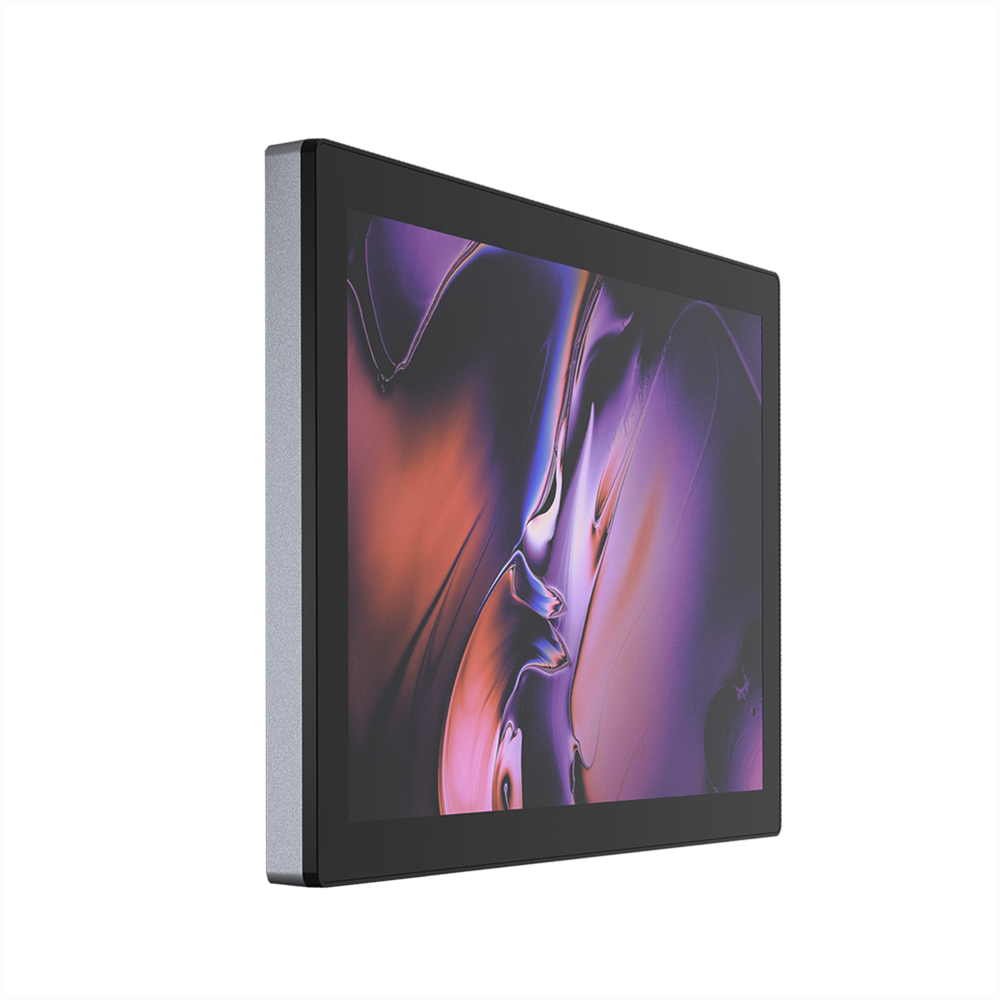

Screen bezel is only 12mm

15.6-inch sturdy, corrosion-resistant zinc alloy housing and base combined with a fanless copper pipe cooling system, ensures optimal performance and long-term stable operation. Its ultra-narrow 12mm bezel maximizes screen space for a sleek, modern design.

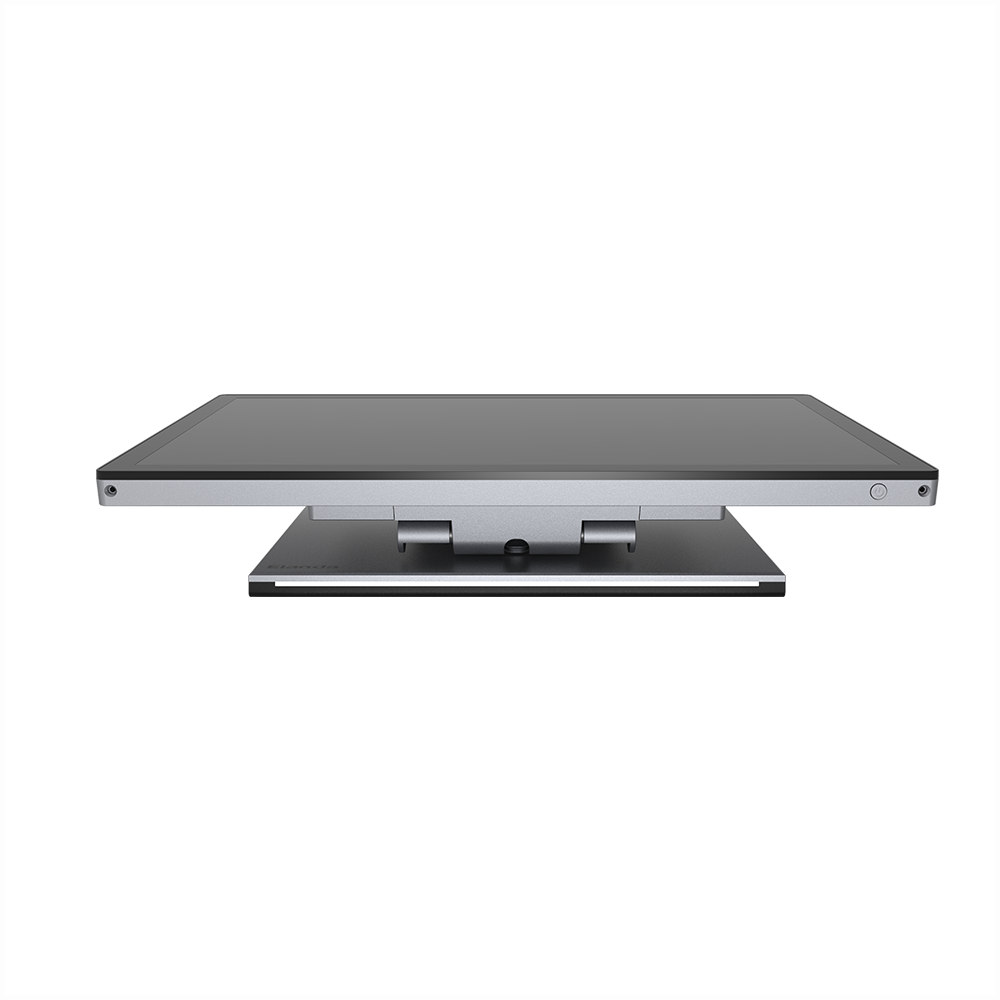

16mm Ultra-thin Design

Sleek, Elegant and Space-Saving

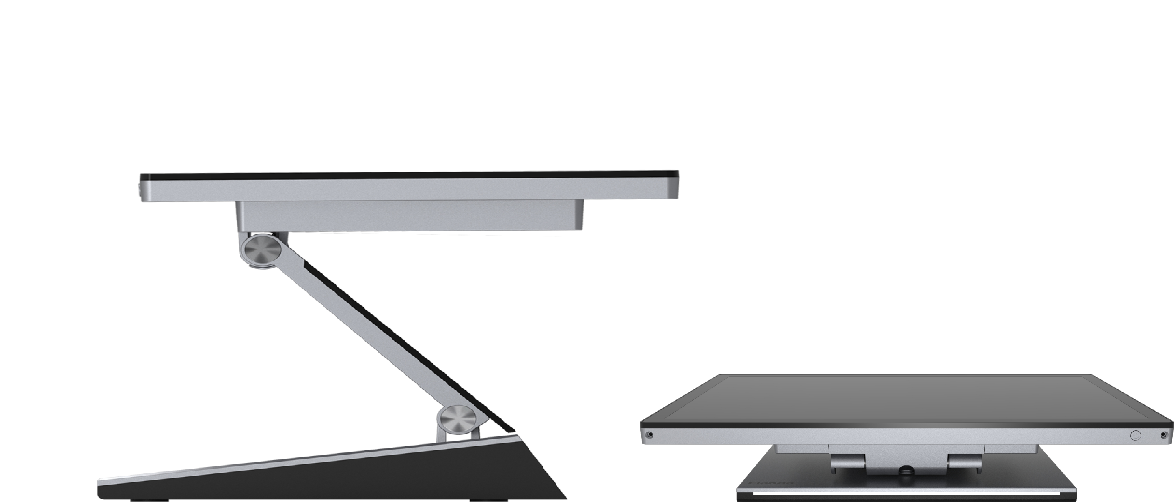

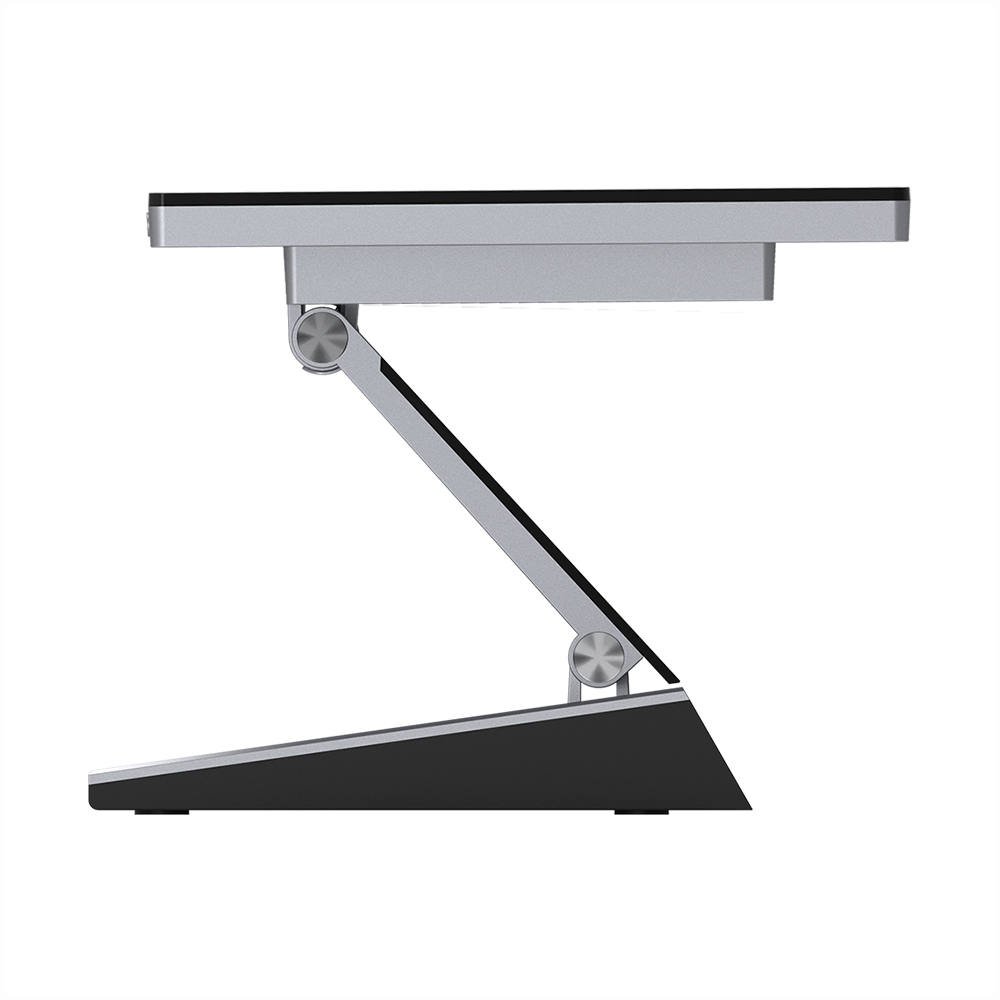

Innovative Dual Hinge Foldable Design for easy transport, saving cost and space while meeting diverse application needs. At the same time, the led light stripe decoration enhances the product’s visual appeal.

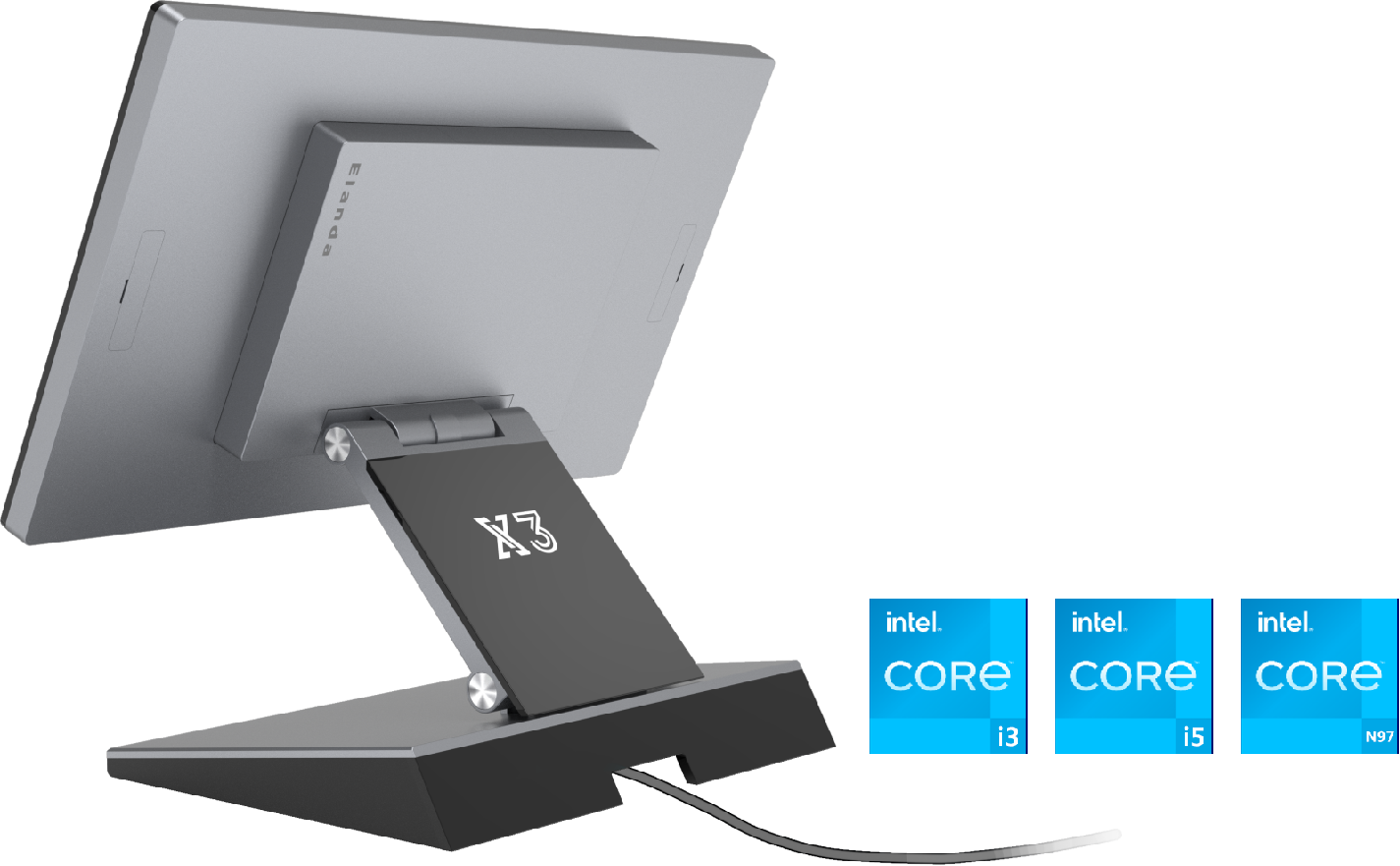

Fan-free Design

Equipped with intel N97 & intel i3 & i5 12th/13th-gen CPU, ensuring quiet and efficient operation.

Easy Installation & Maintainance

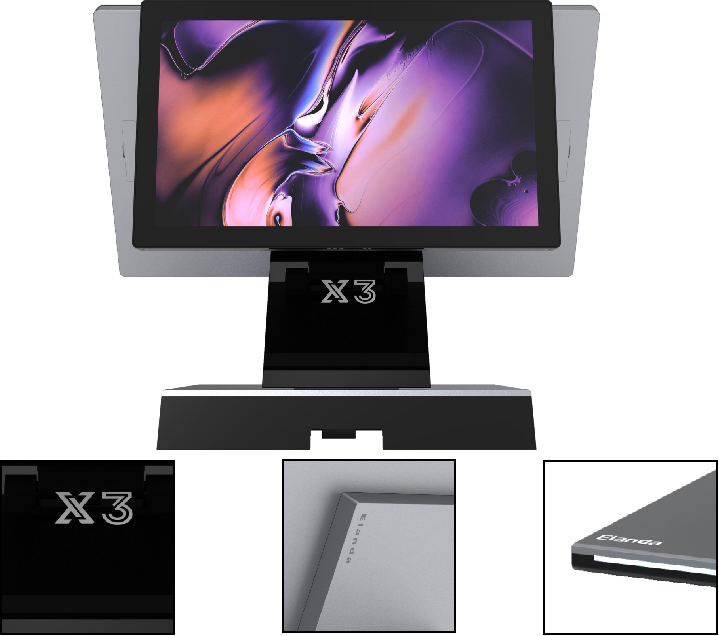

LED Light Strip Decoration

Enhances the Product’s Visual Appeal

Personalized Customization

Logo customization is available to enhance brand promotion and meet market demands.

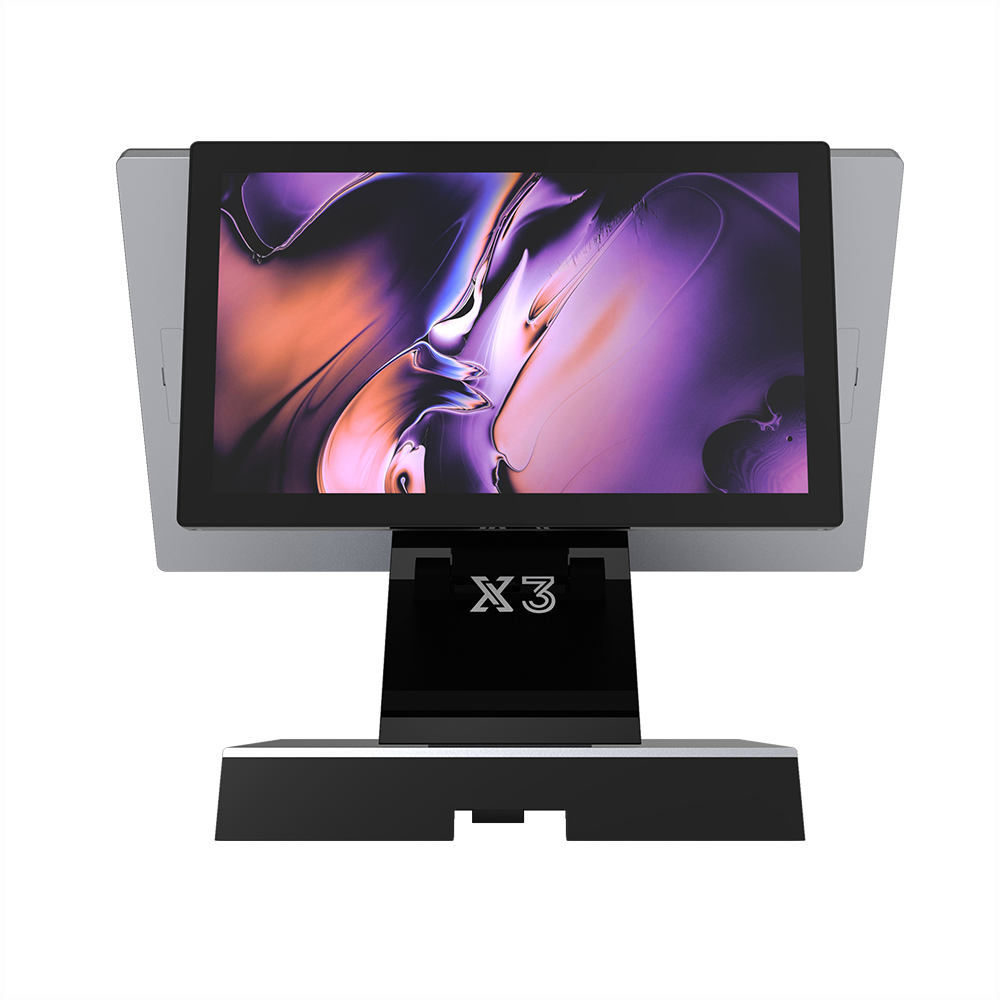

X3 Specs

Product Model

X3

Display

15.6" TFT LCD Panel

OS

Windows11/10 LTSC/Ubuntu

Processor

Intel® N97 Processor 6M Cache up to3.60 GHz

Memory

DDR4-3200, 1*SO-IMM, up to 16 GB

Storage

1 x m.2 SSD 128GB (64G/256G optional NVME/SATA adaptive)

Brightness

350 cd/m²

Network

1 x LAN (10/100/1000Mb)

WIFI/BT

mPCI-E WiFi/BT

Wall Mount

VESA 100*100

Power Adaptor

External Power Adapter, 24V-4A/86W

Ports

2x USB 3.0+6xUSB 2.0+1xTpye-C;
2 x Serial port (RJ50);
1xRJ11,12V(compatible with 24V);
1x LAN(10110011000Mb);
1xMic-In/Speaker-out(Combo Jack);
1xDCIn(4pin);
1xPower switch (with indicator light)

Speaker

2 x 2W Speaker (Optional)

Environment

Operating temperature: 0°C~40°C

Storage
temperature: -15°C~70°C

Status Indicator

Base Status Indicator Light

Accessories

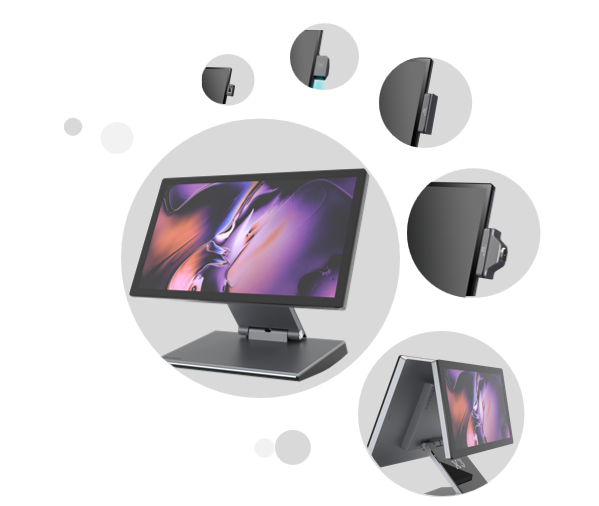

11.6" /15.6" Second Display/MSR/Barcode Scanner

Tilt Angle

The Screen Supports 0 to 180 Degrees (Single Screen), the Base Supports 0 ~ 120 Degree

N.W./G.W.

15.6":5.3KG/6.1KG

15.6"+11.6": 7.3KG/8.1KG

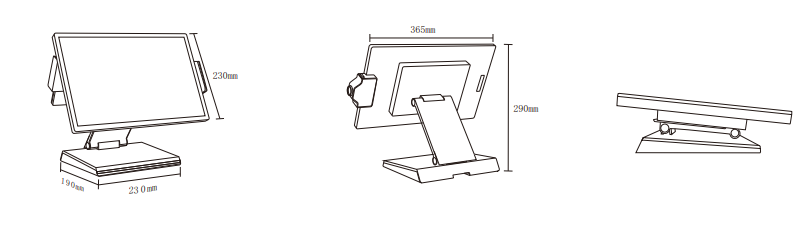

Dimensions (L*W*H)

15.6":373mm x 194mm x 310mm

15.6"+11.6" 372mm x 189mm x 322mm

Product Model

X3

Display

15.6" TFT LCD Panel

OS

Windows11/10 LTSC/Ubuntu

Processor

Intel® Core™ i3-1215U Processor 10M Cache, up to 4.40 GHz

Memory

DDR4-3200, 1*SO-DIMM, up to 32 GB

Storage

1 x m.2 SSD 128GB (256G Optional NVME/SATA Adaptive)

Brightness

350 cd/m²

Network

1 x LAN (10/100/1000Mb)

WIFI/BT

mPCI-E WiFi/BT

Wall Mount

VESA 100*100

Power Adaptor

External Power Adapter, 24V-4A/86W

Ports

2 x USB 3.0 +6 x USB 2.0 + 1 x Tpye-C;
2 x Serial Port (RJ50);
1 x RJ11, 12V (compatible with 24V cash drawers);
1 x LAN (10/100/1000Mb);
1 x Mic-In/Speaker-out (Combo Jack);
1 x DC In(4pin);
1 x Power Switch (with indicator light)

Speaker

2 x 2W Speaker (Optional)

Environment

Operating temperature: 0°C~40°C Storage temperature: -15°C~70°C

Base Indicator

Status Indicator

Accessories

11.6" /15.6" Second Display/MSR/Barcode Scanner

Tilt Angle

The Screen Supports 0 to 180 Degrees (Single Screen), the Base Supports 0 ~ 120 Degree

N.W./G.W.

15.6":5.3KG/6.1KG

15.6"+11.6": 7.3KG/8.1KG

Dimensions (L*W*H)

15.6":373mm x 194mm x 310mm

15.6"+11.6" 372mm x 189mm x 322mm

Product Model

X3

Display

15.6" TFT LCD Panel

OS

Windows11/10 LTSC/Ubuntu

Processor

Intel® Core™ i5-1235U Processor 12 M Cache, Turbo Boost up to 4.40 GHz

Memory

DDR4-3200, 1*SO-DIMM, up to 64 GB

Storage

1 x m.2 SSD 128GB (256G Optional NVME/SATA Adaptive)

Brightness

350 cd/m²

Network

1 x LAN (10/100/1000Mb)

WIFI/BT

mPCI-E WiFi/BT

Wall Mount

VESA 100*100

Power Adaptor

External Power Adapter, 24V-4A/86W

Ports

2x USB 3.0 +6 x USB 2.0+1xTpye-C;
2 x Serial port (RJ50);
1 x RJ11, 12V (compatible with 24V cash drawers);
1 x LAN (10/100/1000Mb);
1 x Mic-In/Speaker-out (Combo Jack);
1 x DC In(4pin);
1 x Power switch (with indicator light)

Speaker

2 x 2W Speaker (Optional)

Environment

Operating temperature: 0°C~40°C Storage temperature: -15°C~70°C

Status Indicator

Base Status Indicator Light

Accessories

11.6" /15.6" Second Display/MSR/Barcode Scanner

Tilt Angle

The Screen Supports 0 to 90 Degrees, and The Base Supports 0 to 60 Degree

N.W./G.W.

15.6":5.3KG/6.1KG

15.6"+11.6": 7.3KG/8.1KG

Dimensions (L*W*H)

15.6":373mm x 194mm x 310mm

15.6"+11.6" 372mm x 189mm x 322mm

Product Model

X3

Display

15.6" TFT LCD Panel

OS

Windows11/10 LTSC/Ubuntu

Processor

Intel® Core™ i5-1235U Processor 12 M Cache, Turbo Boost up to 4.40 GHz

Memory

DDR4-3200, 1*SO-DIMM, up to 64 GB

Storage

1 x m.2 SSD 128GB (256G Optional NVME/SATA Adaptive)

Brightness

350 cd/m²

Network

1 x LAN (10/100/1000Mb)

WIFI/BT

mPCI-E WiFi/BT

Wall Mount

VESA 100*100

Power Adaptor

External Power Adapter, 24V-5A/120W

Ports

2x USB 3.0 +6 x USB 2.0+1xTpye-C;
2 x Serial port (RJ50);
1 x RJ11, 12V (compatible with 24V cash drawers);
1 x LAN (10/100/1000Mb);
1 x Mic-In/Speaker-out (Combo Jack); 1 x DC In(4pin);
1 x Power switch (with indicator light)

Speaker

2 x 2W Speaker (Optional)

Environment

Operating temperature: 0°C~40°C Storage temperature: -15°C~70°C

Status Indicator

Base Status Indicator Light

Accessories

11.6" /15.6" Second Display/MSR/Barcode Scanner

Tilt Angle

The Screen Supports 0 to 90 Degrees, and The Base Supports 0 to 60 Degrees

N.W/G.W

15.6":5.3KG/6.1KG

15.6"+11.6": 7.3KG/8.1KG

Dimensions (L*W*H)

15.6":373mm x 194mm x 310mm

15.6"+11.6" 372mm x 189mm x 322mm
