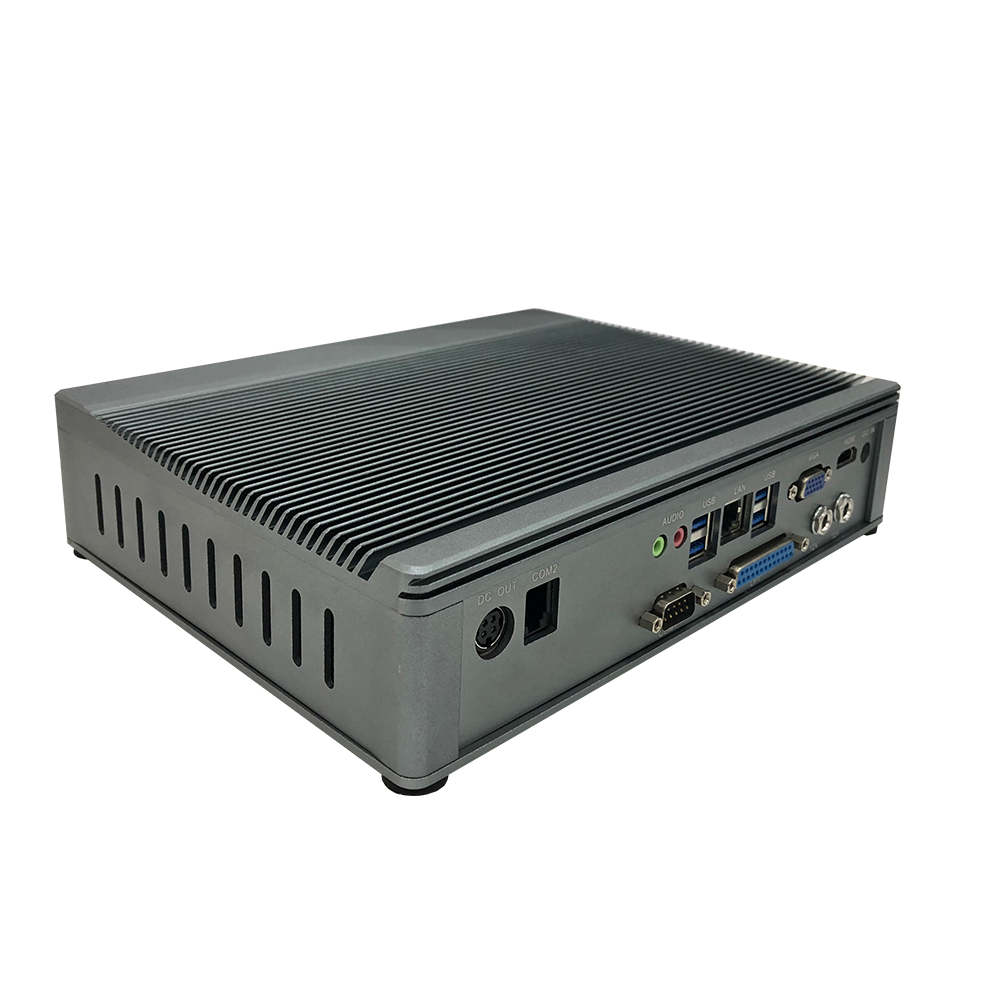

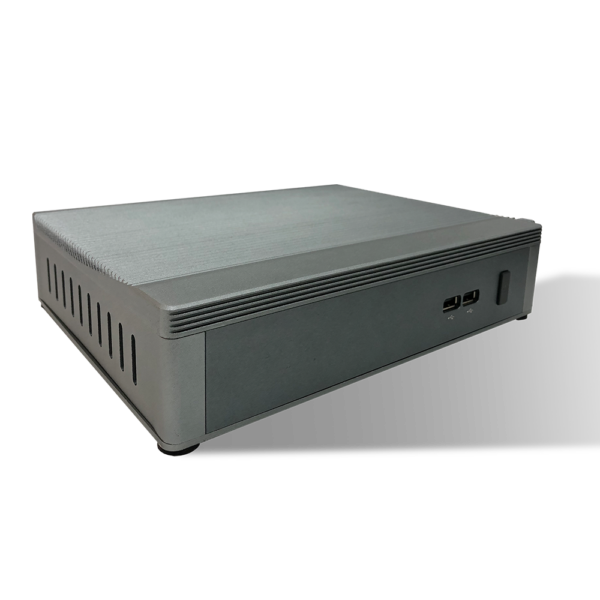

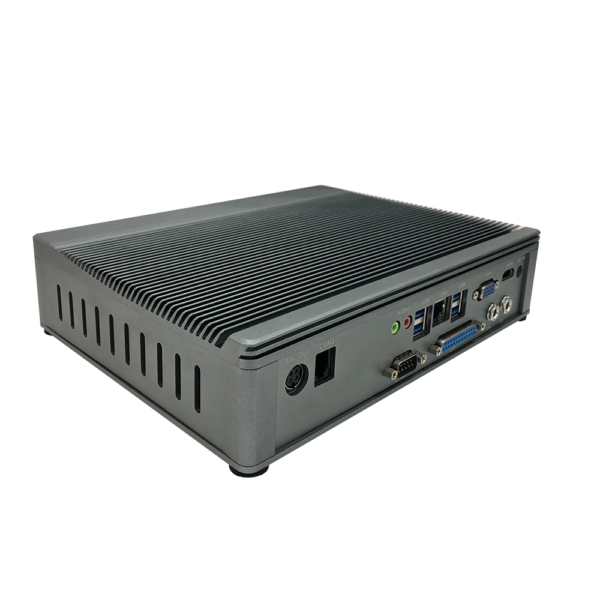

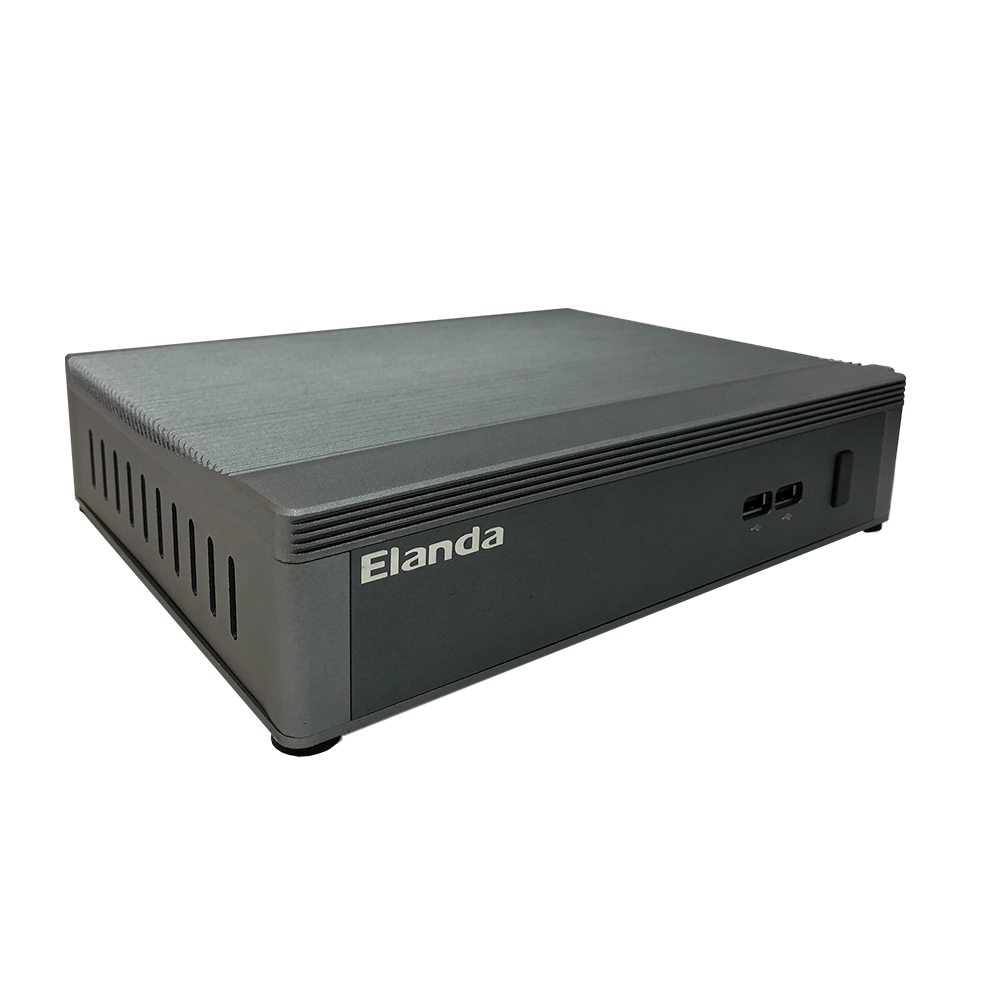

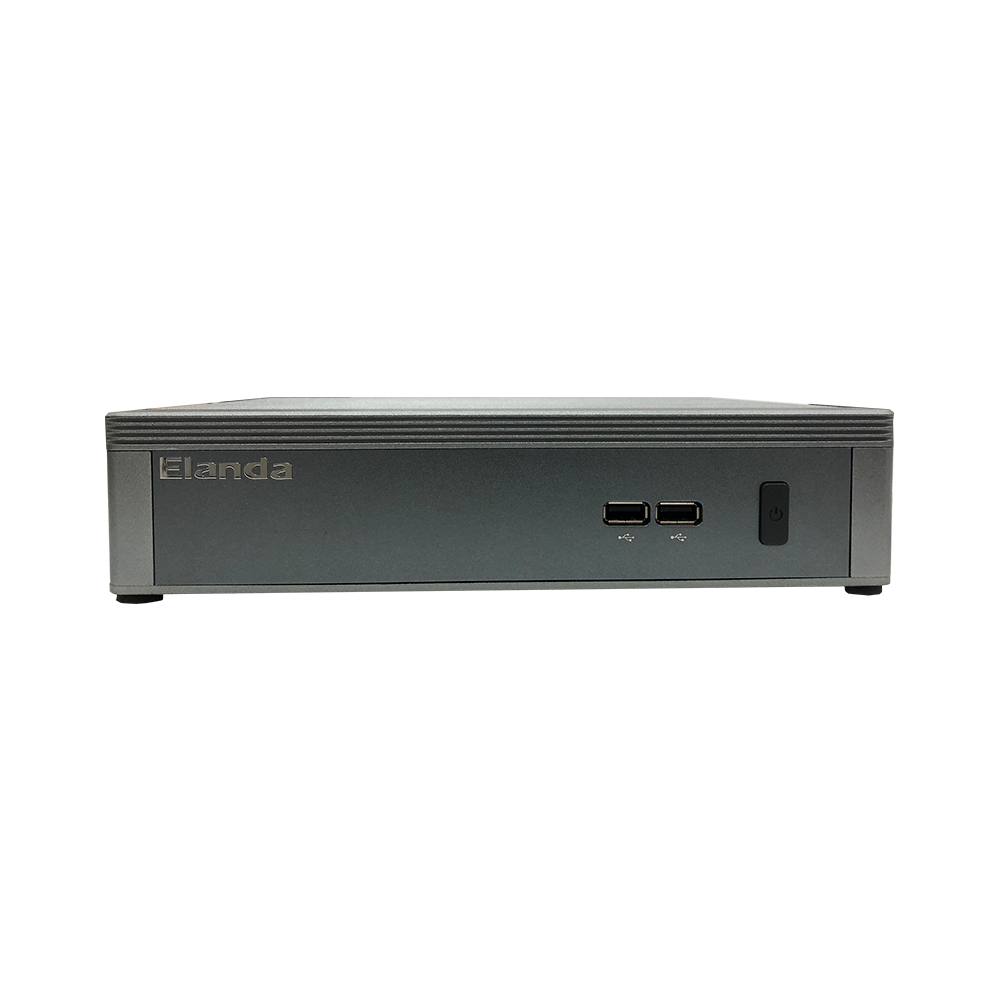

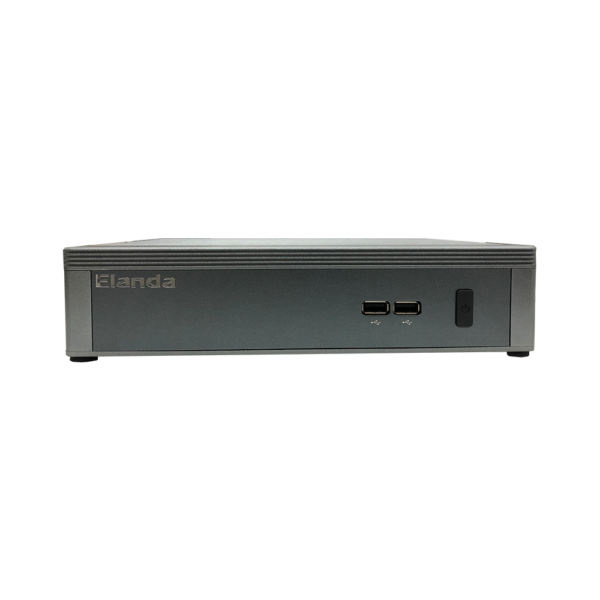

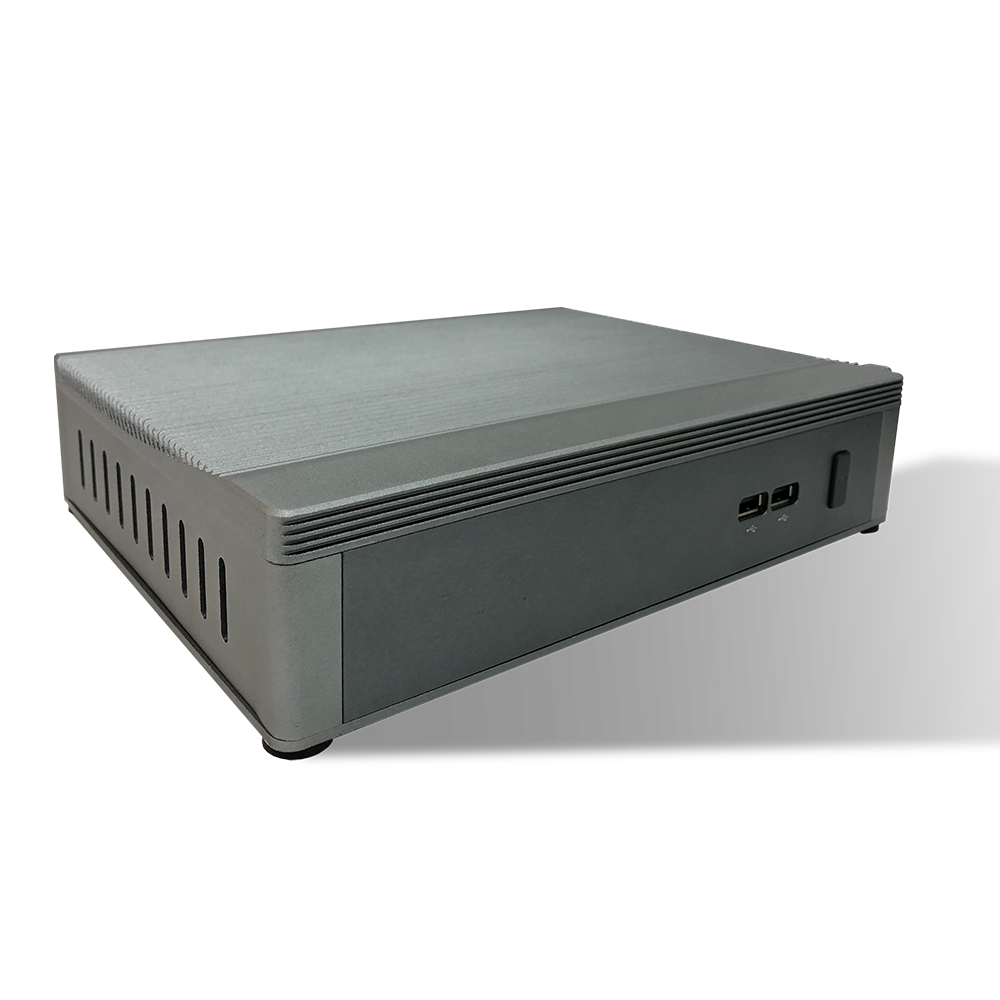

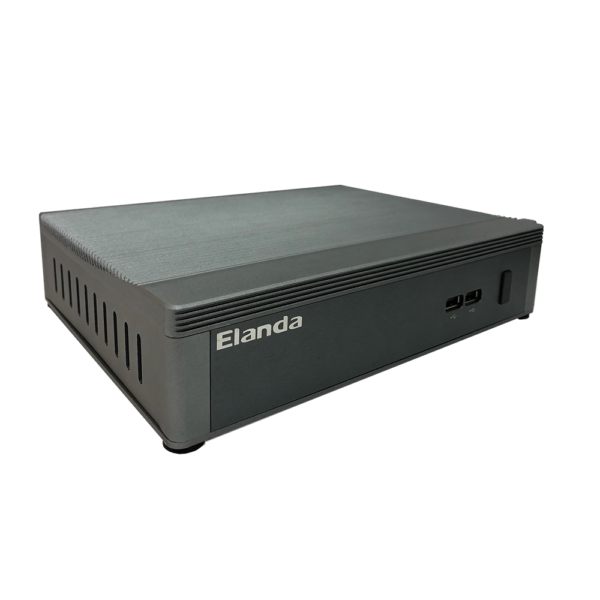

PC Box
Ultra-slim PC Box with Powerful Performance
- Powered by Intel® Elkhart Lake J6412 / i3 / i5 Skylake
- Fanless Aluminum Die-cast Housing
- Engineered for high performance with low power consumption, this device features a durable, fan-free design for silent
- operation and extended lifespan. With rich I/O ports and a robust build, it supports a wide range of industrial and commercial applications.
- Powered by Intel® Elkhart Lake J6412 / i3 / i5 Skylake
- Fan-Free Aluminum Die-Casting Housing
- High performance with low power consumption
- Rich l/O ports
- Wide range of application
| Model Number | EB200 ( PC-BOX) | |||
| CPU | Intel® Celeron® Processor J6412 1.5M Cache, up to 2.60 GHz, Fan-free | Intel® Core i3-Skylake, (3MB Cache), Fanless, (Kaby Lake Optional) | Intel® Core i5-Skylake, (4MB Cache), Fanless, (Kaby Lake Optional) | |
| System Memory | 1 x DDR4, SO-DIMM, 4GB (Max.32GB) | 1 x DDR4, SO-DIMM, 4GB (Max.16GB) | ||
| Storage | mSATA/M.2 SSD 128GB (256GB/512GB Optional) | mSATA SSD 128GB (256GB/512GB Optional) | ||
| External I/O Port | USB | 4 x USB 3.0 + 4 x USB 2.0 | ||
| Serial Port | 3 x Serial Port (RJ50); (COM1~3: 0/5/12V by pin-JP) + 1 x DB9 | |||
| VGA | 1 x VGA (Power Enable by BIOS; +12V) | |||
| HDMI | 1 x HDMI Connector (Enable by BIOS, VGA Colay) | N/A | ||
| Cash Drawer Port | 1 x RJ11, (12V/24V by Pin-JP）(Controls 2 Drawers Dual Independent Sensor) | 1 x RJ11, 12V Cash Drawer | ||
| LAN | 1 x LAN (10/100/1000Mb) | |||
| Audio | 1 x Mic-In/Speaker-out (Combo Jack) | |||
| DC-IN | 1 x DC-IN (4PIN) | |||
| DC-Out | N/A | |||
| Power Switch | 1 x Power Switch | |||
| Speaker | N/A | |||
| WiFi&BT | N/A | |||
| Power | External Power Adapter, 12V-5A/60W | |||
| EMC Safety | CE, FCC, UKCA, ROHS | |||
| Environment | Operating Temperature | 0°C ~ 40°C | ||
| Storage Temperature | -15°C ~ 70°C | |||
| Operating Humidity | 20% - 85% RH Non Condensing | |||
| Storage Humidity | 20% - 85% RH Non Condensing | |||
| OS Support | Windows10/11 LTSC/Ubuntu | Windows 7/10, Ubuntu | ||
| PC Box Size | 252 x 191.5 x 57mm | |||
| Weight (N.W.) | 1.2Kg | |||
