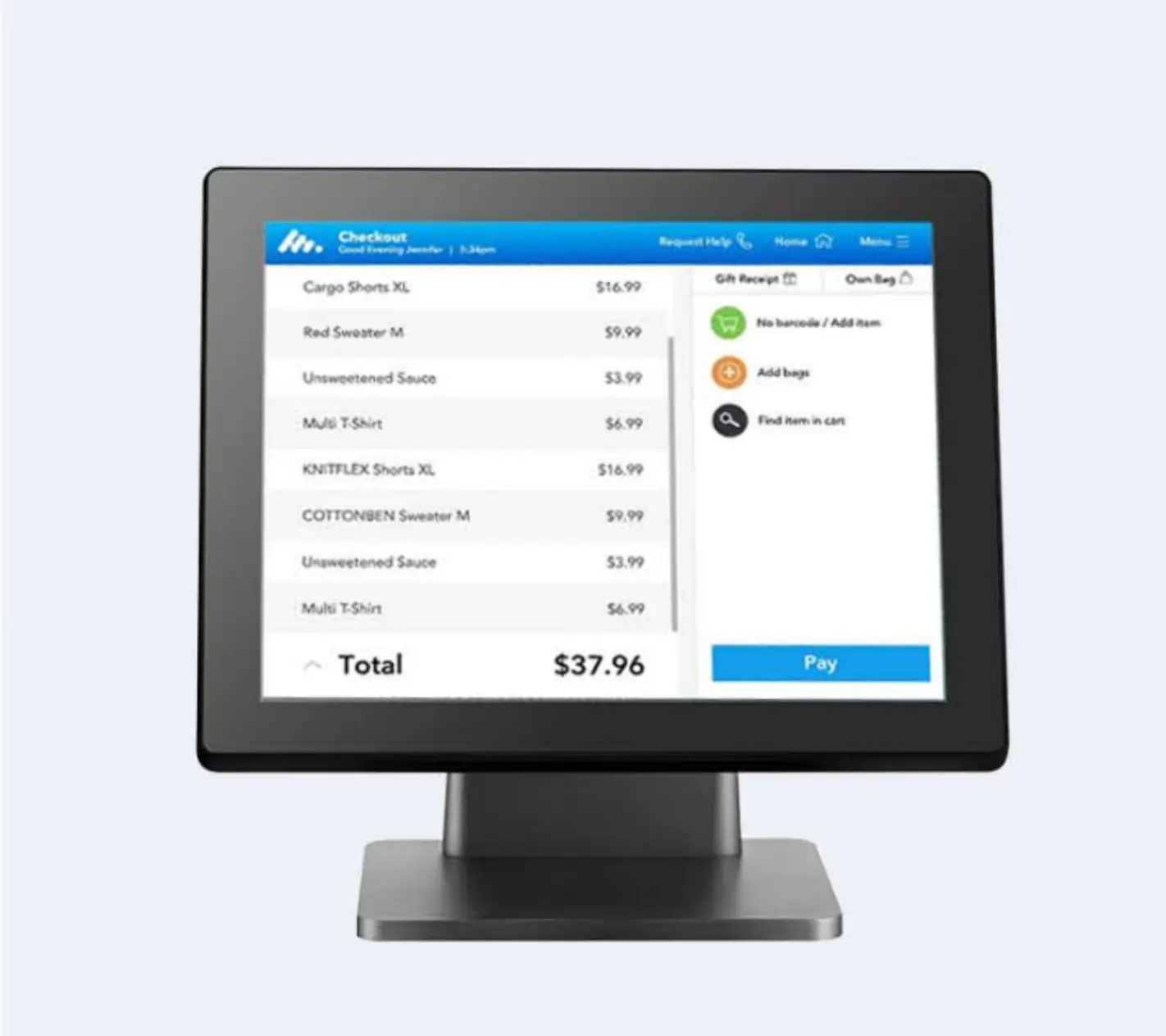

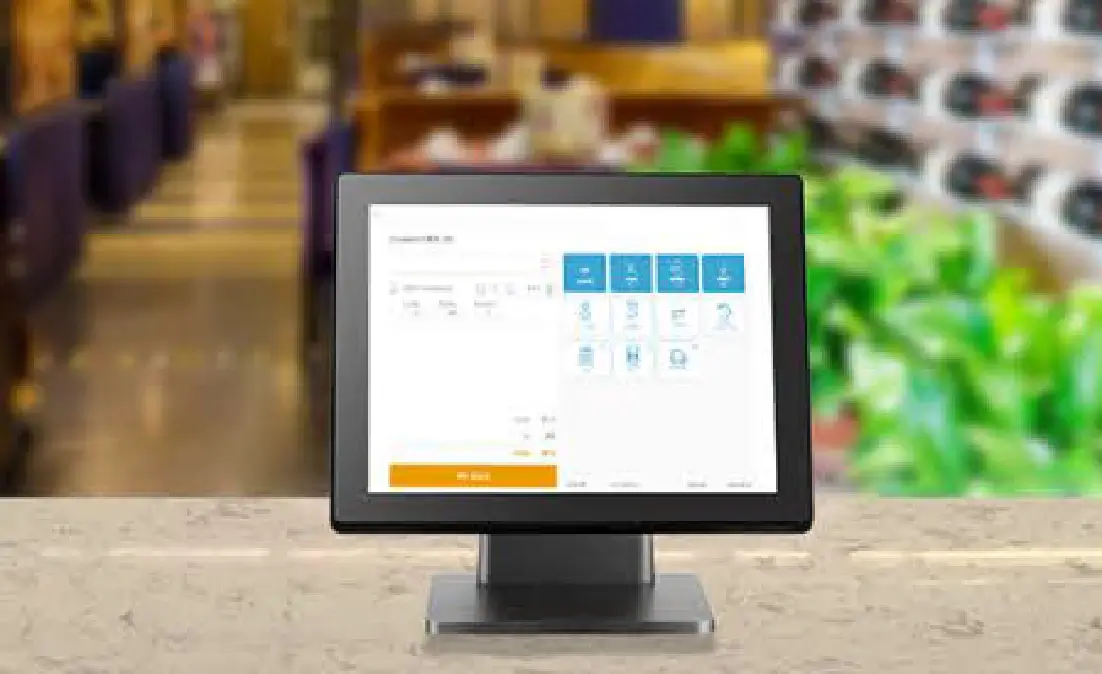

Checkout Experience

Streamlining Workflows

Enhance the checkout experience with a 15-inch ultra-bright screen, 10-point touch functionality, and highly responsive operation, minimizing wait times and boosting order accuracy.

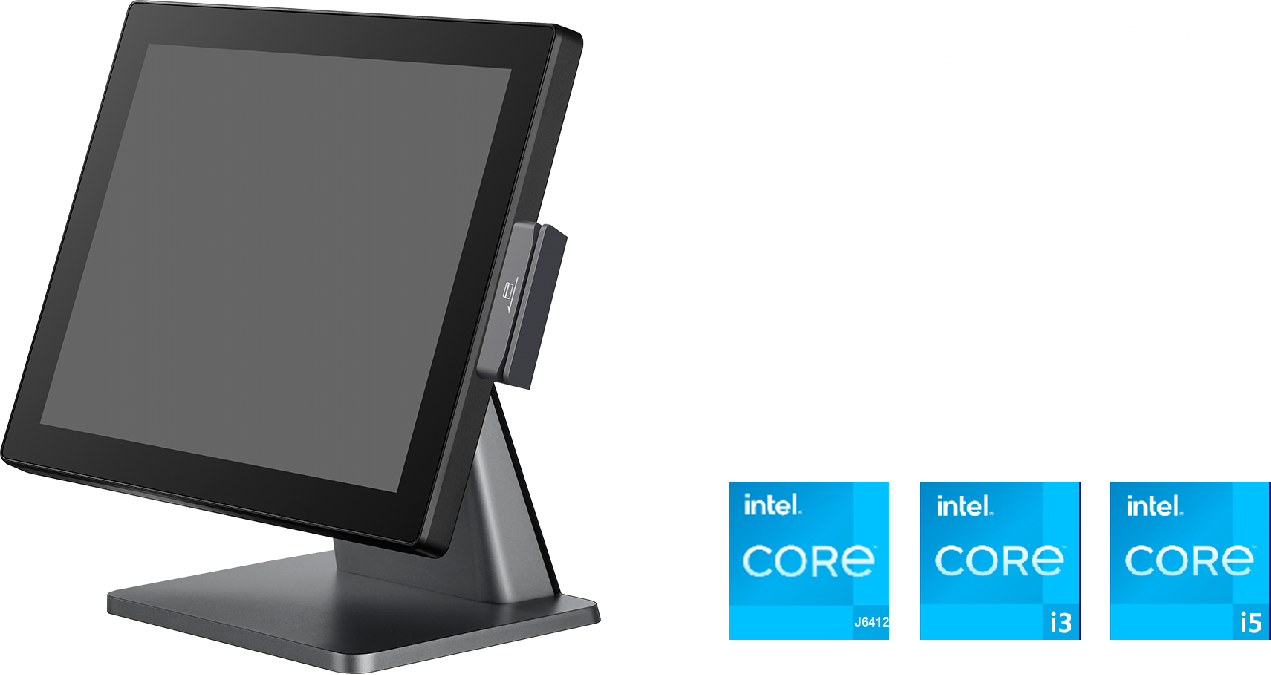

Fan-free Design

Smooth and Efficient Operation

Equipped with high-performance Intel® J6412, i3, or i5 11th/12th generation CPUs, this POS system delivers exceptional processing power, ensuring smooth and efficient operation for demanding business environments.

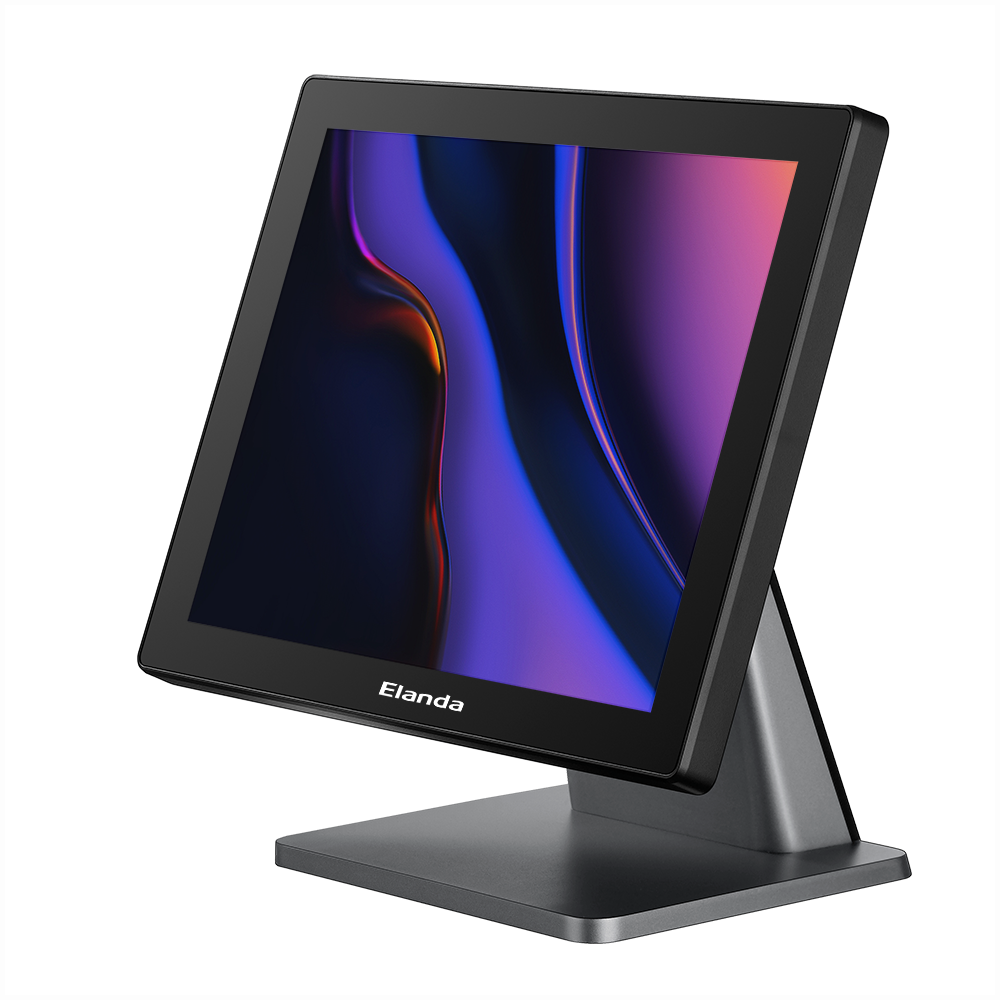

Sleek Robust Design
The full aluminum die-casting body and base significantly enhance the cooling performance, ensuring optimal heat dissipation. The robust metal construction not only delivers exceptional durability but also exudes a sleek industrial aesthetic, blending advanced functionality with a premium look and feel.

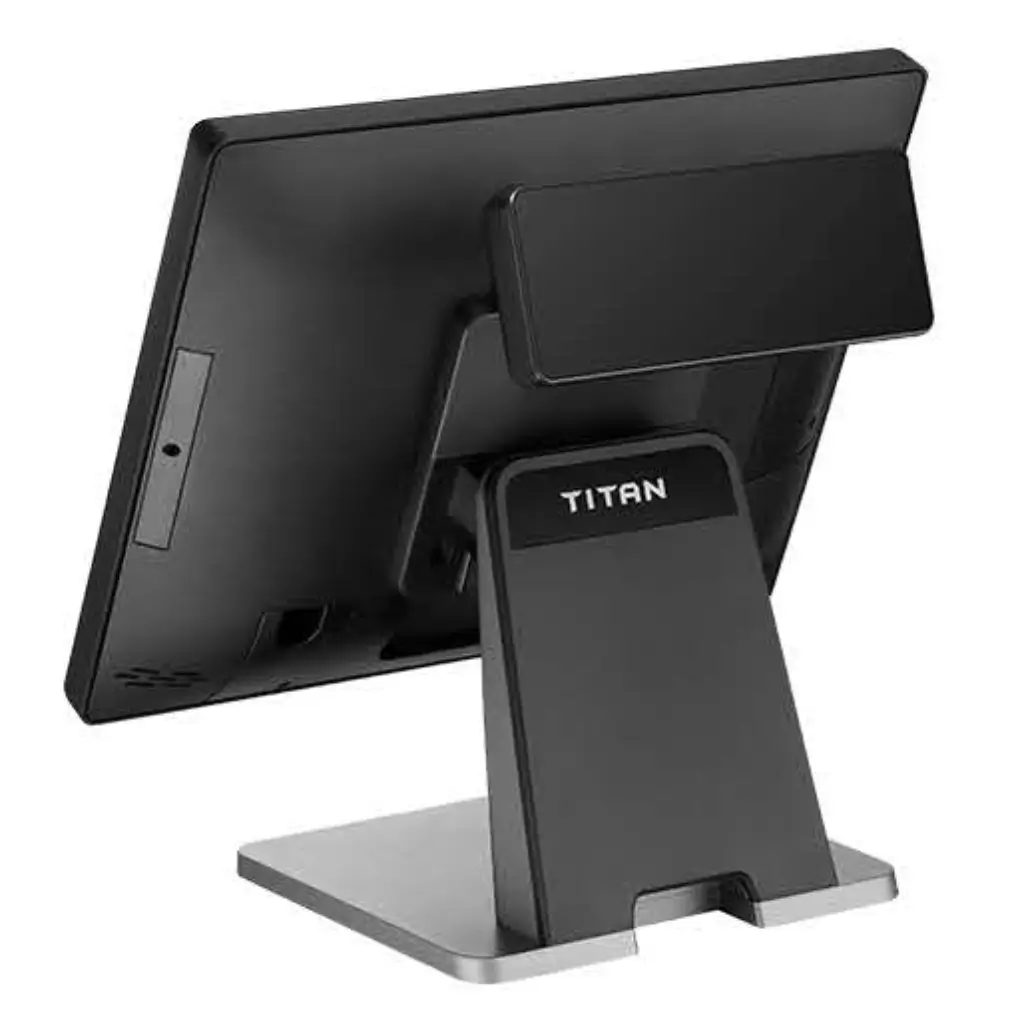

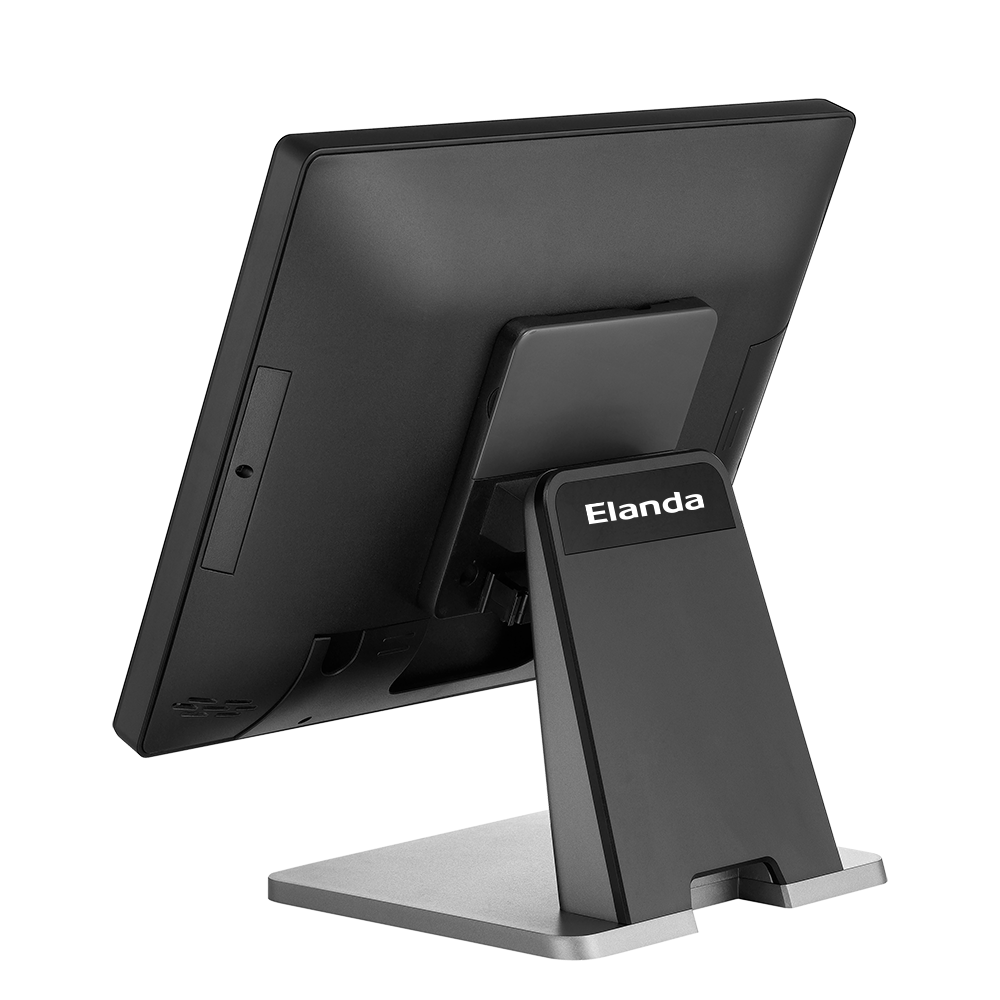

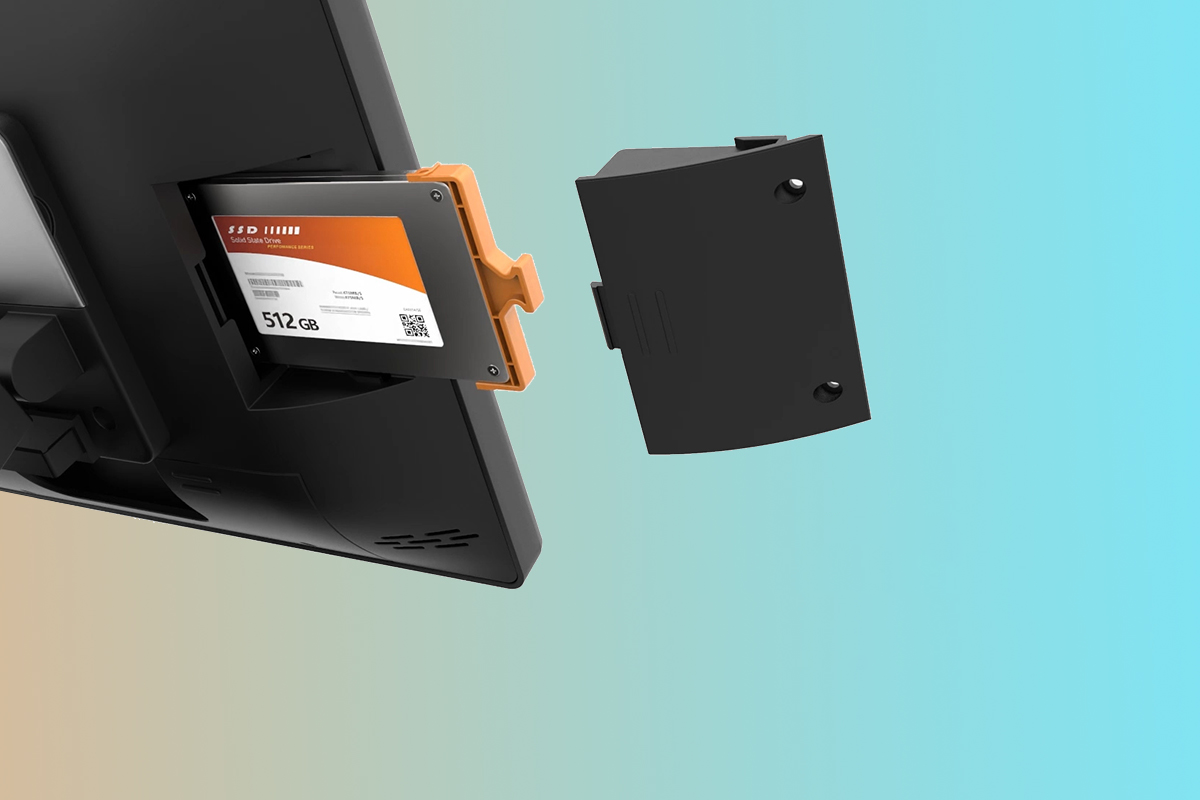

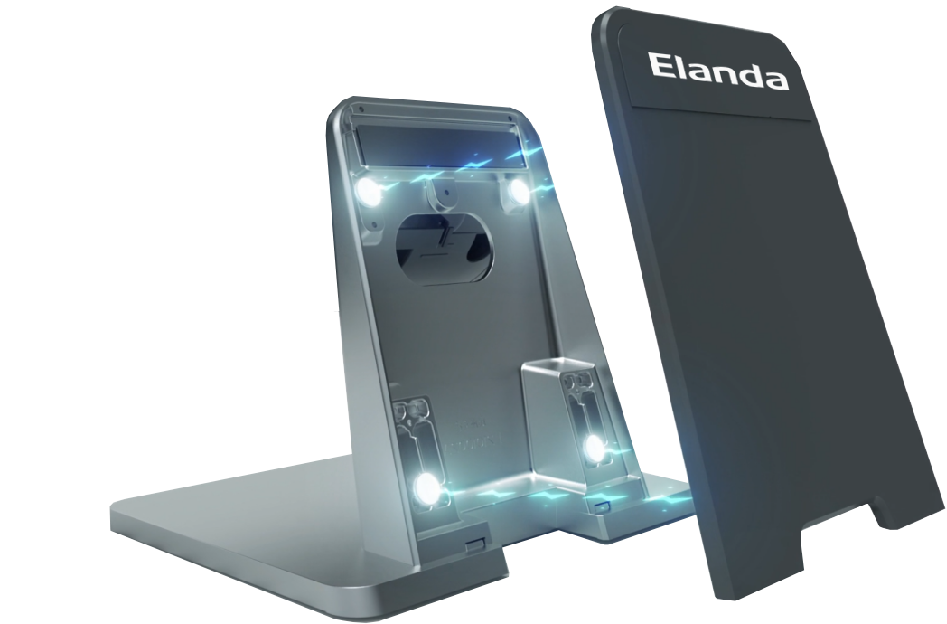

Innovation Magnetic Cover
Easy serviceability and keep your counter tidy.

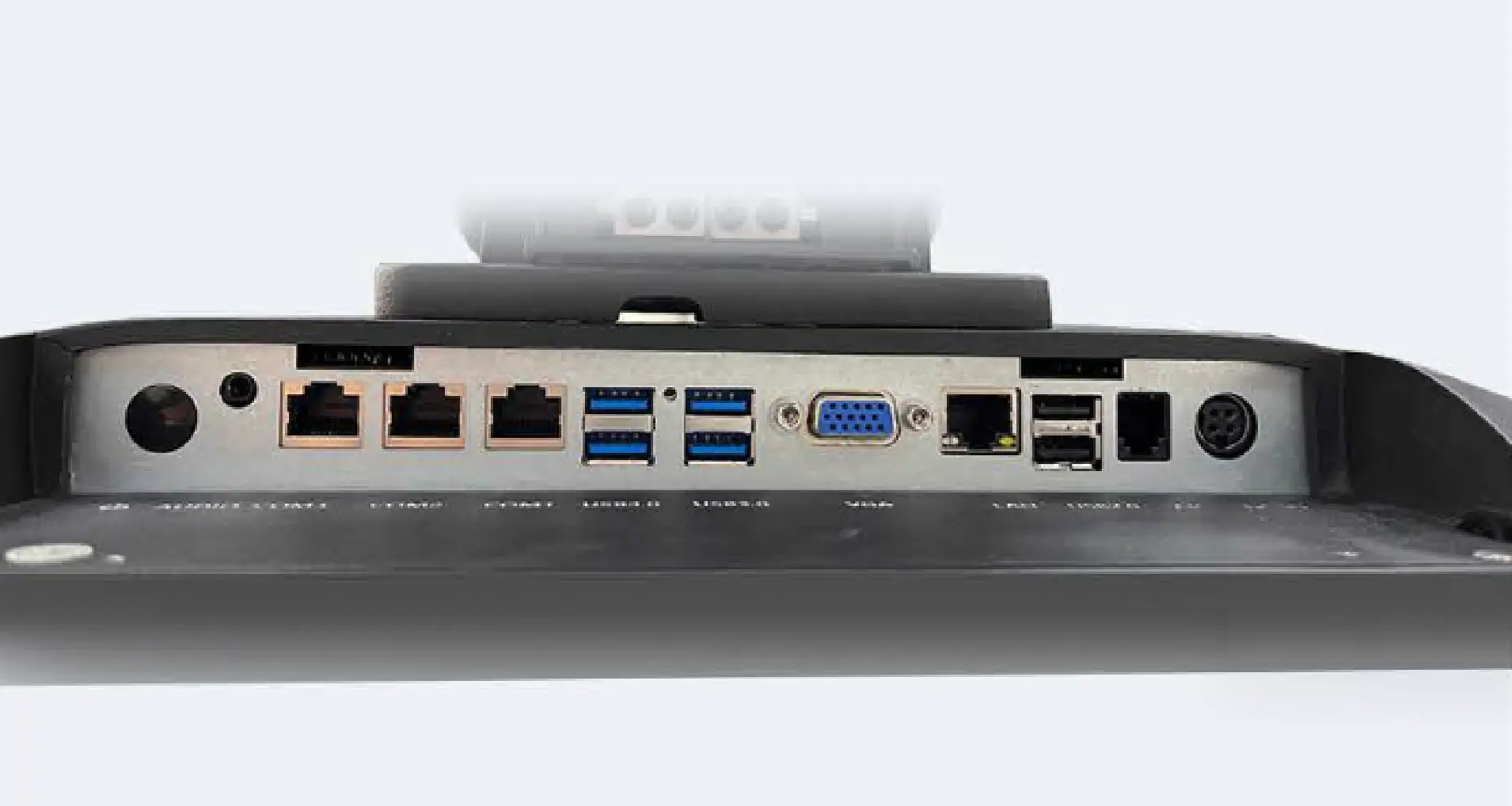

Connectivity for Accessories
Rich l/O interface that extends connectivity from the display to your accessories.

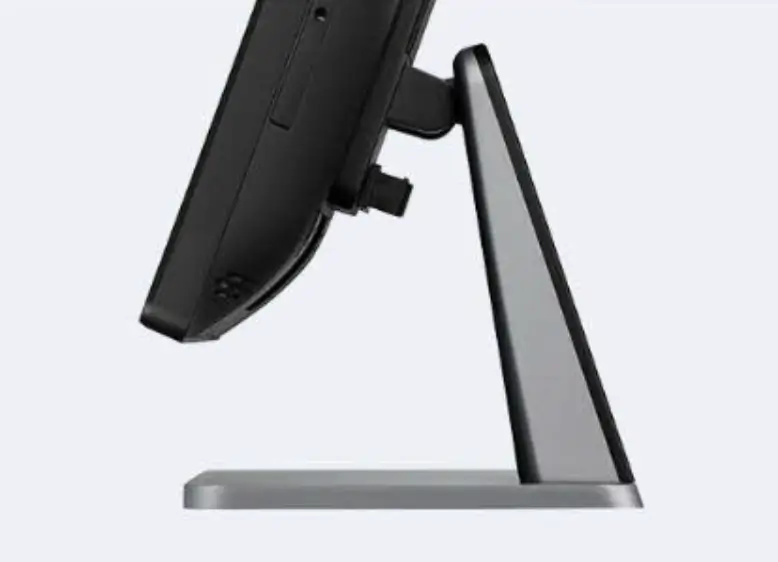

Clean Cable Management & Personalized Customization

Logo light optional to enhance your brand visibility.

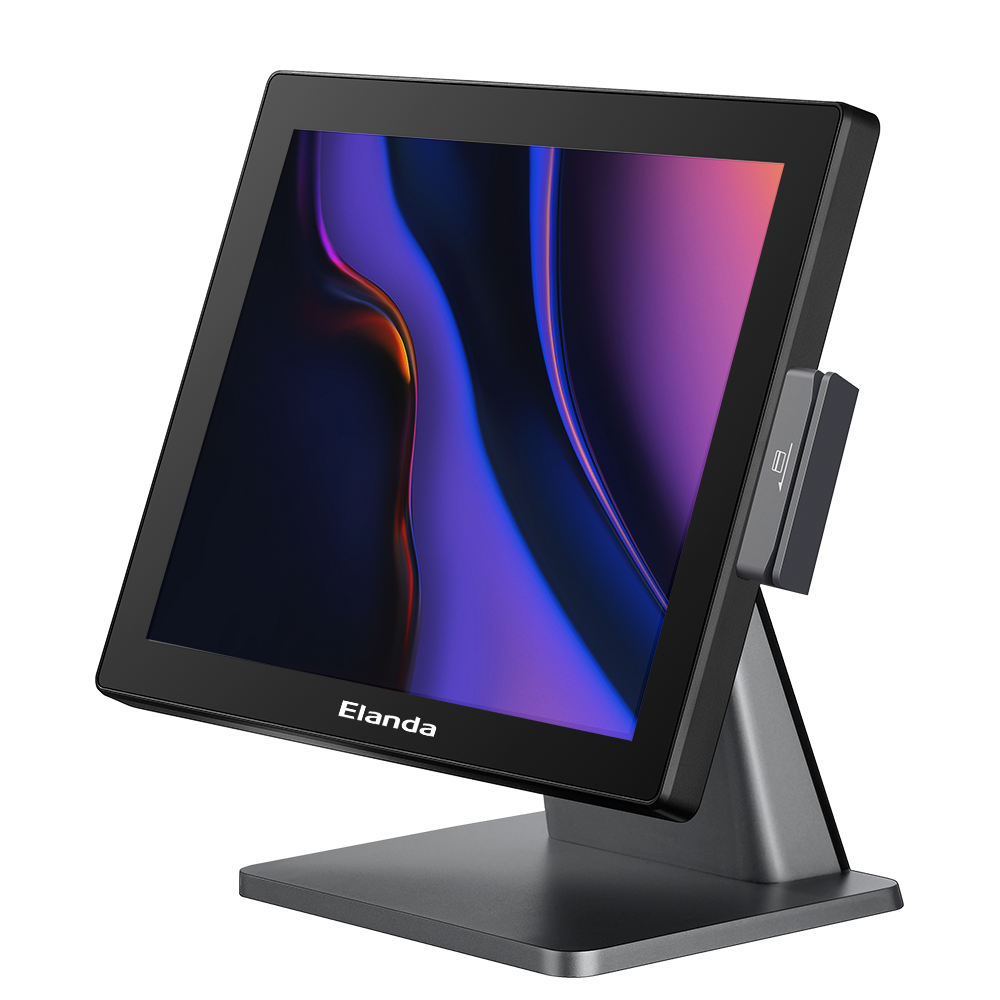

T3 Tech Specs

Product Model

T3

Display

15" TFT LCD Panel

OS

Windows10/11 LTSC/Ubuntu

Processor

Intel Elkhart Lake j6412 2.0GHz (Up to 2.6GHz,1.5MB Cache), Fan-free

Memory

1 x DDR4, SO-DIMM, 4GB (Max. 32GB)

Storage

1x 2.5” SATA SSD 128GB (64G/256G Optional )/1x mSATA-SSD (Optional)

Speaker

2 x 2W Speaker (Optional)

Network

1 x LAN (10/100/1000Mb)

WIFI/BT

mPCI-E WiFi/BT

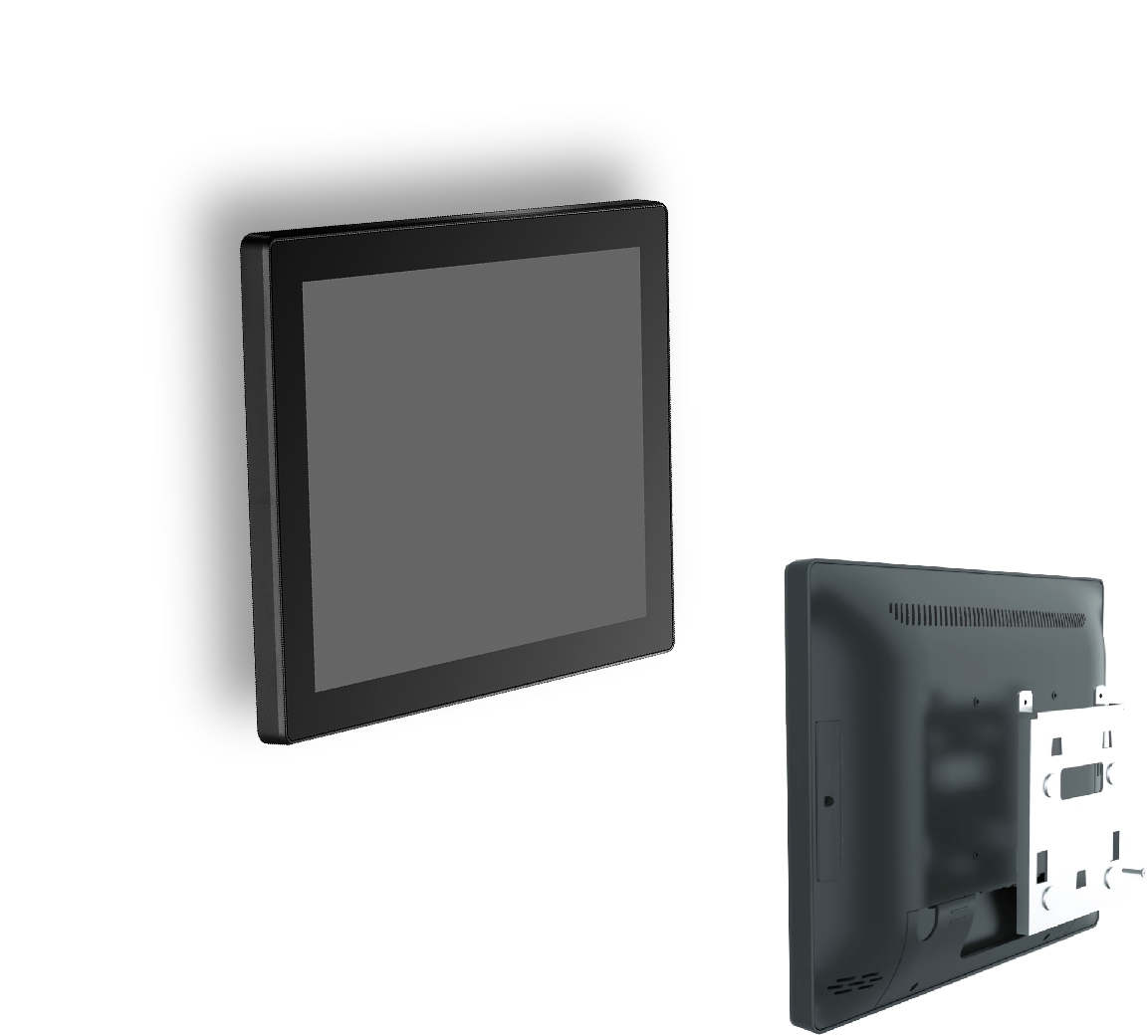

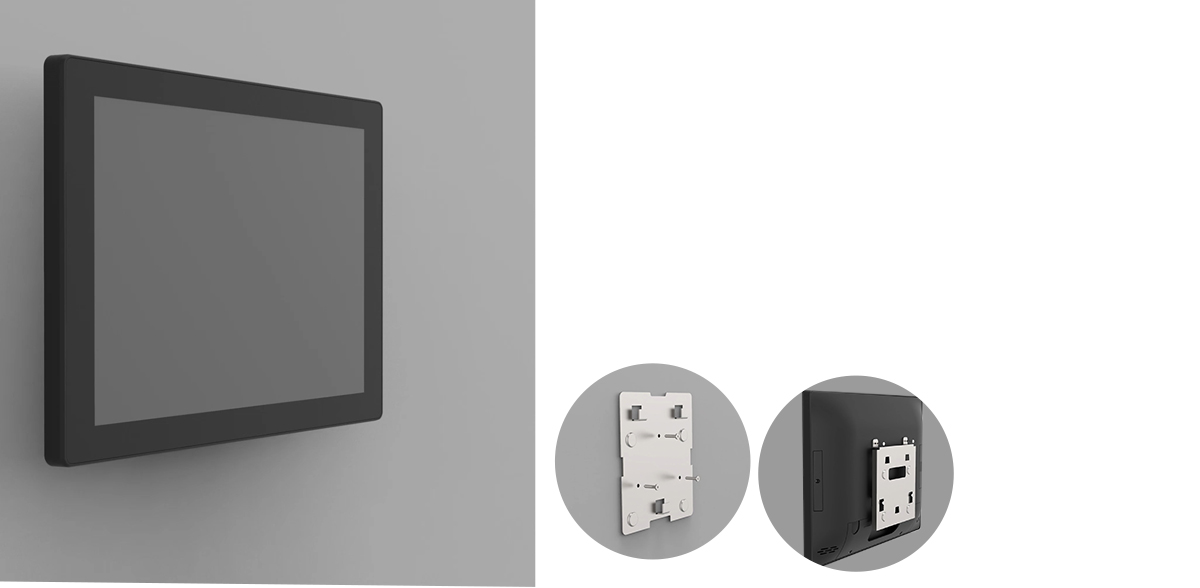

Wall Mount

VESA 100 x 100mm

Power Adaptor

External Power Adapter, 12V-5A/60W

Ports

4 x USB 3.0 + 2 x USB 2.0 3 x Serial Port (RJ50) 1 x VGA 1 x LAN (10/100/1000Mb) 1 x Mic-In/Speaker-out (Combo Jack) 1 x RJ11, 12V&24V
1 x DC In (4PIN)
1 x Power Switch

N.W./G.W.

15": 4.8Kg/6.9Kg

15"+11.6": 6.37Kg/8.4Kg

Environment

Operating temperature: 0°C~40°C

Storage temperature: -15°C~70°C

Customized Iogo Light

USB, White, 95X20X2.8mm (Optional)

Accessories

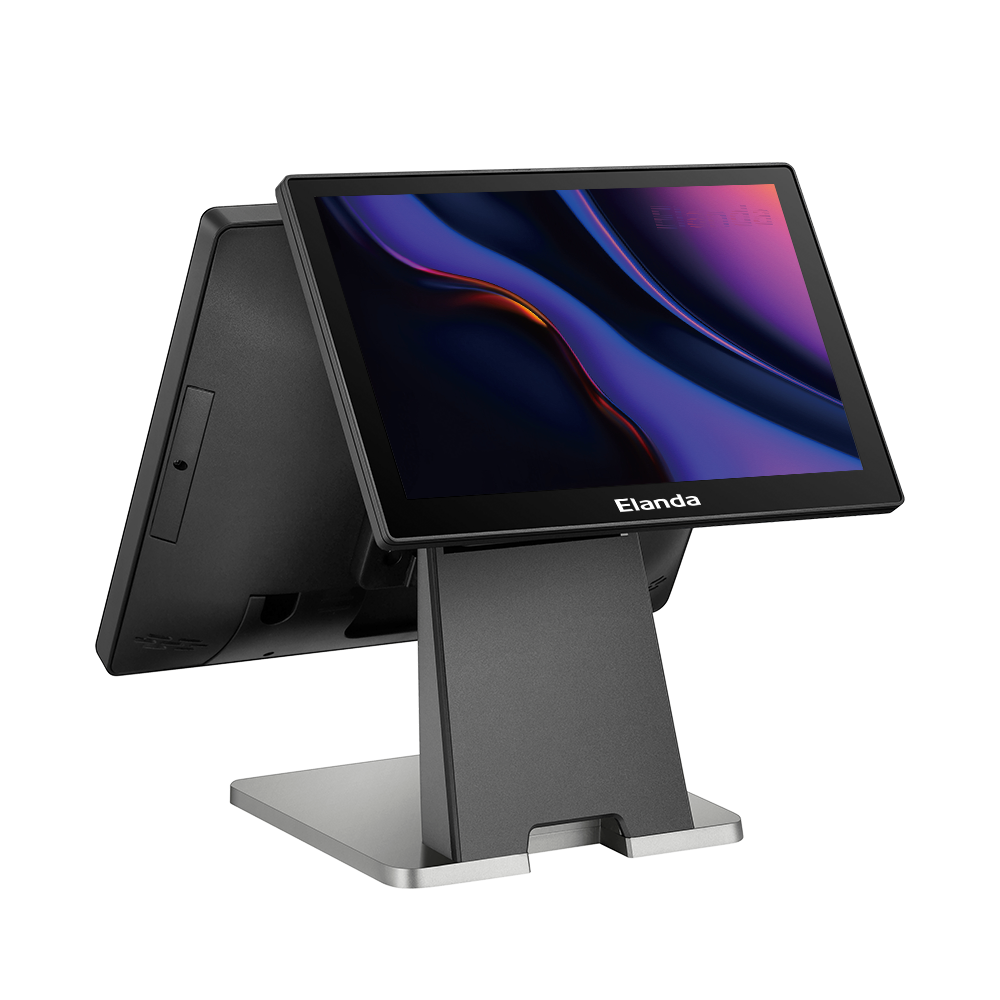

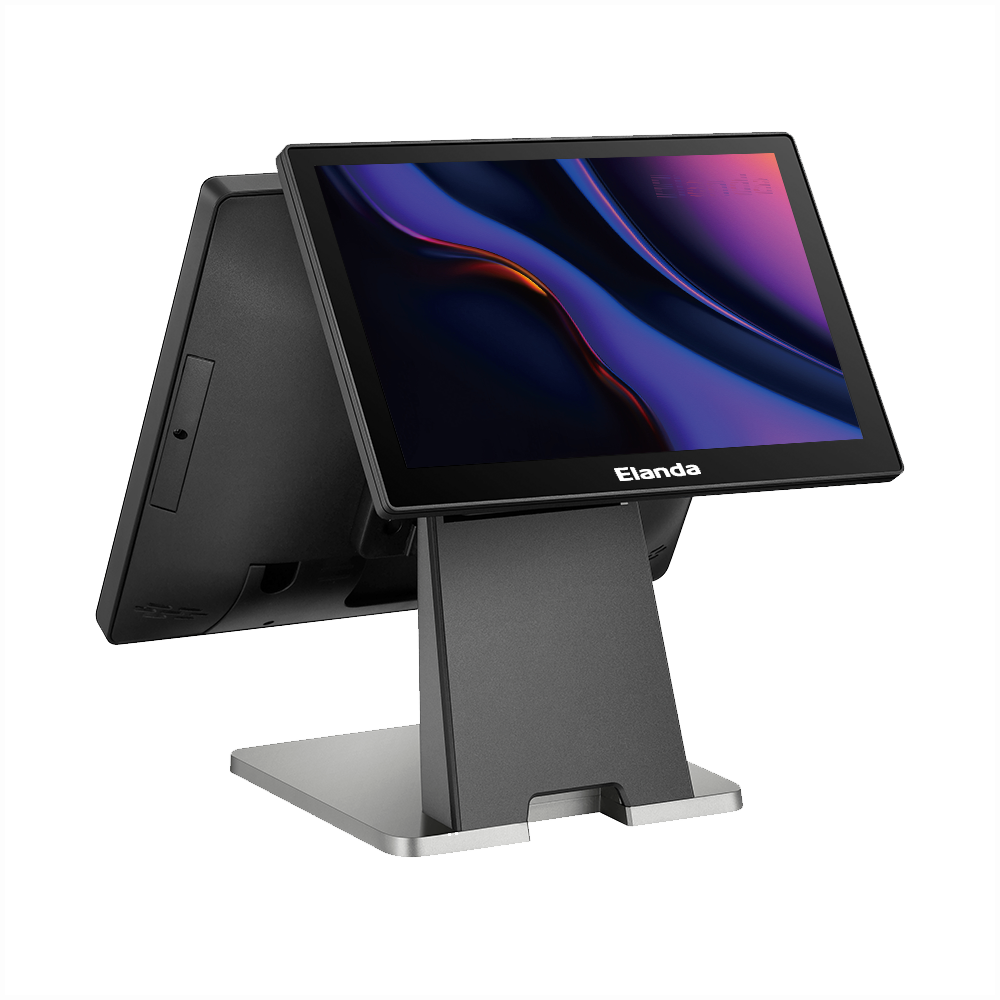

9.7" /11.6" second display/MSR/Barcode Scanner

Tilt Angle

0 ~ 60 Degree

EMC Safety

CE/FCC/UKCA/RoHS

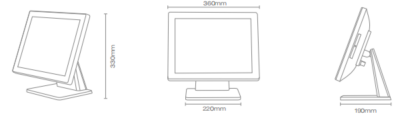

Dimensions (L*W*H)

15" 360 x 190 x 320mm

15"+11.6": 360 x 190 x 394mm

Product Model

T3

Display

15" TFT LCD Panel

OS

Windows10/11 LTSC/Ubuntu

Processor

i3 1115G4 3.0GHz (Up to 4.1GHz,6MB Cache), Fan-free/i5 1135G7 2.4GHz (Up to 4.2GHz,8MB Cache), Fan-free

Memory

1 x DDR4, SO-DIMM, 4GB (Max. 32GB)

Storage

1x SSD, 2242 128GB (64G/256G Optional )

Speaker

2 x 2W Speaker (Optional)

Network

1 x LAN (10/100/1000Mb)

WIFI/BT

WIFI/BT (WiFi2.4-5G/BT4.2 Optional)

Wall Mount

VESA 100 x 100mm

Power Adaptor

External Power Adapter, 24V-4A/96W

Ports

USB*6+Serial Port*1+HDMI*1+LAN*1 +RJ11*1+DC In*1 +DC12V*1+Power Switch*1

N.W./G.W.

15": 4.8Kg/6.9Kg

15"+11.6": 6.37Kg/8.4Kg

Environment

Operating temperature: 0°C~40°C

Storage temperature: -15°C~70°C

Customized Iogo Light

USB, White, 95X20X2.8mm (Optional)

Accessories

9.7"/11.6" second display/MSR/Barcode Scanner

Tilt Angle

0 ~ 60 Degree

EMC Safety

CE/FCC/UKCA/RoHS

Dimensions (L*W*H)

15" 360 x 190 x 320mm

15"+11.6": 360 x 190 x 394mm

Product Model

T3

Display

15" TFT LCD Panel

OS

Windows10/11 LTSC/Ubuntu

Processor

i3 1235U 2.4GHz (Up to 4.4GHz,12MB Cache), Fan-free

i5 1235U 2.4GHz (Up to 4.4GHz,12MB Cache), Fan-free

Memory

1 x DDR5, SO-DIMM, 4GB (Max. 32GB)

Storage

1x SSD, 2242 128GB (64G/256G Optional )

Speaker

2 x 2W Speaker (Optional)

Network

1 x LAN (10/100/1000Mb)

WIFI/BT

mPCI-E WiFi/BT

Wall Mount

VESA 100 x 100mm

Power Adaptor

External Power Adapter, 24V-4A/96W

Ports

USB*6+Serial Port*1+HDMI*1+LAN*1+RJ11*1+DC In*1 +DC12V*1+Power Switch*1

N.W./G.W.

15": 4.8Kg/6.9Kg

15"+11.6": 6.37Kg/8.4Kg

Environment

Operating temperature: 0°C~40°C

Storage temperature: -15°C~70°C

Customized Iogo Light

USB, White, 95X20X2.8mm (Optional)

Accessories

9.7"/11.6" second display/MSR/Barcode Scanner

Tilt Angle

0 ~ 60 Degree

EMC Safety

CE/FCC/UKCA/RoHS

Dimensions (L*W*H)

15" 360 x 190 x 320mm

15"+11.6": 360 x 190 x 394mm
