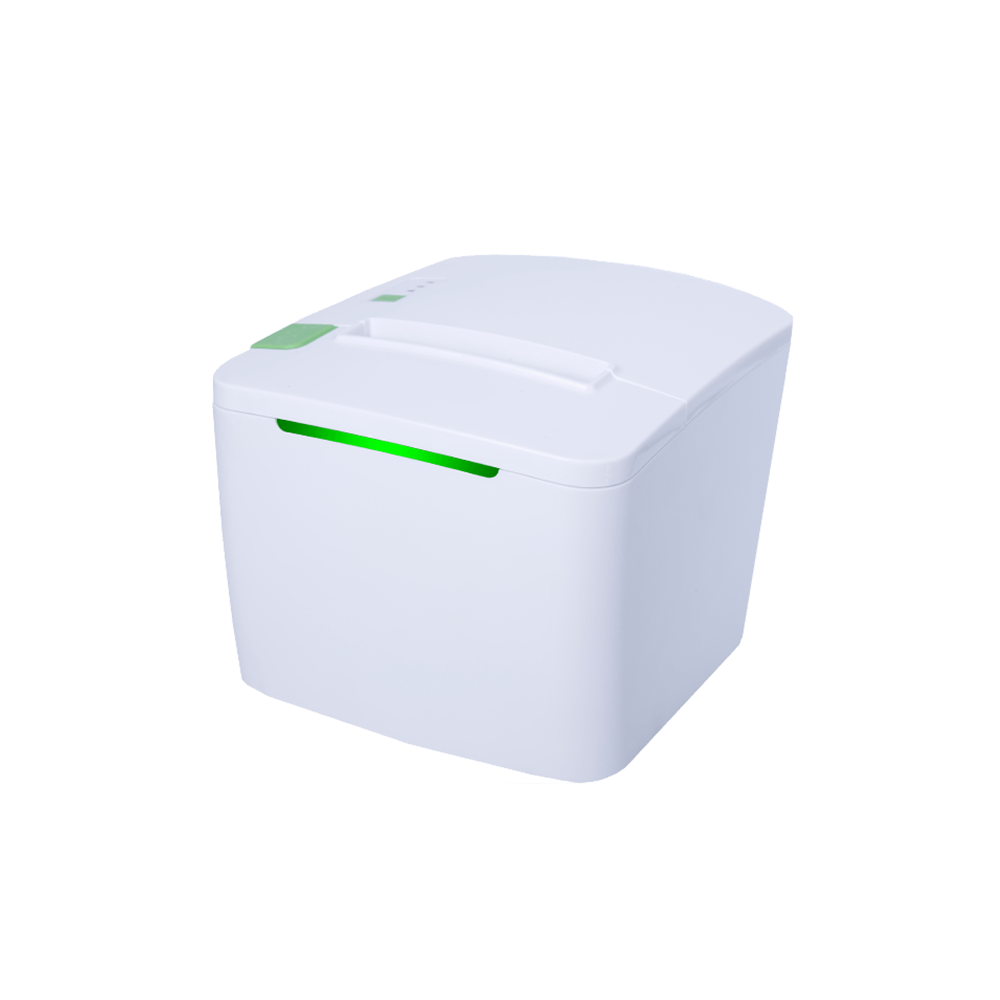

Thermal Printer E801
Compact size but reliable performance
Small Footprint – Saves valuable counter space
High-Speed Printing – Up to 250mm/s for fast transactions
Excellent Print Quality – Clear, crisp receipts every time
Durable Printhead – Rated for 150km of printing
Reliable Auto Cutter – Supports 1.5 million cuts
Flexible Connectivity – Optional WiFi or Bluetooth
Wall-Mount Option – For versatile installation needs
- High-Speed Printing – Up to 250mm/s for fast transactions
Excellent Print Quality – Clear, crisp receipts every time
Durable Printhead – Rated for 150km of printing
Flexible Connectivity – Optional WiFi or Bluetooth
E801 Specification
| Printer Ability | |
| Printing Method | Thermal Line Printing |
| Printing Density | 8 dots/mm,576 dots/line |
| Printing Speed | Max:250mm/s |
| Effective Printing Width Paper Width | 72mm80 mm±0.5mm |
| Printing Support | |
| Self-defining Character | Support |
| Graphic Printinc | Support different density point map and download bitmap printing |
| Font Size | "ANK characters,Font A:1.5×3.0mm(12×24pt); Font B:1.1×2.1mm(9×17pt)。National standard three-level character bank: simplified or traditional:3.0×3.0mm(24×24pt)" |
| Extended Functions | PC437、KataKana、PC850、PC860、PC863、PC865、WPC1251、PC866、MIK、PC755、Iran、Reserve、PC862、WPC1252、WPC1253、PC852、PC858、Iran Ⅱ、 Latvian、PC864、ISO-8859-1、PC737、WPC1257、Thai、PC720、PC855、PC857、WPC1250、PC775、WPC1254、WPC1255、WPC1256、WPC1258、ISO-8859-2、ISO-8859-3、ISO-8859-4、ISO-8859-5、ISO-8859-6、ISO-8859-7、ISO-8859-8、ISO-8859-9、ISO-8859-15、Thai2、PC856 |
| Barcode 1D | UPC-A;UPC-E;EAN-13;EAN-8;CODE39;CODE93;CODABAR;ITF25;CODE128 |
| Barcode 2D | PDF417;QRCODE;Data Matrix |
| Extended Functions | LAN,USB,COM,Bluetooth |
| Support Functions Cash Drawer Control | Sound alarm,lack paper alarm,black label detection,over-heat protection, cutter wrong position detection,top cover not tight detectionDC24V,1A,6wire RJ-11 plug |
| PowerDC Power | DC24V±10%,2A | ||
| Paper Specifications Paper Type | Thermal roll paper 80×080mm |
| Paper Thickness | 0.06mm~0.08mm |
| Loading Method | Simple to install |
| Cutting Method | Auto-cutting |
| Environmental | |
| Working | Temperature:5~50℃,humidity:10～80% |
| Storage | Temperature:-20～60℃,humidity:10~90% |
| Lifetime | |
| Reliability | Movement reliability 150 km,cutter lifetime 1,000,000 times |
