Restaurant
Enables waitstaff to take orders and process payments quickly and accurately, reducing wait times and improving table management flexibility. Its foldable design saves space, making it easier to accommodate in busy restaurant layouts, while its robust aluminum construction ensures it can handle the daily demands of a fast-paced dining environment.
Retail
Allowing staff to quickly and efficiently assist customers with checkout anywhere in the store. Its durable, foldable design ensures enhanced efficiency, making it perfect for high-traffic stores, ultimately improving customer satisfaction and the overall shopping experience.
Hospitality
Streamlines front desk check-ins, reservations, and guest requests. Its compact and durable aluminum casing is built to withstand the high-frequency use in hotel environments, offering mobility and long-lasting stability, which enhances overall customer service and operational efficiency.
Aluminum Die-Casting Base
Built with a durable aluminum die-cast base, the device offers both strength and support for aesthetic customization—blending industrial-grade reliability with a look tailored to your brand.
Fan-free Design
Powered by Intel® N97, J6412 and i3/i5 11th CPUs, delivers reliable performance at a competitive price.

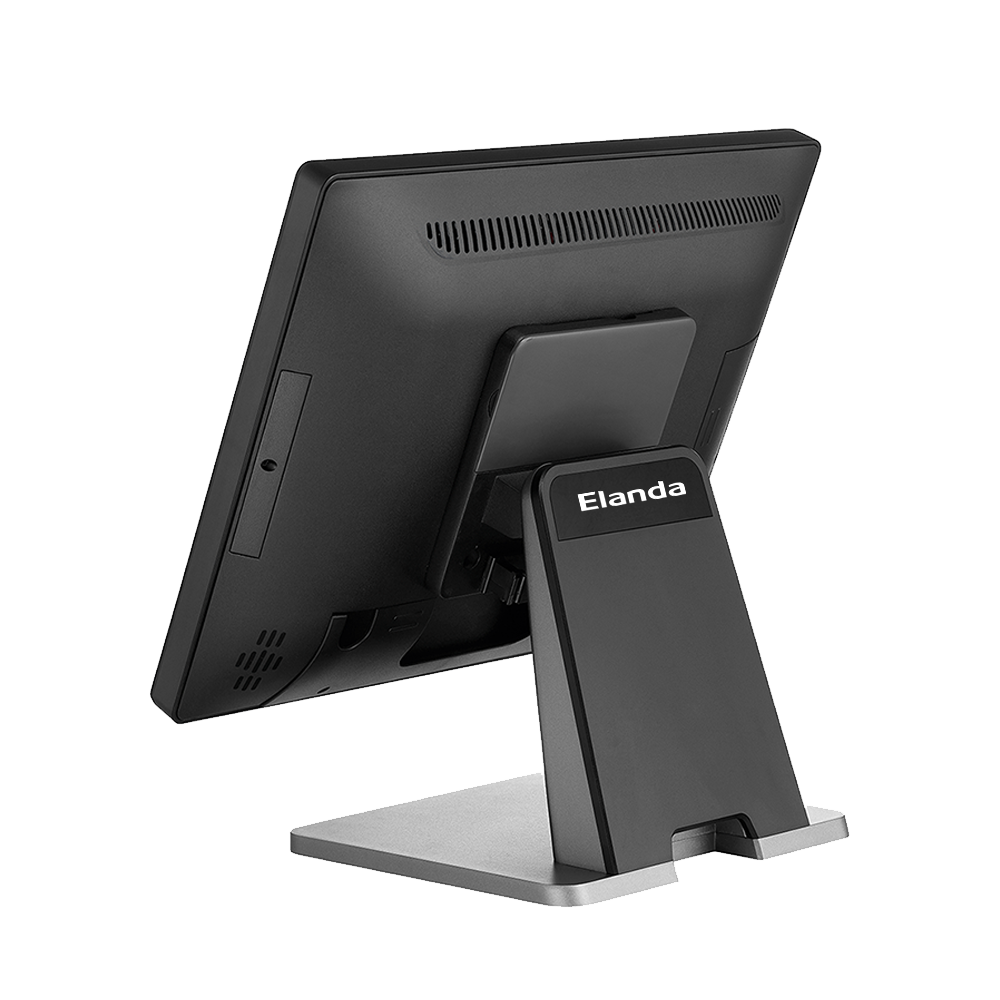

Robust Aluminum Die-Casting Base
Built with a durable aluminum die-cast base, the device offers both strength and support for aesthetic customization—blending industrial-grade reliability with a look tailored to your brand.
Wall Mount
Supports both wall-mount installation and desktop placement, adaptable to diverse applications and scenarios.

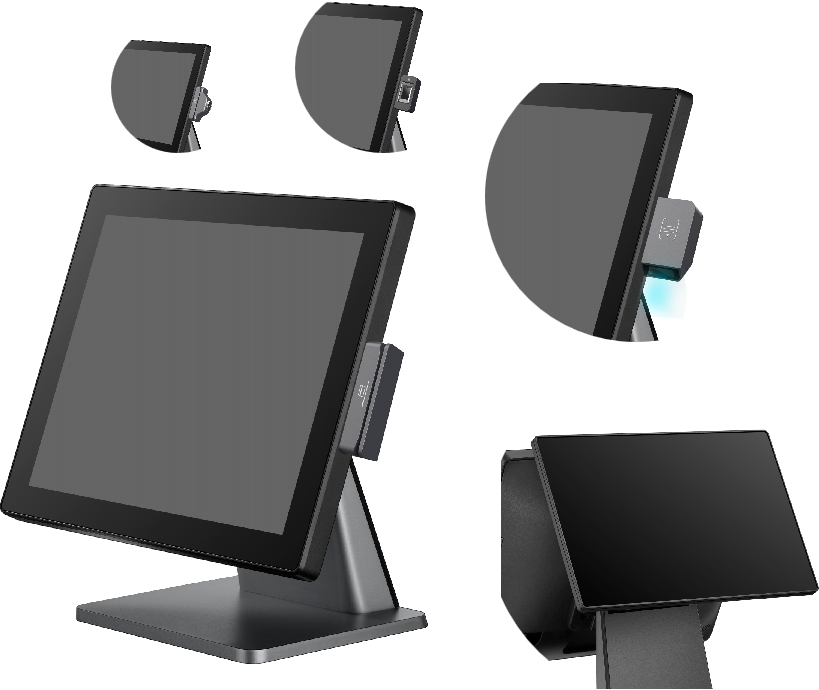

Personalized customization
Magnetic Base Cover with logo light customization

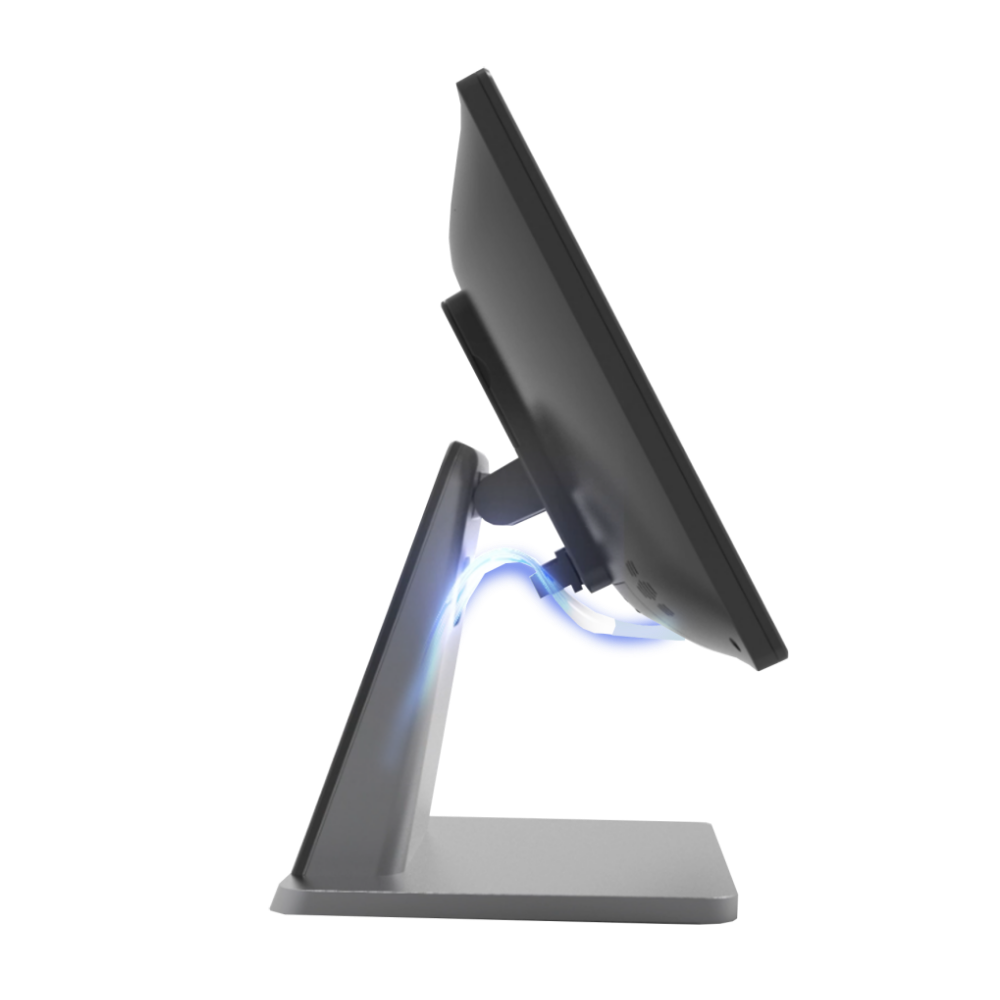

Clean Cable Management & Personalized Customization
Seamlessly blend into the display space, providing a sleek, non-intrusive presence. The flat form ensures easy access for customers to view product details and check out without the POS unit interfering with product displays.

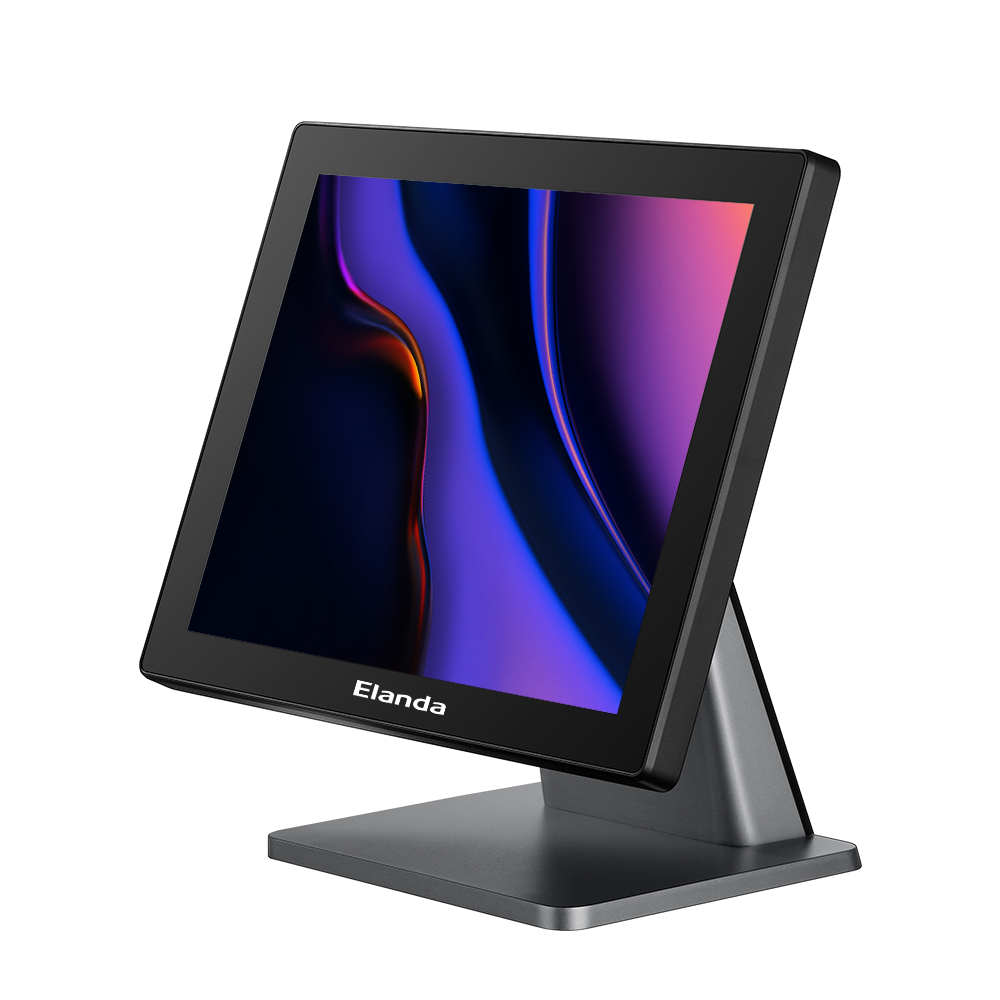

T1e Tech Specs
Product Model
T1e
Display
15" TFT LCD Panel
Os
Windows10/11 LTSC/Ubuntu
Processor
Intel® Celeron® Processor J6412
1.5M Cache, up to 2.60 GHz, Fan-Free
Memory
1 x DDR4, SO-DIMM, 4GB (Max. 32GB)
Storage
1 x M.2 2242 SSD 128GB (256G/512G Optional )
Resolution
1024*768
Network
1 x LAN (10/100/1000Mb)
WIFI/BT
WiFi2.4-5G/BT4.2 On Board
Wall Mount
VESA 100 x 100mm
Power Adaptor
External Power Adapter, 12V-5A/60W
Ports
4 x USB 3.0 + 2 x USB 2.0
2 x Serial Port (RJ50)
1 x HDMI
1 x LAN (10/100/1000Mb)
1 x RJ11, 12V&24V
1 x DC In (4PIN)
1 x DC12V-Max. 2A
1 x Power Switch
2 x Serial Port (RJ50)
1 x HDMI
1 x LAN (10/100/1000Mb)
1 x RJ11, 12V&24V
1 x DC In (4PIN)
1 x DC12V-Max. 2A
1 x Power Switch
N.W./G.W.
15": 4.6Kg / 6.7KG
15"+11.6": 5.1KG/7.9KG
15"+11.6": 5.1KG/7.9KG
Environment
Operating temperature: 0°C~40°C
Storage temperature: -15°C～70°C
Storage temperature: -15°C～70°C
Speaker
2 x 2W Speaker (Optional)
Accessories

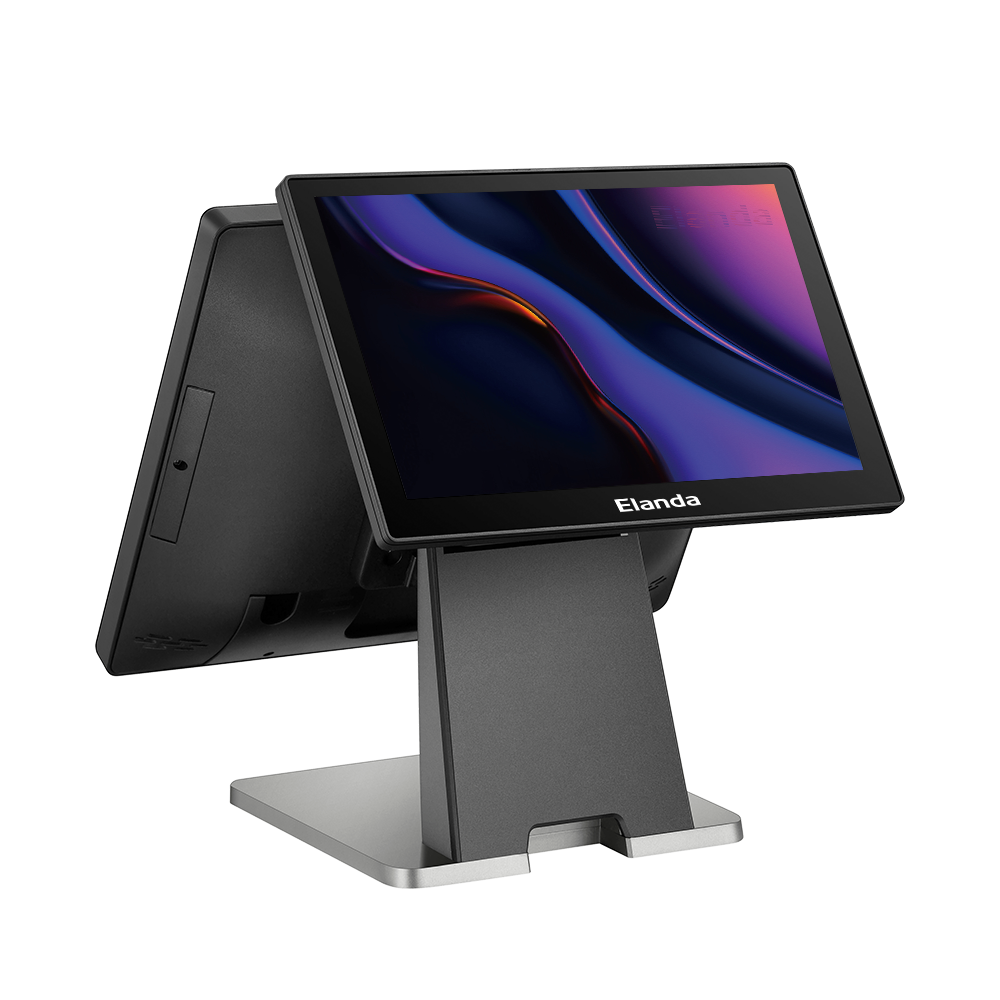

11.6" Second Display/MSR/Barcode Scanner

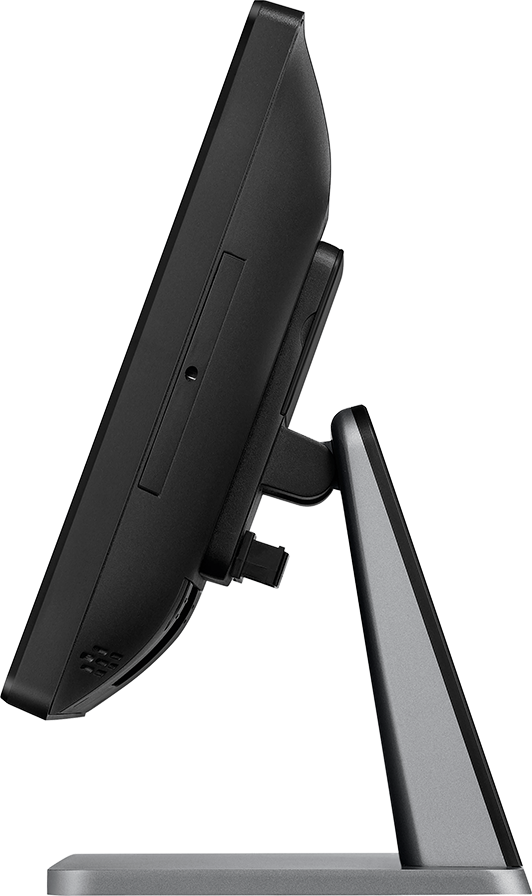

Tilt Angle
0 ~60 Degree
EMC Safety
CE/FCC/UKCA/RoHS
Dimensions (L*W*H)
15" 360mm x 190mm x 320mm
15"+11.6" 360mm x 190mm x 394mm
15"+11.6" 360mm x 190mm x 394mm
Product Model
T1e
Display
15" TFT LCD Panel
OS
Windows10/11 LTSC/Ubuntu
Processor
Intel® Processor N97 6M Cache, up to 3.60 GHz, Fan-Free
Memory
1 x DDR4, SO-DIMM, 4GB (Max. 32GB)
Storage
1 x m.2 2280 128GB (256GB/512GB Optional), NVME/SATA Adaptive
Resolution
1024*768
Network
1 x LAN (10/100/1000Mb)
WIFI/BT
M.2 Key-E Slot 2230 WiFi2.4-5G/BT4.0 (Optional)
Wall Mount
VESA 100 x 100mm
Power Adaptor
External Power Adapter, 12V-5A/60W
Ports
3 x USB 3.0 + 3 x USB 2.0
2 x RJ48
1 x HDMI
1 x LAN (10/100/1000Mb)
1 x Mic-in/Speaker-out (Combo Jack)
1 x RJ11, 12V&24V
1 x DC In (4PIN)
1 x DC12V-Max. 2A
1 x Power Switch
2 x RJ48
1 x HDMI
1 x LAN (10/100/1000Mb)
1 x Mic-in/Speaker-out (Combo Jack)
1 x RJ11, 12V&24V
1 x DC In (4PIN)
1 x DC12V-Max. 2A
1 x Power Switch
Weight
15": 4.2Kg / 6.3KG
15"+11.6": 5.4KG/7.5KG
15"+11.6": 5.4KG/7.5KG
Environment
Operating temperature: 0°C~40°C
Storage temperature: -15°C～70°C
Storage temperature: -15°C～70°C
Speaker
2 x 2W Speaker (Optional)
Accessories
11.6" Second Display/MSR/Barcode Scanner
Tilt Angle
0 ~ 120 Degree
EMC Safety
CE/FCC/UKCA/RoHS
Dimensions (L*W*H)
15" 360mm x 190mm x 320mm
15"+11.6" 360mm x 190mm x 394mm
15"+11.6" 360mm x 190mm x 394mm
Product Model
T1e
Display
15" TFT LCD Panel
OS
Windows10/11 LTSC/Ubuntu
Processor
Intel® Core™ i3-1115G4 Processor
6M Cache, up to 4.10 GHz, Fan
Intel® Core™ i5-1135G7 Processor 8M Cache, up to 4.20 GHz, Fan
Intel® Core™ i5-1135G7 Processor 8M Cache, up to 4.20 GHz, Fan
Memory
1 x DDR4, SO-DIMM, 4GB (Max. 32GB)
Storage
1 x mSATA SSD 128G (256G/512G Optional )
Resolution
1024*768
Network
1 x LAN (10/100/1000Mb)
WIFI/BT
mPCI-E WiFi2.4-5G/BT4.2 (Optional)
Wall Mount
VESA 100 x 100mm
Power Adaptor
External Power Adapter, 12V-7A/84W
Ports
4 x USB 3.0 + 2 x USB 2.0
2 x Serial Port (RJ50)
1 x VGA
2 x HDMI
1 x LAN (10/100/1000Mb)
1 x DC In (4PIN)
1 x DC12V-Max. 2A
1 x Power Switch
2 x Serial Port (RJ50)
1 x VGA
2 x HDMI
1 x LAN (10/100/1000Mb)
1 x DC In (4PIN)
1 x DC12V-Max. 2A
1 x Power Switch
N.W./G.W.
15": 4.2Kg / 6.3KG
15"+11.6": 5.4KG/7.5KG
15"+11.6": 5.4KG/7.5KG
Environment
Operating temperature: 0°C~40°C
Storage temperature: -15°C～70°C
Storage temperature: -15°C～70°C
Speaker
2 x 2W Speaker (Optional)
Accessories
11.6" Second Display/MSR/Barcode Scanner
Tilt Angle
0 ~ 60 Degree
EMC Safety
CE/FCC/UKCA/RoHS
Dimensions (L*W*H)
15" 360mm x 190mm x 320mm
15"+11.6" 360mm x 190mm x 394mm
15"+11.6" 360mm x 190mm x 394mm
Supports And Downloads
Product Images
ZIP(62.56MB)
https://www.elandapos.com/wp-conte
Product Datasheet
PDF(1.14MB)
https://www.elandapos.com/wp-content/uploads/2025/04/T1e-20250305-Brochure.pdf
Open Box Video
MP4(317.2MB)
https://youtu.be/FLXcwaMyZfU
Functions Demo Video
MP4(45.33MB)
https://youtu.be/FLXcwaMyZfU
