Restaurant
Enables waitstaff to take orders and process payments quickly and accurately, reducing wait times and improving table management flexibility. Its foldable design saves space, making it easier to accommodate in busy restaurant layouts, while its robust aluminum construction ensures it can handle the daily demands of a fast-paced dining environment.
Retail
Allowing staff to quickly and efficiently assist customers with checkout anywhere in the store. Its durable, foldable design ensures enhanced efficiency, making it perfect for high-traffic stores, ultimately improving customer satisfaction and the overall shopping experience.
Hospitality
Streamlines front desk check-ins, reservations, and guest requests. Its compact and durable aluminum casing is built to withstand the high-frequency use in hotel environments, offering mobility and long-lasting stability, which enhances overall customer service and operational efficiency.
Better user experience
15.6-inch larger display — designed for enhanced visibility, smoother operations, and a more immersive user experience.

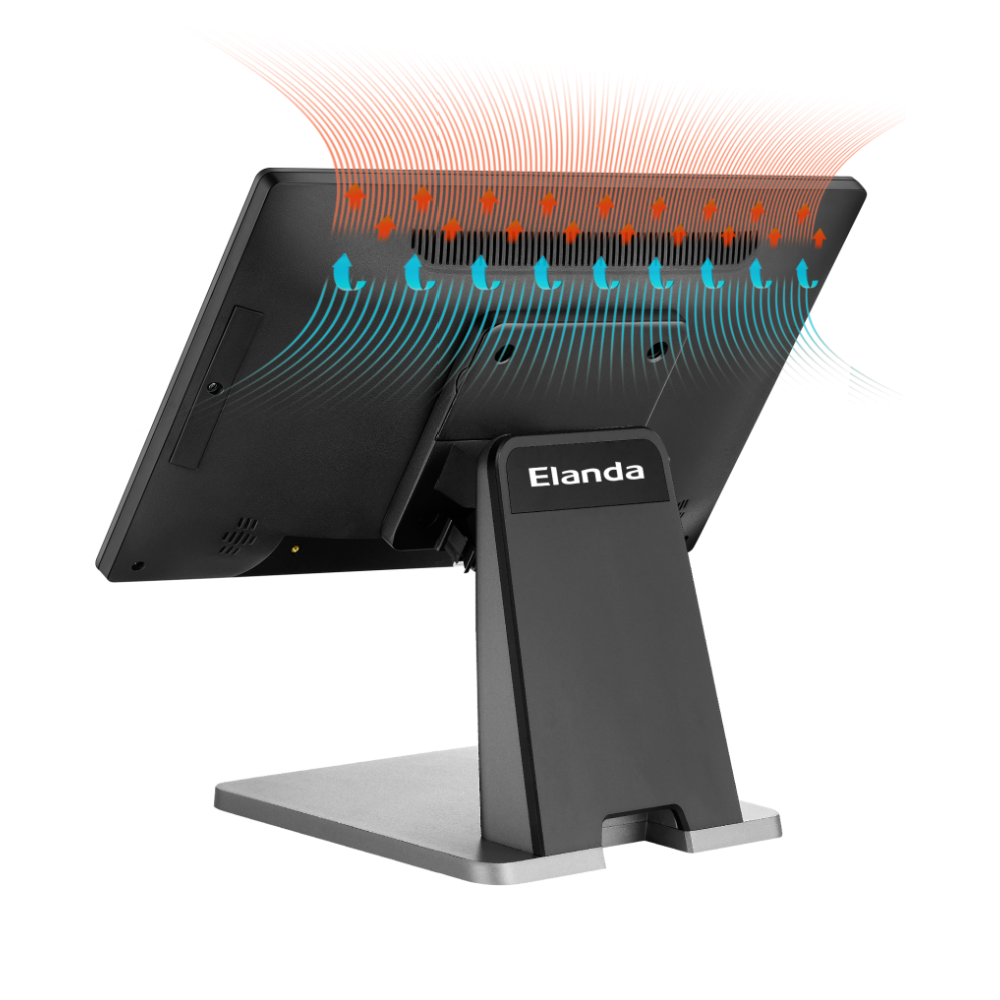

Fan-free Design
Powered by Intel® N97, J6412, and i3 11th generation processors, strikes the perfect balance between performance and affordability. Ideal for growing businesses, it ensures stable operation and smooth multitasking for daily retail and hospitality workflows.

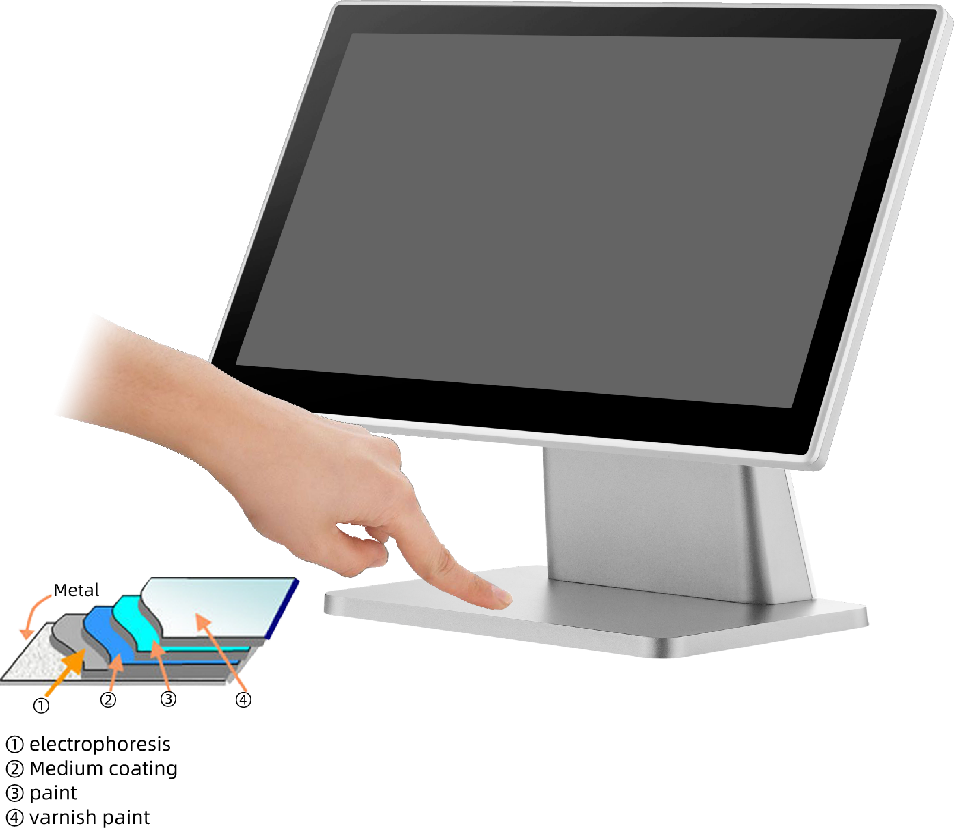

Sleek Robust Design
The aluminum die-cast base not only enhances durability but also delivers a sleek, industrial aesthetic—combining robust functionality with a modern, premium design.
Wall Mount
Supports both wall-mount installation and desktop placement, adaptable to diverse applications and scenarios.
Personalized customization
Magnetic Base Cover with logo light customization
Clean Cable Management & Personalized Customization
Seamlessly blend into the display space, providing a sleek, non-intrusive presence. The flat form ensures easy access for customers to view product details and check out without the POS unit interfering with product displays.

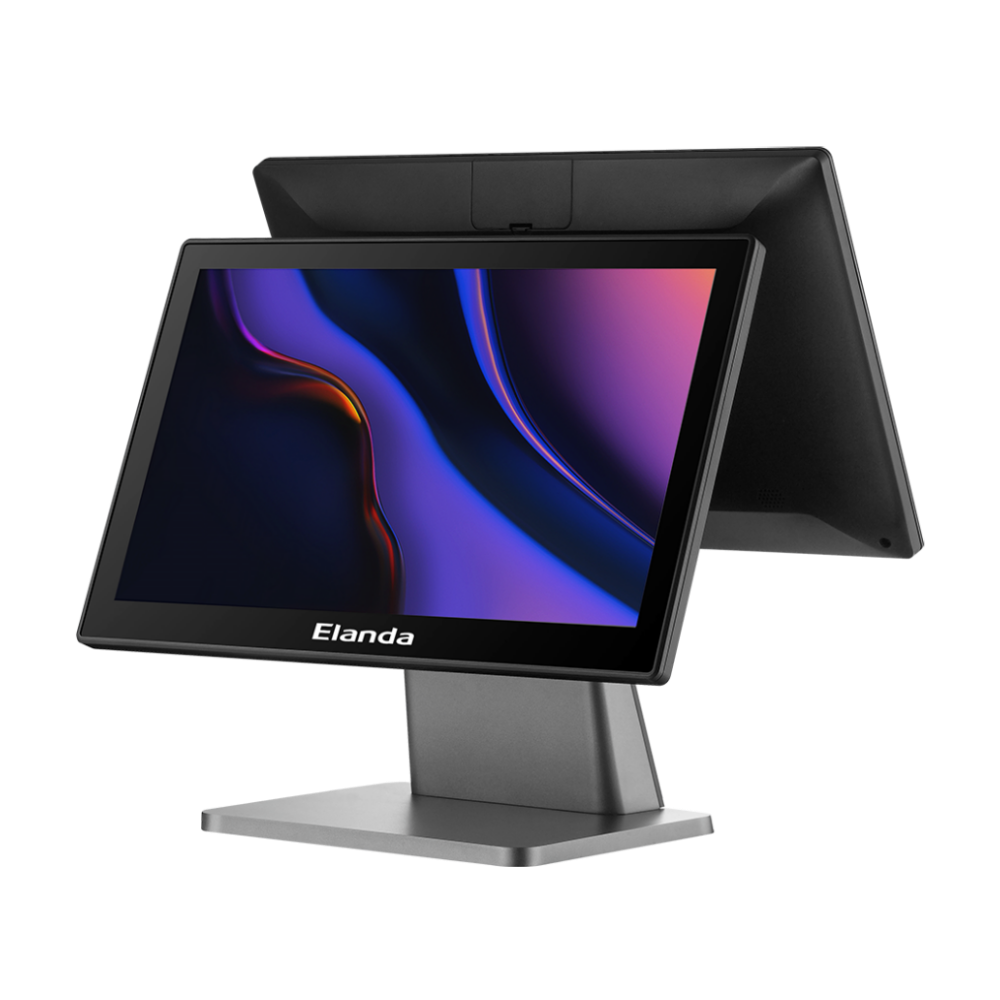

T5 Tech Specs
Product Model
T5
Display
15.6" TFT LCD Panel
Os
Windows10/11 LTSC/Ubuntu
Processor
1.5M Cache, up to 2.60 GHz, Fan-Free
Memory
1 x DDR4, SO-DIMM, 4GB (Max. 32GB)
Storage
1 x mSATA 128GB (256GB/512GB Optional)
Resolution
1920 x 1080 (1366 x 768 Optional)
Network
1 x LAN (10/100/1000Mb)
WIFI/BT
mPCI-E WiFi2.4-5G/BT4.2 (Optional)
Wall Mount
VESA 100 x 100mm
Power Adaptor
External Power Adapter, 12V-5A/60W
Ports
4 x USB 3.0 + 2 x USB 2.0
3 x Serial Port (RJ50)
1 x HDMI
1 x VGA
1 x LAN (10/100/1000Mb)
1 x Mic-in/Speaker-out (Combo Jack)
1 x RJ11, 12V&24V
1 x DC In (4PIN)
1 x Power Switch
3 x Serial Port (RJ50)
1 x HDMI
1 x VGA
1 x LAN (10/100/1000Mb)
1 x Mic-in/Speaker-out (Combo Jack)
1 x RJ11, 12V&24V
1 x DC In (4PIN)
1 x Power Switch
N.W./G.W.
15.6": 3.5KG/5.4KG
15.6"+11.6": 5.1KG/6.92KG
15.6"+11.6": 5.1KG/6.92KG
Environment
Operating temperature: 0°C~40°C
Storage temperature: -15°C～70°C
Storage temperature: -15°C～70°C
Speaker
2 x 2W Speaker (Optional)
Accessories
11.6" Second Display/MSR/Barcode Scanner
Tilt Angle
0 ~ 120 Degree
EMC Safety
CE/FCC/UKCA/RoHS
Dimensions (L*W*H)
15.6" 385mm x 190mm x 305mm
15.6"+11.6" 385 x 190 x 305mm
15.6"+11.6" 385 x 190 x 305mm
Product Model
T5
Display
15.6" TFT LCD Panel
OS
Windows10/11 LTSC/Ubuntu
Processor
Intel® Processor N97 6M Cache, up to 3.60 GHz, Fan-Free
Memory
1 x DDR4, SO-DIMM, 4GB (Max. 32GB)
Storage
1 x m.2 2280 128GB (256GB/512GB Optional), NVME/SATA Adaptive
Resolution
1920 x 1080 (1366 x 768 Optional)
Network
1 x LAN (10/100/1000Mb)
WIFI/BT
M.2 Key-E Slot 2230 WiFi2.4-5G/BT4.0 (Optional)
Wall Mount
VESA 100 x 100mm
Power Adaptor
External Power Adapter, 12V-5A/60W
Ports
3 x USB 3.0 + 3 x USB 2.0
2 x RJ48
1 x HDMI
1 x LAN (10/100/1000Mb)
1 x Mic-in/Speaker-out (Combo Jack)
1 x RJ11, 12V&24V
1 x DC In (4PIN)
1 x DC12V-Max. 2A
1 x Power Switch
2 x RJ48
1 x HDMI
1 x LAN (10/100/1000Mb)
1 x Mic-in/Speaker-out (Combo Jack)
1 x RJ11, 12V&24V
1 x DC In (4PIN)
1 x DC12V-Max. 2A
1 x Power Switch
Weight
15.6": 3.5KG/5.4KG
15.6"+11.6": 5.1KG/6.92KG
15.6"+11.6": 5.1KG/6.92KG
Environment
Operating temperature: 0°C~40°C
Storage temperature: -15°C～70°C
Storage temperature: -15°C～70°C
Speaker
2 x 2W Speaker (Optional)
Accessories
11.6" Second Display/MSR/Barcode Scanner
Tilt Angle
0 ~ 120 Degree
EMC Safety
CE/FCC/UKCA/RoHS
Dimensions (L*W*H)
15.6" 385mm x 190mm x 305mm
15.6"+11.6" 385mm x 190mm x 305mm
15.6"+11.6" 385mm x 190mm x 305mm
Product Model
T5
Display
15.6" TFT LCD Panel
OS
Windows10/11 LTSC/Ubuntu
Processor
Intel® Core™ i3-1115G4 Processor
6M Cache, up to 4.10 GHz, Fan-free
Memory
1 x DDR4, SO-DIMM, 4GB (Max. 32GB)
Storage
1 x m.2 2280 128GB
(256GB/512GB Optional)
Resolution
1920 x 1080 (1366 x 768 Optional)
Network
1 x LAN (10/100/1000Mb)
WIFI/BT
mPCI-E WiFi2.4-5G/BT4.2 (Optional)
Wall Mount
VESA 100 x 100mm
Power Adaptor
External Power Adapter, 12V-7A/84W
Ports
4 x USB 3.0 + 2 x USB 2.0
2 x Serial Port (RJ50)
1 x HDMI
1 x LAN (10/100/1000Mb)
1 x Mic-in/Speaker-out (Combo Jack)
1 x DC In (4PIN)
1 x DC12V-Max. 2A
1 x Power Switch
2 x Serial Port (RJ50)
1 x HDMI
1 x LAN (10/100/1000Mb)
1 x Mic-in/Speaker-out (Combo Jack)
1 x DC In (4PIN)
1 x DC12V-Max. 2A
1 x Power Switch
Weight
15.6": 3.5KG/5.4KG
15.6"+11.6": 5.1KG/6.92KG
15.6"+11.6": 5.1KG/6.92KG
Environment
Operating temperature: 0°C~40°C
Storage temperature: -15°C～70°C
Storage temperature: -15°C～70°C
Speaker
2 x 2W Speaker (Optional)
Accessories
11.6" second display/MSR/Barcode Scanner
Tilt Angle
0 ~ 120 Degree
EMC Safety
CE/FCC/UKCA/RoHS
Dimensions (L*W*H)
15.6" 385mm x 190mm x 305
15.6"+11.6" 385mm x 190mm x 305mm
15.6"+11.6" 385mm x 190mm x 305mm
