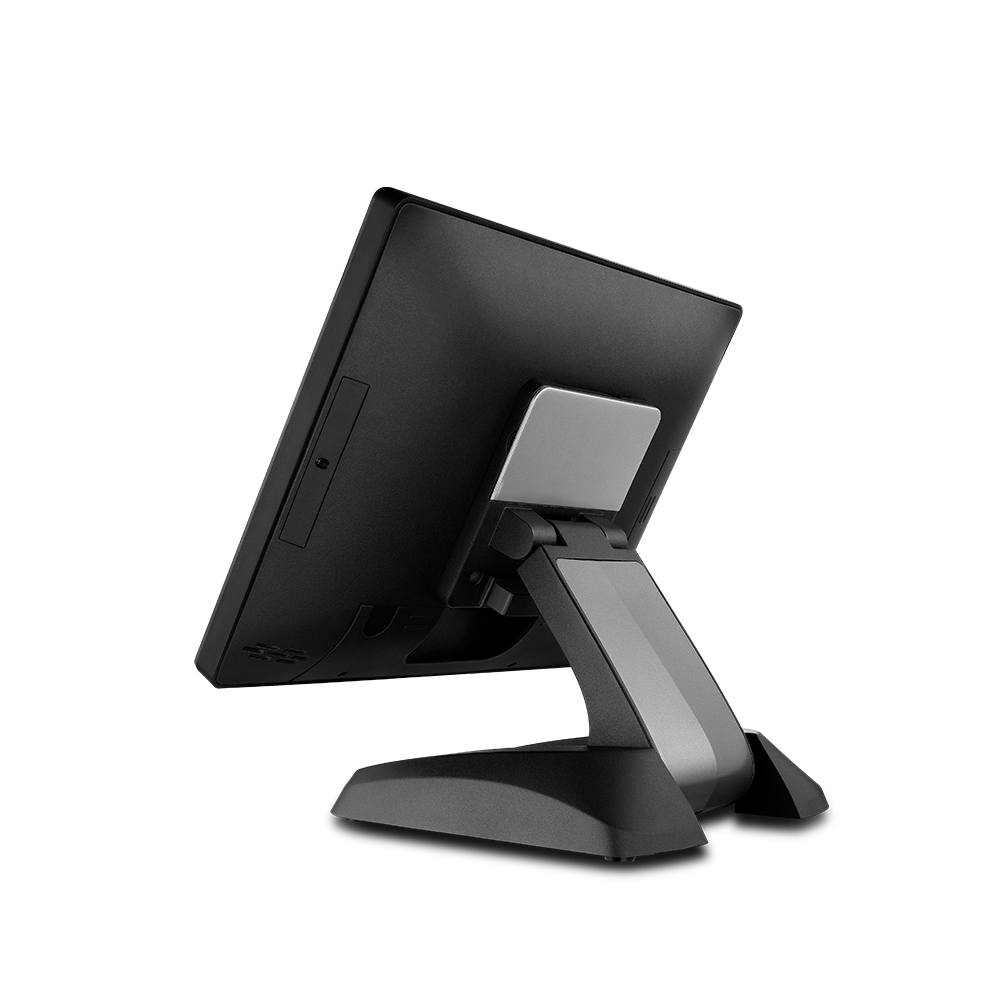

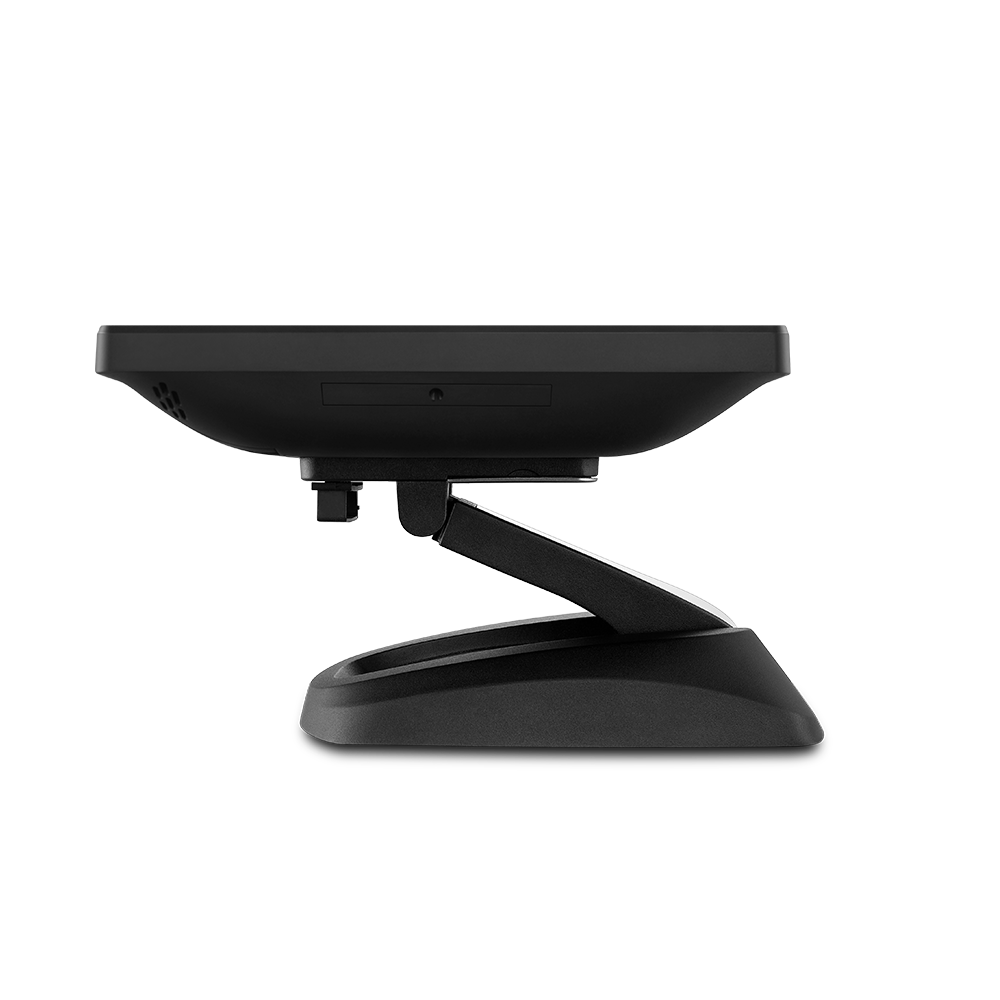

Foldable Design

Space-efficient | Flexible

The foldable design allows the Z3 POS to be adjusted to various angles, providing optimal visibility and comfort for both users and customers.

Fan-free Design

Smooth and Efficient Operation

Equipped with high-performance Intel® J6412, i3, or i5 11th/12th generation CPUs, this POS system delivers exceptional processing power, ensuring smooth and efficient operation for demanding business environments.

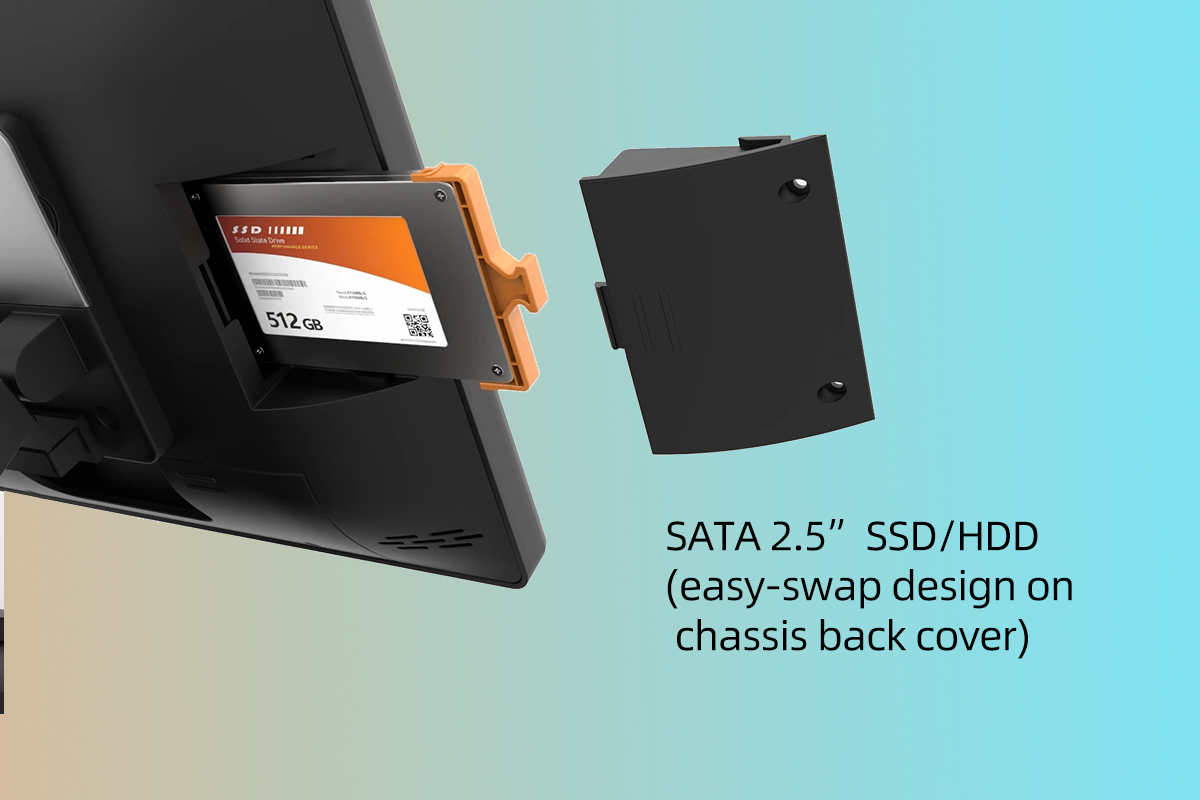

Easy-Swap SSD

The easy-swap SSD allows for hassle-free upgrades and maintenance. In retail, hospitality, or restaurant settings, where downtime is critical, this feature enables quick data replacement or storage upgrades without the need for technical expertise.

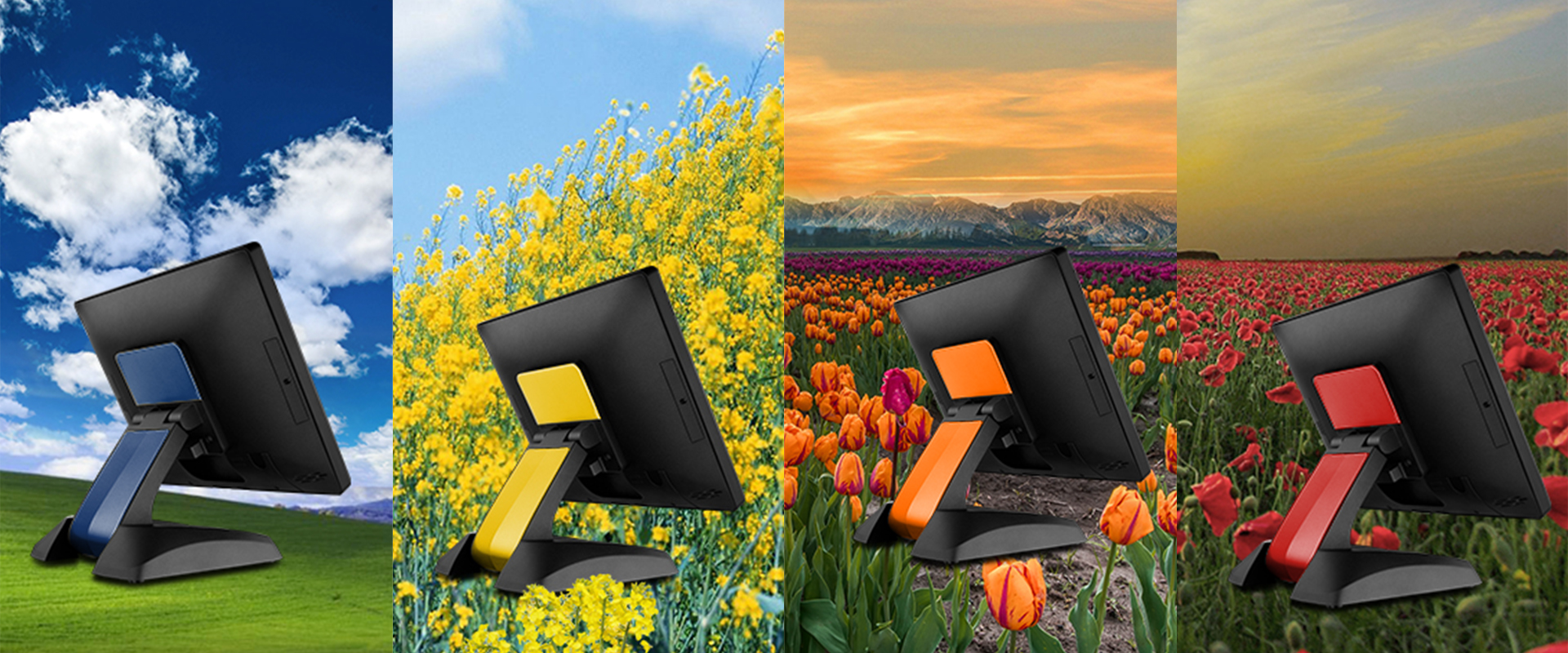

Colorful Customized Cover

Allows personalized customization to match their brand identity.

Connectivity for Accessories

Rich l/O interface that extends connectivity from the display to your accessories.

Z3 Tech Specs

Product Model

Z3

Display

15" TFT LCD Panel

Os

Windows10/11 LTSC/Ubuntu

Processor

Intel Elkhart Lake j6412 2.0GHz (Up to 2.6GHz,1.5MB Cache), Fan-Free

Memory

1 x DDR4, SO-DIMM, 4GB (Max. 32GB)

Storage

1x 2.5” SATA SSD 128GB (64G/256G Optional )/1x mSATA-SSD (Optional)

Resolution

1024*768

Network

1 x LAN (10/100/1000Mb)

WIFI/BT

mPCI-E WiFi/BT

Wall Mount

VESA 100 x 100mm

Power Adaptor

External Power Adapter, 12V-5A/60W

Ports

4 x USB 3.0 + 2 x USB 2.0
3 x Serial Port (RJ50)
1 x VGA
1 x LAN (10/100/1000Mb)
1 x Mic-In/Speaker-out (Combo Jack)
1 x RJ11, 12V&24V
1 x DC In
(4PIN)
1 x Power Switch

N.W./G.W.

15": 5.2Kg / 7.3KG

15"+11.6": 6.7KG/8.8KG

Environment

Operating temperature: 0°C~40°C
Storage temperature: -15°C~70°C

Speaker

2 x 2W Speaker (Optional)

Accessories

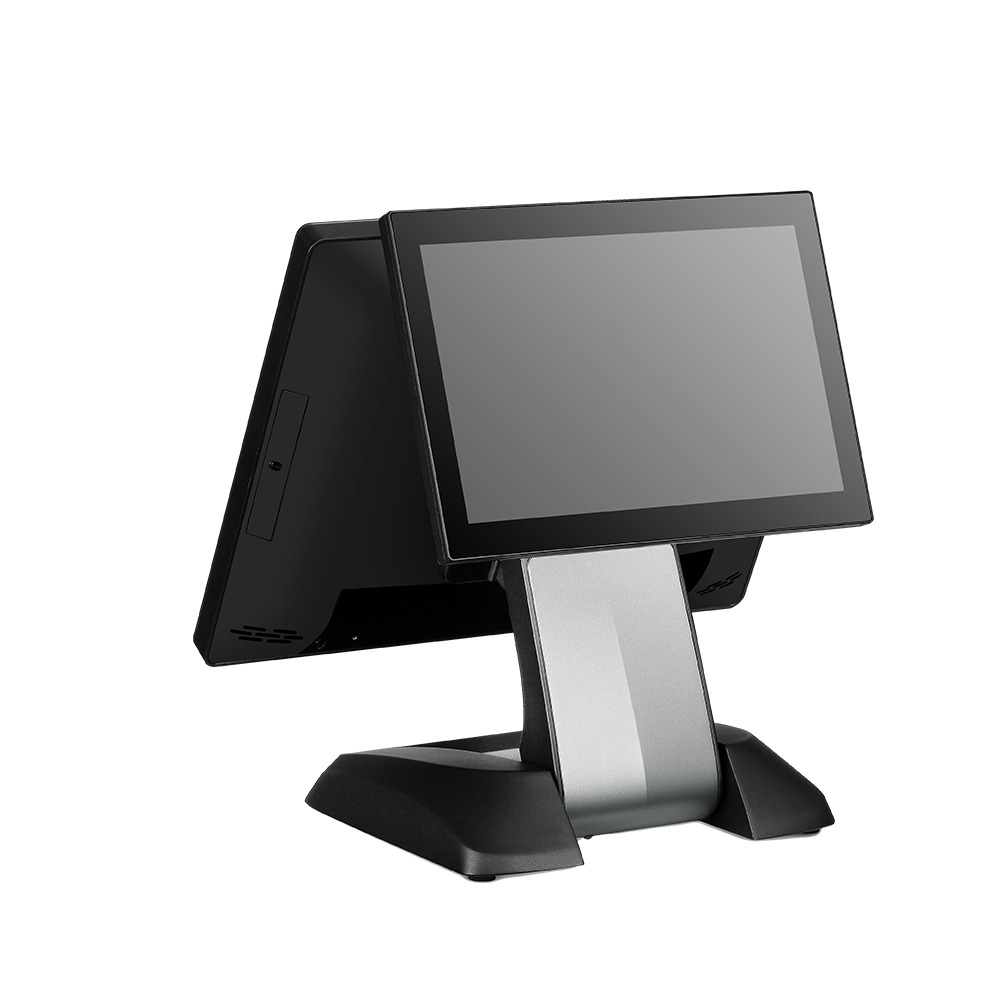

11.6" Second Display/MSR/Barcode Scanner

Tilt Angle

0 ~ 120 Degree

EMC Safety

CE/FCC/UKCA/RoHS

Dimensions (L*W*H)

15" 360 x 190 x 320mm
15"+11.6" 360 x 190 x 394mm

Product Model

Z3

Display

15" TFT LCD Panel

OS

Windows10/11 LTSC/Ubuntu

Processor

i3 1115G4 3.0GHz (Up to 4.1GHz,6MB Cache), Fan-Free

i5 1135G7 2.4GHz (Up to 4.2GHz,8MB Cache), Fan-Free

Memory

1 x DDR4, SO-DIMM, 4GB (Max. 32GB)

Storage

1x SSD, 2242 128GB (64G/256G Optional )

Resolution

1024*768

Network

1 x LAN (10/100/1000Mb)

WIFI/BT

WIFI/BT (WiFi2.4-5G/BT4.2 Optional)

Wall Mount

VESA 100 x 100mm

Power Adaptor

External Power Adapter, 24V-4A/96W

Ports

USB*6+Serial Port*1+HDMI*1+LAN*1 +RJ11*1+DC In*1 +DC12V*1+Power Switch*1

Weight

15": 5.2Kg / 7.3KG

15"+11.6": 6.7KG/8.8KG

Environment

Operating temperature: 0°C~40°C

Storage temperature: -15°C~70°C

Speaker

2 x 2W Speaker (Optional)

Accessories

11.6" Second Display/MSR/Barcode Scanner

Tilt Angle

0 ~ 120 Degree

EMC Safety

CE/FCC/UKCA/RoHS

Dimensions (L*W*H)

15" 360 x 190 x 320mm
15"+11.6" 360 x 190 x 394mm

Product Model

Z3

Display

15" TFT LCD Panel

OS

Windows10/11 LTSC/Ubuntu

Processor

i3 1235U 2.4GHz (Up to 4.4GHz,12MB Cache), Fan-free

i5 1235U 2.4GHz (Up to 4.4GHz,12MB Cache), Fan-free

Memory

1 x DDR5, SO-DIMM, 4GB (Max. 32GB)

Storage

1x SSD, 2242 128GB (64G/256G Optional )

Resolution

1024*768

Network

1 x LAN (10/100/1000Mb)

WIFI/BT

mPCI-E WiFi/BT

Wall Mount

VESA 100 x 100mm

Power Adaptor

External Power Adapter, 24V-4A/96W

Ports

USB*6+Serial Port*1+HDMI*1+LAN*1+RJ11*1+DC In*1 +DC12V*1+Power Switch*1

Weight

15": 5.2Kg / 7.3KG

15"+11.6": 6.7KG/8.8KG

Environment

Operating temperature: 0°C~40°C

Storage temperature: -15°C~70°C

Speaker

2 x 2W Speaker (Optional)

Accessories

11.6" second display/MSR/Barcode Scanner

Tilt Angle

0 ~ 120 Degree

EMC Safety

CE/FCC/UKCA/RoHS

Dimensions (L*W*H)

15" 360 x 190 x 320mm
15"+11.6" 360 x 190 x 394mm
